Jenn-Air 3600ESC

Model: 3600ESC

Save Part Not Listed?
product name

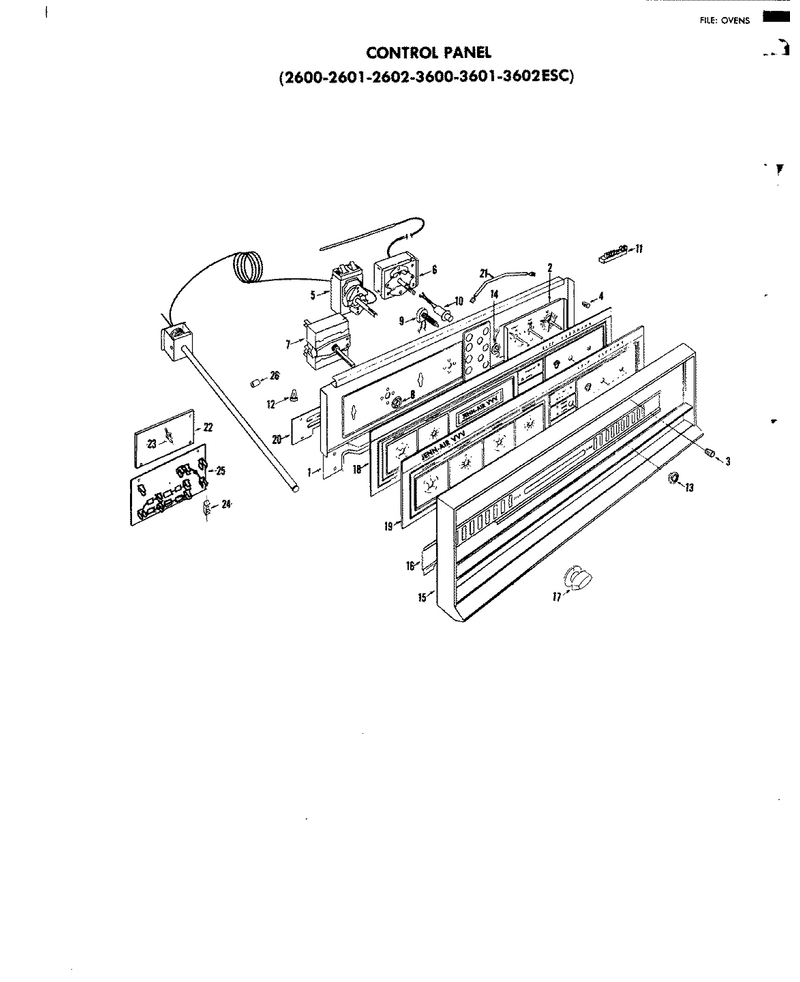

03 - Control Panel

...
...
1
Plate Instrument Mounting WPL-771150
...
2
Clock WPL-771045
...
3
Kit WPL-771127
...
4
Clock Fastener WPL-771080
...
5
Screw WPL-771174
...
6
Thermostat WPL-700064
...
7
Switch, Selector WPL-700126
...
8
Hex Nut WPL-771143
...
9
Switch, Oven Light WPL-771225
...
10
Clean Light WPL-771117
...
11
Screw WPL-771182
...
13
Switch, Bezel WPL-771012
...
14
Ring WPL-771167
...
15
Frame WPL-771247
...
16
Screw WPL-700068
...
17
Knob WPL-771130
...
19
Glass, Control Panel WPL-700070
...
20
Wire Shield WPL-771203
...
21
Resistor WPL-771160
...
22
Plate WPL-771152
...
23
Gasket- Do WPL-WP70048-2
...
24
Resistor WPL-771162
...
25
Plate, Mtg WPL-700078
...
26
Cover-Screw Tip WPL-771060

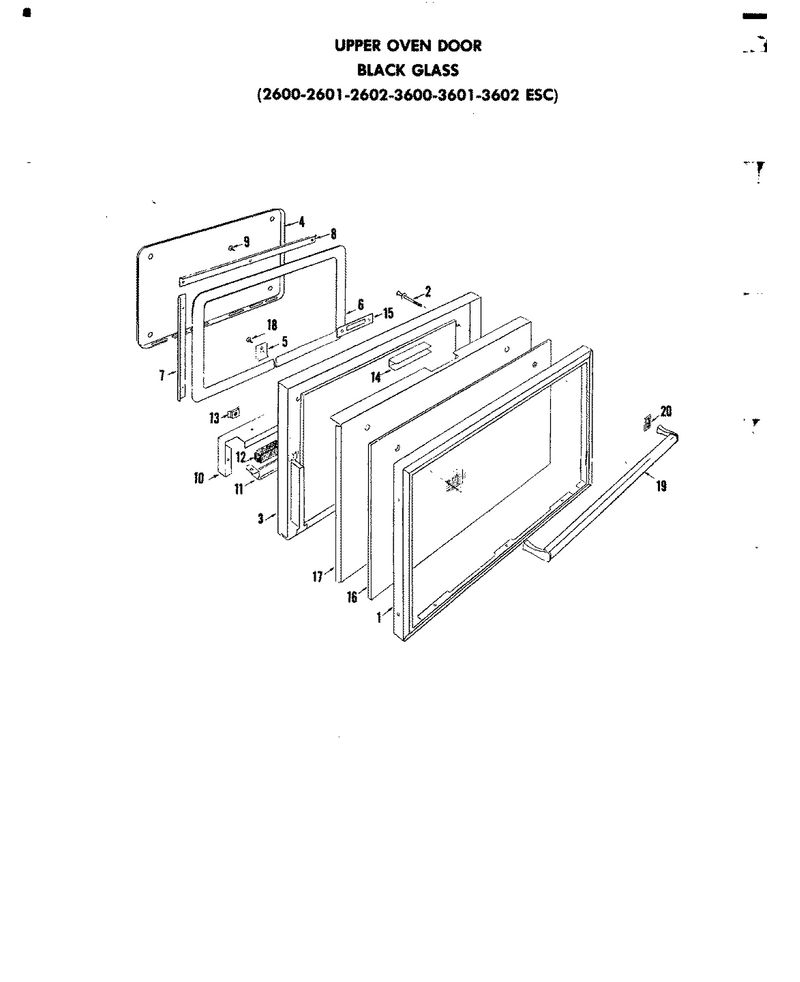

05 - Door (upper)

...
...
1
Trim-Door WPL-771246
...
2
Screw WPL-771171
...
3
Liner-Door WPL-771134
...
4
Shield-Liner WPL-771135
...
5
Cover-Door Seal Ends WPL-771059
...
6
Seal Door WPL-771200
...
7
Channel WPL-771037
...
8
Angle-Seal WPL-771001
...
9
Screw WPL-7101P345-60
...
10
Shield-Wool WPL-771208
...
11
Bracket-Screen WPL-771020
...
12
Screen-Flame Arrester WPL-771170
...
13
Fastener WPL-771082
...
14
Channel Reinforcement WPL-771038
...
15
Plate-Striker WPL-771151
...
16
Glass WPL-771102
...
17
Insulation WPL-771123
...
18
Screw WPL-771186
...
19
Handle WPL-771111
...
20
Plate Instrument Mounting WPL-771150

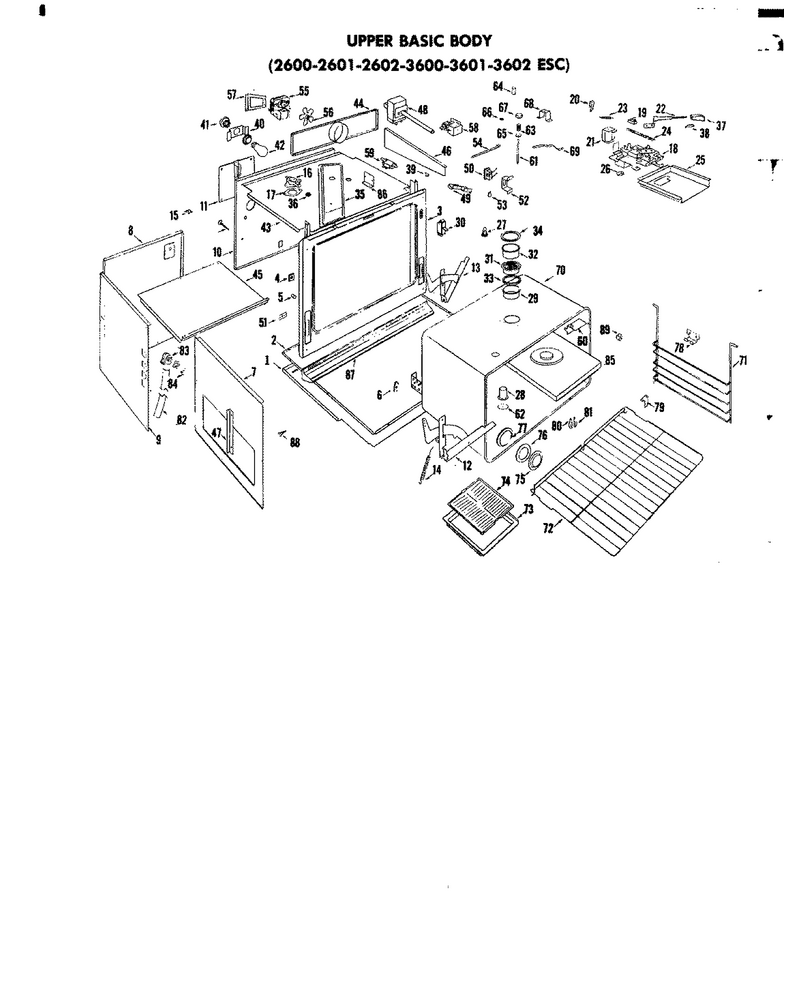

02 - Body (upper)

...
...
2
Base-Main (Inner) WPL-771009
...
3
Front-Main WPL-771092
...
4
Spacer-Front Frame WPL-771213
...
5
Grommet WPL-771109
...
6
Screw WPL-W11233072
...
7
Wrapper-Side (Inner) WPL-771263
...
8
Wrapper WPL-771260
...
9
Wrapper WPL-771264
...
10
Screw WPL-W11233072
...
11
Cover WPL-771061
...
12
Oven Cam Door WPL-700485
...
13
Screw WPL-W11233072
...
14
Spring-Door (L&r) WPL-771222
...
15
Clip Thermo Bulb WPL-700101
...
16
Screw WPL-771184
...
17
Gasket WPL-771099
...
18
Latch-Door WPL-771132
...
19
Screw WPL-771191
...
20
Handle-Solenoid Release WPL-771113
...
21
Screw WPL-771194
...
22
Screw WPL-WP7101P072-60
...
23
Spring WPL-771220
...
24
Spring Door Latch WPL-771219
...
25
Screw WPL-W11233072
...
26
Wire Clip WPL-700112
...
27
Sleeve WPL-WPA0317601
...
28
Tube WPL-771254
...
29
Tube WPL-771256
...
30
Switch WPL-771235
...
31
Filter WPL-771091
...
32
Tube-Oven Light WPL-771255
...
33
Gasket WPL-771098
...
34
Gasket WPL-771100
...
35
Duct WPL-771069
...
36
Nut WPL-707123
...
37
Knob WPL-771128
...
38
Clip-Spring (Door Latch) WPL-771043
...
39
Fastener WPL-771081
...
40
Screw WPL-W11233072
...
41
Socket-Oven Light WPL-771210
...
42
Light Bulb WPL-8009
...
43
Shield WPL-771205
...
44
Cover-Instrument WPL-771058
...
45
Cover Instrument (Top) WPL-771057
...
46
Baffle-Top(R.h.) WPL-771005
...
47
Baffle WPL-771006
...
48
Thermostat WPL-771242
...
49
Screw WPL-W11233072
...
50
Outlet WPL-771146
...
51
Insulation WPL-771121
...
52
Bracket WPL-771021
...
53
Clamp-Purselock WPL-771041
...
54
Fastener WPL-771083
...
55
Motor WPL-771140
...
56
Blade WPL-771074
...
57
Screw WPL-W11233072
...
58
Relay WPL-771157
...
59
Screw WPL-700118
...
60
Spacer-Vent Tube WPL-771214
...
61
Rod-Vent WPL-771168
...
62
Cover-Vent WPL-771062
...
63
Spring-Vent Closing WPL-771221
...
64
Bushing WPL-771027
...
65
Washer WPL-771257
...
66
Retainer-Ring Clip WPL-771164
...
67
Cap, Vent Rod WPL-771036
...
68
Bracket-Vent WPL-771024
...
69
Bracket, Vent Actuator WPL-771025
...
70
Liner Wrap WPL-700159
...
72
Rack-Oven WPL-771156
...
73
Pan Broiler WPL-771148
...
74
Insert WPL-771119
...
75
Collar-Lens WPL-771046
...
76
Gasket WPL-771096
...
77
Glass WPL-771105
...
78
Bracket WPL-771018
...
79
Bracket WPL-771016
...
80
Shield WPL-771206
...
81
Shield WPL-771207
...
82
Conduit WPL-771049
...
83
Clamp WPL-771042
...
84
Insulator-Bushing WPL-771126
...
86
Screw WPL-771197
...
87
Trim-Oven Vent WPL-771248
...
88
Screw WPL-771177
...
90
Screw WPL-771183

04 - Door (lower)

...
...
1
Trim-Door WPL-771246
...
2
Screw WPL-771171
...
3
Liner, Door WPL-700127
...
4
Glass WPL-771102
...
5
Glass-Inner WPL-700080
...
6
Spacer (Horizontal) WPL-700081
...
7
Spacer (Horizontal Lower) WPL-700082
...
8
Spacer (Vertical) WPL-700083
...
9
Seal WPL-700084
...
10
Screw WPL-771186
...
11
Handle WPL-771111
...
12
Spacer-Handle WPL-771216

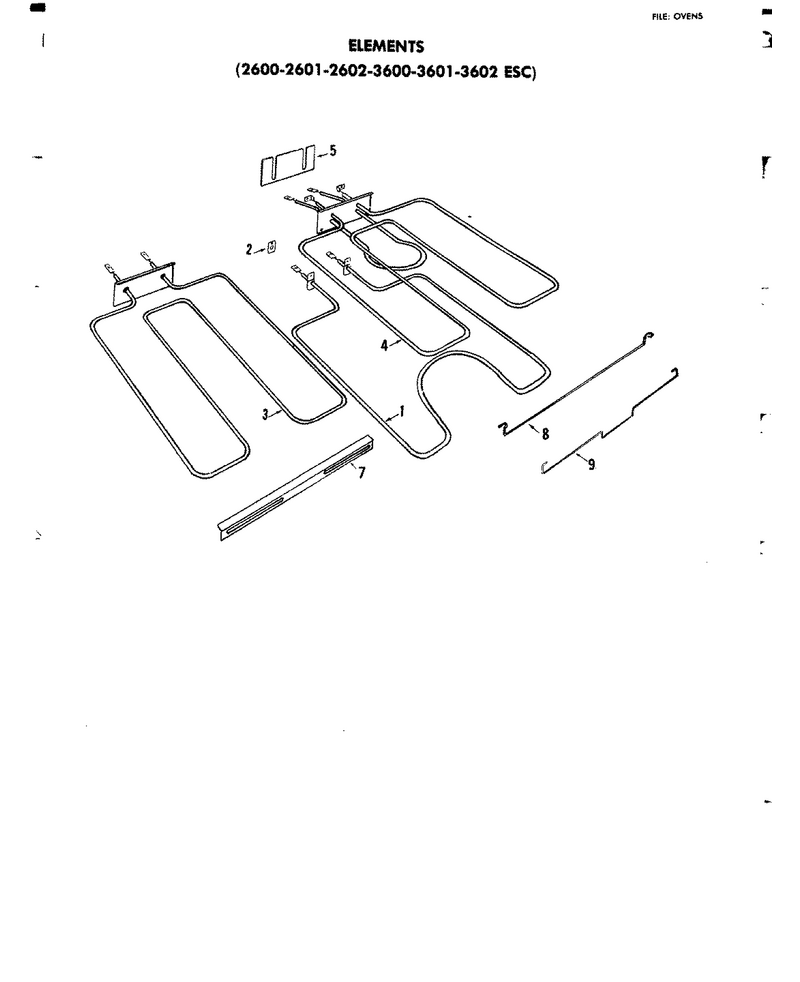

06 - Elements

...
...
1
Element WPL-771073
...
2
Gasket-Bake Element WPL-771095
...
3
Element, Broil WPL-Y700129
...
4
Element WPL-771071
...
5
Screw WPL-771196
...
7
Support WPL-771223
...
8
Support WPL-771224
...
9
Support-Broil Element WPL-700133

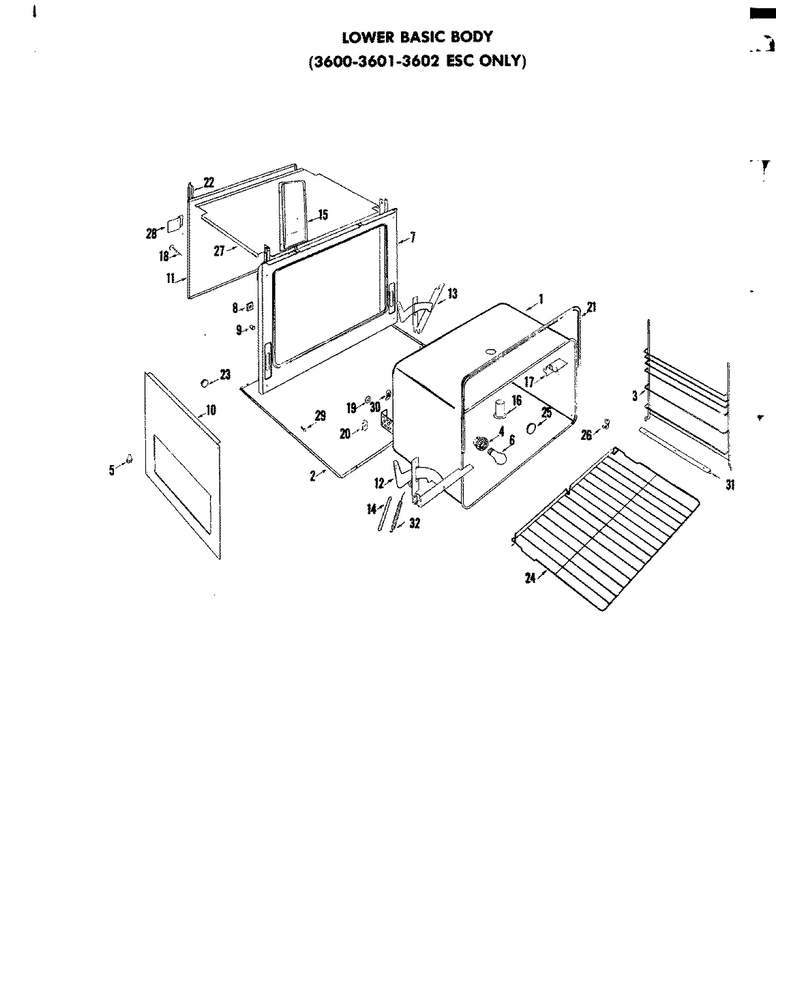

01 - Body (lower)

...
...
1
Brn Liner WPL-700088
...
2
Base-Main (Inner) WPL-771009
...
3
Guide, Oven Rack WPL-700089
...
4
Socket-Oven Light WPL-771210
...
5
Sleeve WPL-WPA0317601
...
6
Light Bulb WPL-8009
...
7
Main Front WPL-700091
...
8
Spacer-Front Frame WPL-771213
...
9
Grommet WPL-771109
...
10
Wrapper-Side (Inner) WPL-771263
...
11
Screw WPL-W11233072
...
12
Cam Door (L.h.) WPL-771033
...
13
Screw WPL-W11233072
...
14
Bracket WPL-771019
...
15
Screw WPL-W11233072
...
16
Tube WPL-771254
...
17
Spacer-Vent Tube WPL-771214
...
18
Screw WPL-771176
...
19
Washer WPL-771257
...
20
Fastener WPL-771081
...
21
Seal, Oven Door WPL-700095
...
22
Insulation WPL-700097
...
23
Button, Plug WPL-700099
...
24
Rack-Oven WPL-771156
...
25
Button, Plug WPL-700100
...
26
Clip Thermo Bulb WPL-700101
...
27
Base0main (Outer) WPL-700120
...
28
Cover, Outlet WPL-700102
...
29
Screw WPL-771176
...
30
Clip WPL-771044
...
31
Angle-Bulb-Shield WPL-700103
...
32
Spring-Door (L&r) WPL-771222
