Jenn-Air 2775ELD

Model: 2775ELD

Save Part Not Listed?
product name

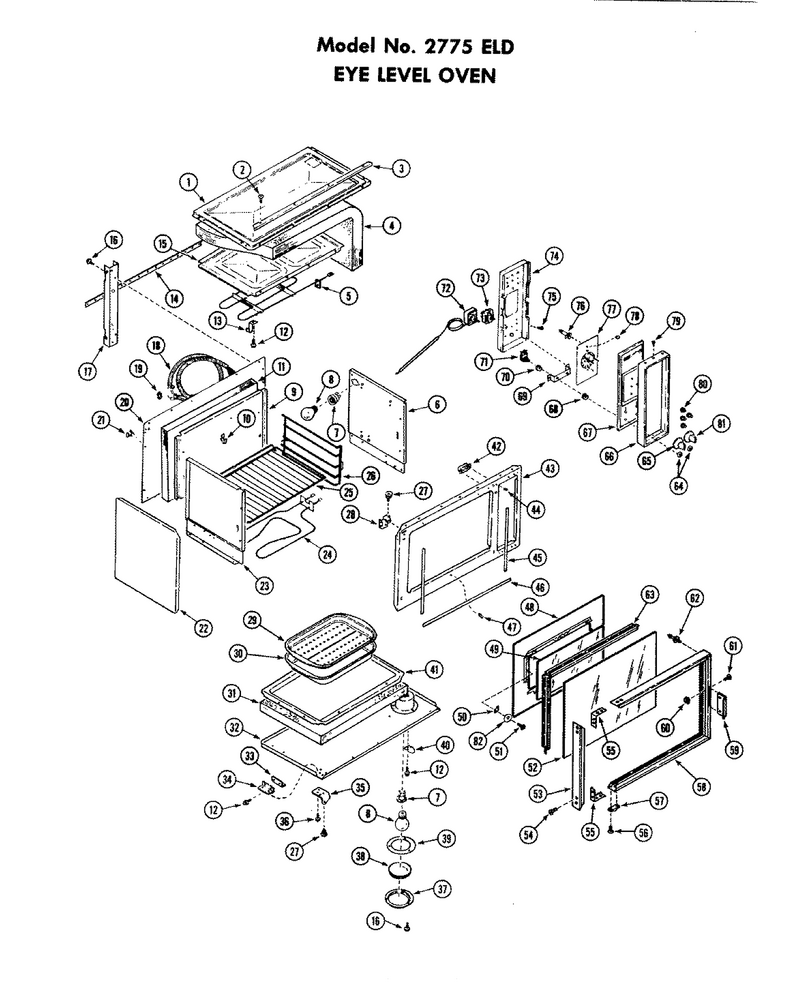

01 - Eye Level Oven

...
...
1
Oven Cabinet Top WPL-770431
...
2
Wall Bracket WPL-770115
...
3
Top Front Trim WPL-770116
...
4
Insulation WPL-770117
...
5
Element, Broil WPL-770118
...
6
Right Oven Side WPL-770119
...
7
Lamp Holder WPL-770120
...
8
Light Bulb WPL-8009
...
9
Oven Back WPL-770122
...
10
Clip- Ther WPL-WP7112P004-60
...
11
Insulation WPL-770124
...
12
Screw WPL-WP489483
...
13
Support Bracket WPL-Y708585
...
14
Hanger Plate WPL-770015
...
15
Oven Top WPL-770127
...
16
Screw WPL-WP489483
...
17
Rear Cabinet Bracket WPL-770433
...
18
Harness Assembly WPL-770434
...
19
Conduit Nut WPL-770131
...
20
Wire Cover WPL-770132
...
21
Retaining Clip WPL-770418
...
22
Body Sides WPL-770432
...
23
Left Oven Side WPL-770135
...
24
Bake Element WPL-770136
...
25
Oven Rack WPL-770137
...
26
Right Oven Rack Guide WPL-770138
...
27
Hinge Pin WPL-770140
...
28
Upper Door Hinge WPL-770141
...
29
Procelain Broiler (Pan And Grid) WPL-4396923
...
30
Broiler Pan WPL-770421
...
31
Bottom Insulation WPL-770144
...
32
Door Hinge Gussett-(Right) WPL-770146
...
33
Door Hinge Gussett-(Right) WPL-770146
...
34
Door Hinge Gussett (Left) WPL-770147
...
35
Lower Door Hinge WPL-770148
...
36
Screw WPL-770149
...
37
Lens Retainer WPL-770150
...
38
Light Lens WPL-770151
...
39
Lens Gasket WPL-770152
...
40
Door Support WPL-770153
...
41
Oven Bottom WPL-770154
...
42
Door Catch WPL-770155
...
43
Front Frame WPL-770156
...
44
Screw WPL-770157
...
45
Door Seal Side WPL-770158
...
46
Door Seal Bottom WPL-770159
...
47
Seal Clip WPL-770160
...
48
Oven Door Lining WPL-770428
...
49
Inner Door Glass WPL-770430
...
50
Glass Retainer Bracket WPL-770429
...
51
Screw WPL-770424
...
52
Outer Door Glass WPL-770435
...
53
Door Frame End WPL-770164
...
54
Screw WPL-770163
...
55
Door Frame Bracket WPL-770167
...
56
Screw WPL-770165
...
57
Stop WPL-770166
...
58
Door Frame WPL-770169
...
59
Door Handle WPL-770170
...
60
Keps Nut WPL-770168
...
61
Screw WPL-770171
...
62
Door Strike WPL-770427
...
63
Door Glass Spacer WPL-770161
...
64
Trim Nut WPL-770175
...
65
Thermostat Knob WPL-770176
...
66
Control Panel Frame WPL-770177
...
67
Control Panel Glass WPL-770178
...
68
Lock Nut WPL-770179
...
69
Switch Mounting Bracket WPL-770180
...
70
Check Nut WPL-770181
...
71
Push Switch WPL-770425
...
72
Thermostat WPL-770183
...
73
Select Switch WPL-770426
...
74
Control Mounting Panel WPL-770185
...
75
Screw WPL-770186
...
76
Indicator Light WPL-770187
...
77
Clock WPL-770188
...
78
Indicator Lens WPL-770419
...
79
Screw 10-32 WPL-770420
...
80
Knob- Cloc WPL-WP7711P466-60
...
81
Selector Switch Knob WPL-770192
...
82
Flat Washer WPL-770436
