Jenn-Air 2770ELD

Model: 2770ELD

Save Part Not Listed?
product name

Popular Parts

Popular Parts

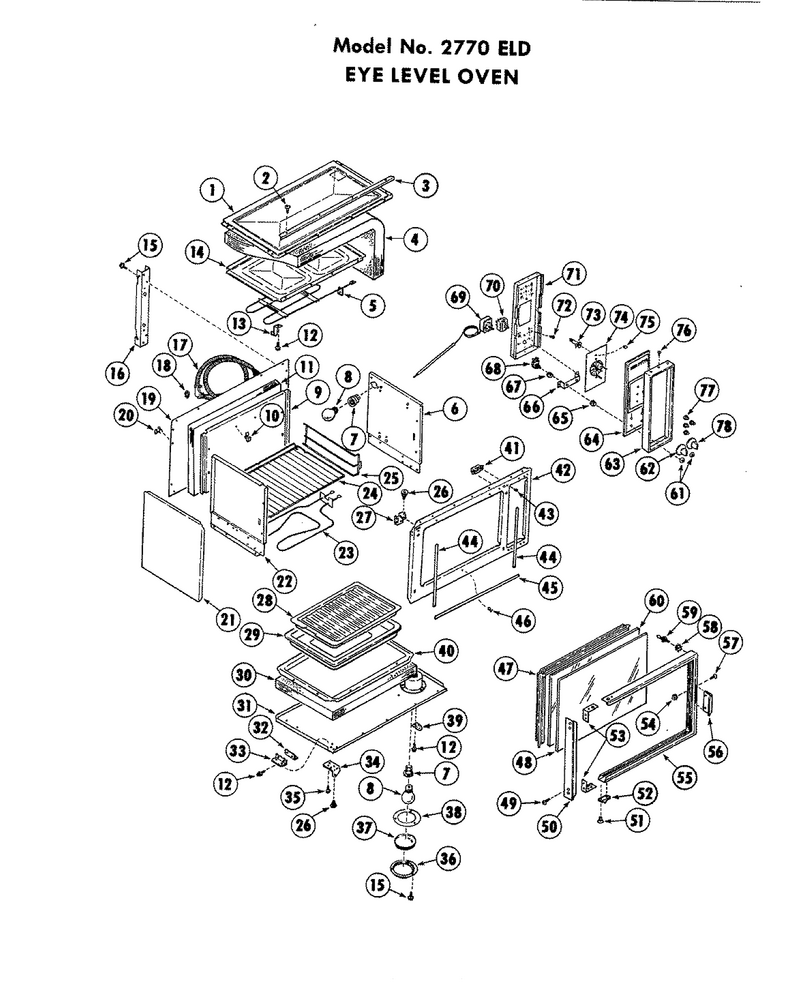

01 - Eye Level Oven

...
...
1
Cabinet Top WPL-770114
...
2
Wall Bracket WPL-770115
...
3
Top Front Trim WPL-770116
...
4
Insulation WPL-770117
...
5
Element, Broil WPL-770118
...
6
Right Oven Side WPL-770119
...
7
Lamp Holder WPL-770120
...
8
Light Bulb WPL-8009
...
9
Oven Back WPL-770122
...
10
Clip- Ther WPL-WP7112P004-60
...
11
Insulation WPL-770124
...
12
Screw WPL-WP489483
...
13
Support Bracket WPL-Y708585
...
14
Oven Top WPL-770127
...
15
Screw WPL-WP489483
...
16
Rear Cabinet Bracket WPL-770129
...
17
Wire Harness WPL-770130
...
18
Conduit Nut WPL-770131
...
19
Wire Cover WPL-770132
...
20
Retaining Clip WPL-770133
...
21
Body Side WPL-770134
...
22
Left Oven Side WPL-770135
...
23
Element, Bake 208v WPL-701193
...
24
Oven Rack WPL-770137
...
25
Left Oven Rack Guide WPL-770139
...
26
Hinge Pin WPL-770140
...
27
Upper Door Hinge WPL-770141
...
28
Broil Grid WPL-770142
...
29
Broil Pan WPL-770143
...
30
Bottom Insulation WPL-770144
...
31
Cabinet Bottom WPL-770145
...
32
Door Hinge Gussett-(Right) WPL-770146
...
33
Door Hinge Gussett (Left) WPL-770147
...
34
Lower Door Hinge WPL-770148
...
35
Screw WPL-770149
...
36
Lens Retainer WPL-770150
...
37
Light Lens WPL-770151
...
38
Lens Gasket WPL-770152
...
39
Door Support WPL-770153
...
40
Oven Bottom WPL-770154
...
41
Door Catch WPL-770155
...
42
Front Frame WPL-770156
...
43
Screw WPL-770157
...
44
Door Seal Side WPL-770158
...
45
Door Seal Bottom WPL-770159
...
46
Seal Clip WPL-770160
...
47
Door Glass Spacer WPL-770161
...
48
Outer Door Glass WPL-770162
...
49
Screw WPL-770163
...
50
Door Frame End WPL-770164
...
51
Screw WPL-770165
...
52
Stop WPL-770166
...
53
Door Frame Bracket WPL-770167
...
54
Keps Nut WPL-770168
...
55
Door Frame WPL-770169
...
56
Door Handle WPL-770170
...
57
Screw WPL-770171
...
58
Nut WPL-WP3400029
...
59
Door Strike WPL-770173
...
60
Inner Door Glass WPL-770174
...
61
Trim Nut WPL-770175
...
62
Thermostat Knob WPL-770176
...
63
Control Panel Frame WPL-770177
...
64
Control Panel Glass WPL-770178
...
65
Lock Nut WPL-770179
...
66
Switch Mounting Bracket WPL-770180
...
67
Check Nut WPL-770181
...
68
Switch WPL-770182
...
69
Thermostat WPL-770183
...
70
Selector Switch WPL-770184
...
71
Control Mounting Panel WPL-770185
...
72
Screw WPL-770186
...
73
Indicator Light WPL-770187
...
74
Clock WPL-770188
...
75
Indicator Lens WPL-770189
...
76
Screw WPL-770190
...
77
Knob- Cloc WPL-WP7711P466-60
...
78
Selector Switch Knob WPL-770192
