Jenn-Air 2700EEL

Model: 2700EEL

Save Part Not Listed?
product name

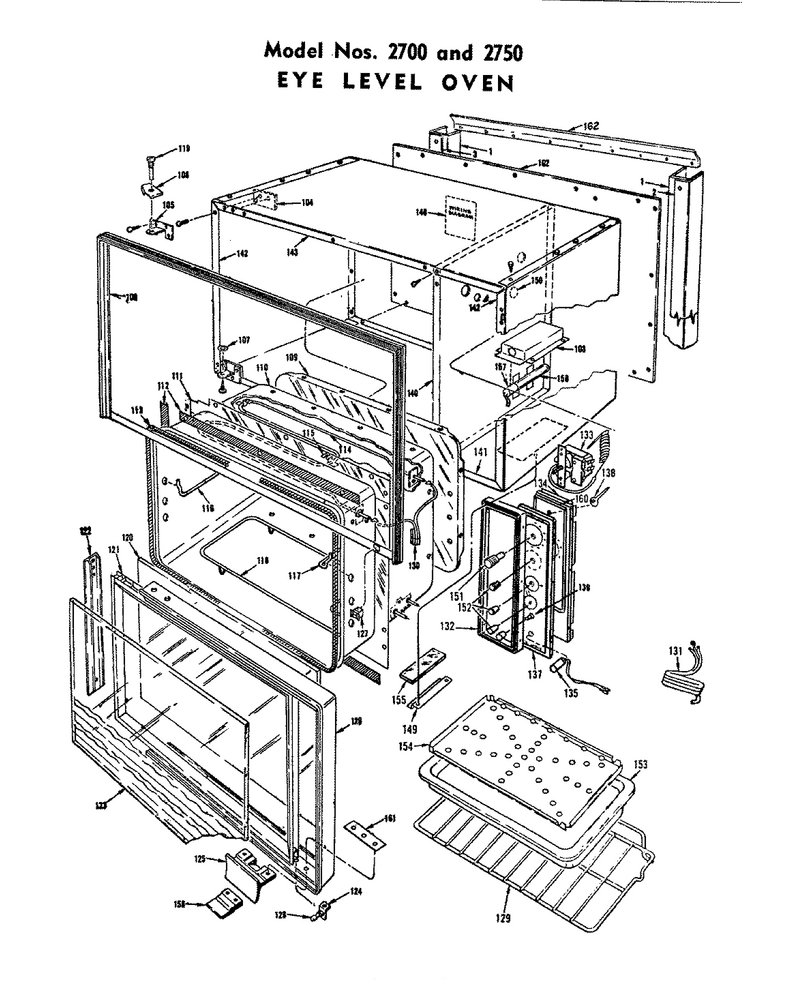

01 - Oven

...
...
1
Rear Post WPL-770032
...
2
Post Overlay WPL-770033
...
3
Post Overlay WPL-770034
...
102
Cabinet Back WPL-770082
...
103
Light Box WPL-770029
...
104
Tapping Plate WPL-770051
...
105
Hinge WPL-770050
...
106
Cabinet Frame WPL-787240
...
107
Gasket Washer WPL-770027
...
108
Door Stop WPL-770039
...
109
Back, Oven WPL-770083
...
110
Wrapper, Oven WPL-770086
...
111
Oven Front WPL-770063
...
112
Molding Insulator WPL-770019
...
113
Door Seal WPL-770058
...
114
Broil Element WPL-770081
...
115
Support Bracket WPL-Y708585
...
116
Glide Lh WPL-770073
...
117
Glide Rh WPL-770072
...
118
Bake Element WPL-770080
...
119
Pin, Hinge WPL-770037
...
120
Inner Glass WPL-770070
...
121
Door Spacer WPL-770014
...
122
Door Frame WPL-770023
...
123
Outer Glass WPL-770087
...
124
Latch Bracket WPL-770052
...
125
Handle, Door WPL-770040
...
126
Frame, Door WPL-770024
...
127
Door Catch WPL-770021
...
128
Door Strike WPL-770022
...
129
Rack, Oven WPL-770074
...
130
Harness WPL-770088
...
131
Cable, Supply WPL-770064
...
132
Panel Frame WPL-770089
...
133
Thermostat WPL-770090
...
134
Control Panel WPL-770091
...
135
Pilot Light WPL-770092
...
137
Panel Lens WPL-770093
...
138
Pointer WPL-770055
...
139
Switch Canop WPL-770094
...
140
Partition WPL-770095
...
141
Cabinet Bottom WPL-770048
...
142
Cabinet End WPL-770046
...
143
Top, Cabinet WPL-770096
...
148
Wire Diagram WPL-770097
...
149
Lens Retainer WPL-770031
...
150
Button, Plug WPL-770036
...
151
Thermostat Knob WPL-770059
...
152
Knob WPL-770060
...
153
Pan, Broil WPL-770078
...
154
Broil Grid WPL-770079
...
155
Lamp Lens WPL-770035
...
156
Bulb, Light WPL-707090
...
157
Lamp Socket WPL-770030
...
158
Door Support WPL-770041
...
160
Clock WPL-770098
...
161
Handle Nut WPL-770026
...
162
Hanger Plate WPL-770015
