Jenn-Air 2650

Model: 2650

Save Part Not Listed?
product name

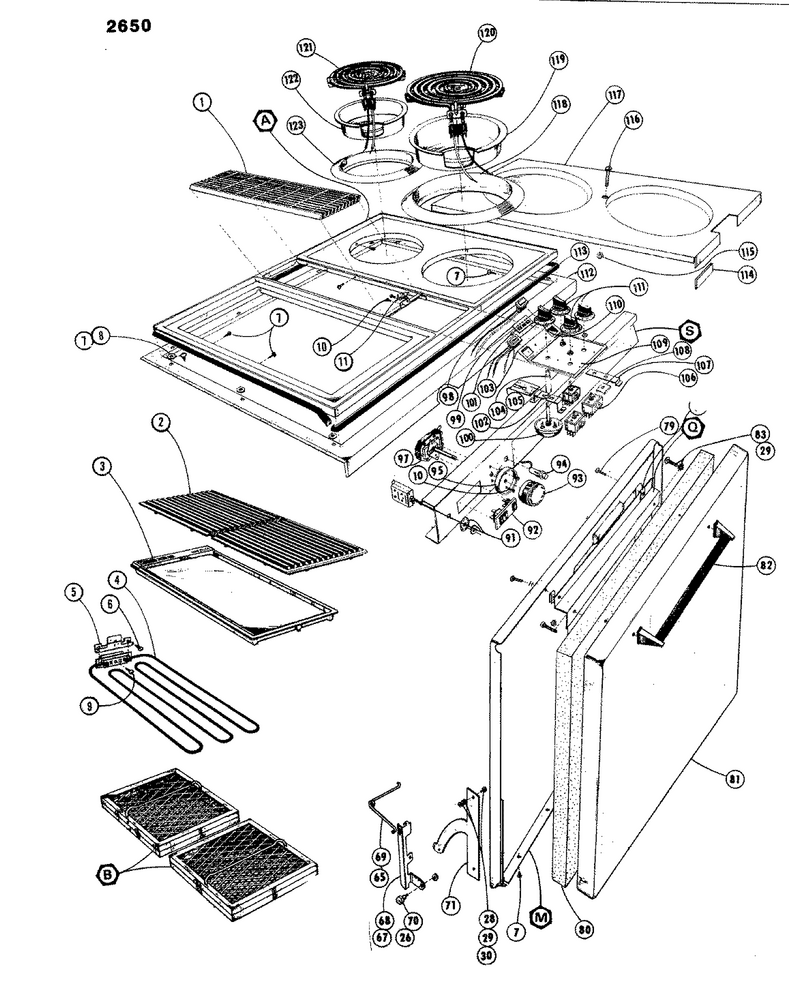

01 - Range/grill/oven Parts List

...
...
1
Air Grill WPL-786710
...
2
Grate WPL-707886
...
3
Griddle WPL-Y707708
...
4
Element, Grill (240v) WPL-Y707709
...
5
Detent Spring WPL-707802
...
6
Screw WPL-707919
...
7
Screw WPL-W11233072
...
8
Motor WPL-676372
...
9
Screw WPL-WP71001171
...
10
Screw, Burner Mtg WPL-7101P286-60
...
11
Nut WPL-707683
...
12
Back Support WPL-708249
...
13
Screw WPL-707349
...
14
Tinnerman WPL-708313
...
15
Cover, Exhauster WPL-708263
...
16
Burner Box Insulator WPL-708264
...
17
Insulator WPL-707867
...
18
Bushing WPL-Y707695
...
19
Washer WPL-Y707664
...
20
Rivet WPL-WP210720
...
21
Screw WPL-WP489128
...
22
Ground Tag WPL-707133
...
23
Spring Bracket WPL-708217
...
24
Spring,broil WPL-708228
...
25
Wire Cover WPL-708266
...
26
Locknut WPL-WPY707702
...
27
Spacer, Nylon WPL-707329
...
28
Screw WPL-WP179051
...
30
Nut - Vent Cover Mounting WPL-70105-3
...
31
Base Plate WPL-70176-1
...
32
Cover, Handy Box WPL-702224
...
33
Gasket WPL-708062
...
34
Isolator Motor WPL-Y707395
...
35
Screw WPL-WP4381696
...
36
Nut WPL-707161
...
37
Band, Motor WPL-3415F003-51
...
38
Wheel-Fan WPL-WPY707985
...
39
Motor-Blwr WPL-707704K
...
40
Screw WPL-707407
...
41
Cap, Connector WPL-707767
...
42
Conduit, Metal WPL-Y705155
...
43
Strip, Foam WPL-708280
...
44
Screw WPL-WP179051
...
45
Air Grill WPL-707714
...
46
Filter- Gr WPL-WP707929
...
47
Grease Box WPL-708232
...
48
Door WPL-708204
...
49
Door Knob WPL-708238
...
50
Screw WPL-WP7101P072-60
...
51
Burner Box Insulation WPL-707911
...
52
Instruction Label WPL-708308
...
53
Cleaning Label WPL-708111
...
54
Serial Plate WPL-708277
...
55
Jar- Drain WPL-WPY707869
...
56
Lid-Jar WPL-WP5700M611-60
...
57
Grommet WPL-707082
...
58
Closure Grommet WPL-708268
...
59
Screw WPL-WP59002061
...
60
Catch, Door WPL-707551
...
61
Hinge Guard WPL-708216
...
62
Side Trim R.h. WPL-708222
...
63
Side Trim L.h. WPL-708327
...
64
Bottom Trim WPL-708328
...
65
Lt Dr Spring WPL-708227
...
66
Bottom Trim WPL-708328
...
67
Bracket Lh WPL-708225
...
68
Bracket Rh WPL-708226
...
69
Spring Ov Dr WPL-708265
...
70
Hinge Pan WPL-708271
...
71
Oven Door Hinge WPL-708224
...
72
Screw WPL-W11084238
...
73
Screw No. 10-32 WPL-708282
...
74
Hex Nut WPL-708279
...
75
Light Bulb WPL-8009
...
76
Oven Light Receptacle WPL-Y708236
...
77
Rivet WPL-WP210720
...
78
Spring Access Door WPL-708205
...
79
Screw WPL-WP7101P126-60
...
80
Insulation, Oven Door WPL-708252
...
81
Door WPL-708206
...
82
Handle WPL-708207
...
83
Screw WPL-W11164114
...
84
Elem 208v WPL-770195
...
85
Seal, Oven Door WPL-707586
...
86
Insulation, Oven Wrap WPL-708250
...
87
Insulation WPL-708253
...
88
Support,rack WPL-708272
...
89
Rack WPL-708235
...
90
Rack Oven WPL-708234
...
91
Breaker, Circuit WPL-Y715443
...
92
Outlet WPL-708231
...
93
Therm Knob WPL-708275
...
94
Pilot Light WPL-708229
...
95
Trim, Knob T-Stat WPL-708305
...
96
Screw WPL-707116
...
97
Thermostat WPL-Y708230
...
98
Light,pilot WPL-Y708286
...
99
Insert, Logo----Na WPL-707686
...
100
Timer WPL-770112
...
101
Palnut WPL-707138
...
102
Bracket WPL-707731
...
103
Fan Switch WPL-12001418
...
104
Collar,timer WPL-708008
...
105
Insulator WPL-707996
...
106
Switch, Infinite WPL-Y707036
...
107
Spring, Escutcheon WPL-707687
...
108
Seal-Swtch WPL-WP3188425
...
109
Sw Escut WPL-708283
...
110
Knob- Time WPL-WPY703663
...
111
Knob- Swit WPL-WPY700854
...
112
Enclosure WPL-708221
...
113
Seal, Top WPL-707591
...
114
Spacer WPL-707840
...
115
Nut Acorn WPL-707835
...
116
Screw WPL-707833
...
117
Insert, Burner Box WPL-Y707822
...
118
Adaptor- R WPL-WPY707453
...
119
Pan, Drip (8``) WPL-707388
...
120
Burner Element 240v WPL-707728
...
121
Burner (6``) WPL-Y707727
...
122
Pan, Drip (6``) WPL-707386
...
123
Adaptor- R WPL-WPY707454
...
124
Top Chrome Satin WPL-786718
...
125
Basket, Char-Rock WPL-786513
...
126
Grill Pan WPL-786672
...
127
Unit Wraparound WPL-786708
...
128
Ring, Gasket (Rear Burner) WPL-3147188
...
129
Electric Pigtail Assembly WPL-786727
...
130
Scroll, Blower Assy. WPL-712008
...
131
Inlet Flange WPL-786719
...
132
Cover, Motor WPL-786720
...
133
Plenum WPL-786706
...
134
Access Door WPL-786726
...
135
Panel WPL-786707
...
136
Oven Liner WPL-786709
...
137
Screw (2) WPL-4314918
...
138
Door Panel Bracket WPL-786716
...
139
Burner Box WPL-786717
...
140
Feature Panel WPL-786704
