Jenn-Air 2601ESC

Model: 2601ESC

Save Part Not Listed?
product name

Popular Parts

Popular Parts

01 - Body (upper)

...
...
1
Base WPL-771010
...
2
Base-Main (Inner) WPL-771009
...
3
Front-Main WPL-771092
...
4
Spacer-Front Frame WPL-771213
...
5
Grommet WPL-771109
...
6
Fastener-Clip WPL-771079
...
7
Wrapper-Side (Inner) WPL-771263
...
8
Wrapper WPL-771260
...
9
Wrapper WPL-771264
...
10
Wrapper WPL-771259
...
11
Screw WPL-W11233072
...
13
Screw WPL-W11233072
...
14
Bracket WPL-771019
...
15
Clip Thermo Bulb WPL-700101
...
16
Switch WPL-771233
...
17
Gasket WPL-771099
...
18
Latch-Door WPL-771132
...
19
Screw WPL-771191
...
20
Handle-Solenoid Release WPL-771113
...
21
Screw WPL-771194
...
22
Handle-Latching Mechanism WPL-771112
...
23
Spring WPL-771220
...
24
Spring Door Latch WPL-771219
...
25
Box-Latch Mechanism WPL-771013
...
26
Wire Clip WPL-700112
...
27
Sleeve WPL-WPA0317601
...
28
Tube WPL-771254
...
29
Tube WPL-771256
...
30
Switch WPL-771235
...
31
Filter WPL-771091
...
32
Tube-Oven Light WPL-771255
...
33
Gasket WPL-771098
...
34
Gasket WPL-771100
...
35
Screw WPL-771172
...
36
Nut WPL-707123
...
37
Knob WPL-771128
...
38
Screw WPL-771176
...
39
Fastener WPL-771081
...
40
Bracket-Oven Light WPL-771015
...
41
Socket-Oven Light WPL-771210
...
42
Light Bulb WPL-8009
...
43
Shield WPL-771205
...
44
Cover-Instrument WPL-771058
...
45
Cover Instrument (Top) WPL-771057
...
46
Baffle-Top(L.h.) WPL-771004
...
47
Screw WPL-W11233072
...
48
Screw WPL-W11233072
...
49
Screw WPL-W11233072
...
50
Outlet WPL-771146
...
51
Insulation WPL-771122
...
52
Bracket WPL-771021
...
53
Clamp-Purselock WPL-771041
...
55
Motor WPL-771140
...
56
Blade WPL-771074
...
57
Nut K WPL-M0282005
...
58
Screw WPL-771189
...
59
Switch Fan Safety WPL-771230
...
60
Spacer-Vent Tube WPL-771214
...
61
Rod-Vent WPL-771168
...
62
Cover-Vent WPL-771062
...
63
Spring-Vent Closing WPL-771221
...
64
Bushing WPL-771027
...
65
Washer WPL-771257
...
66
Retainer-Ring Clip WPL-771164
...
67
Cap, Vent Rod WPL-771036
...
68
Bracket-Vent WPL-771024
...
69
Bracket, Vent Actuator WPL-771025
...
70
Liner Wrap WPL-700159
...
71
Guide WPL-700160
...
72
Rack-Oven WPL-771156
...
73
Pan, Broil WPL-700161
...
74
Insert-Broiler Pan WPL-700162
...
75
Collar-Lens WPL-771046
...
76
Gasket WPL-771096
...
77
Glass WPL-771105
...
79
Bracket WPL-771016
...
80
Shield WPL-771206
...
81
Shield WPL-771207
...
82
Conduit WPL-771049
...
83
Clamp WPL-771042
...
84
Insulator-Bushing WPL-771126
...
85
Shield WPL-771204
...
86
Screw WPL-771197
...
87
Trim-Oven Vent WPL-771248
...
88
Screw WPL-771177
...
90
Screw WPL-771183

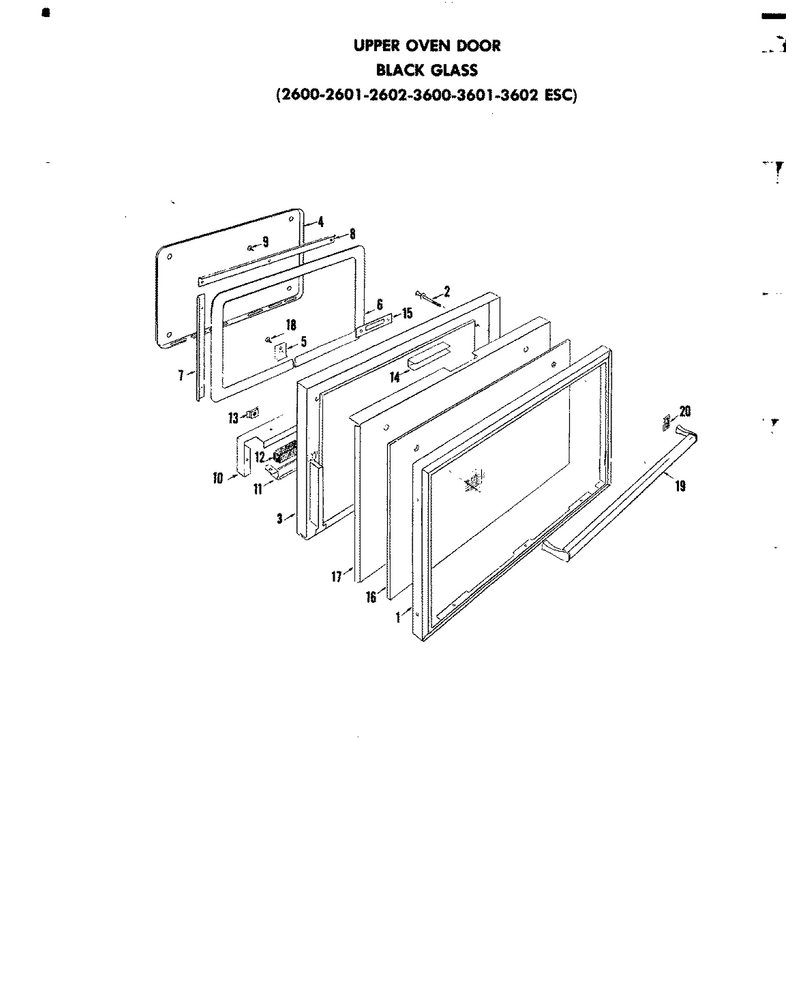

03 - Door (upper)

...
...
1
Trim-Door WPL-771246
...
2
Screw WPL-771171
...
3
Liner-Door WPL-771134
...
4
Shield-Liner WPL-771135
...
5
Cover-Door Seal Ends WPL-771059
...
6
Seal Door WPL-771200
...
7
Channel WPL-771037
...
8
Angle-Seal WPL-771001
...
9
Screw WPL-7101P345-60
...
10
Shield-Wool WPL-771208
...
11
Bracket-Screen WPL-771020
...
12
Screen-Flame Arrester WPL-771170
...
13
Screw WPL-771173
...
14
Channel Reinforcement WPL-771038
...
15
Plate-Striker WPL-771151
...
16
Glass WPL-771102
...
17
Spacer-Glass WPL-771215
...
18
Screw WPL-771186
...
19
Handle WPL-771111
...
20
Spacer-Handle WPL-771216

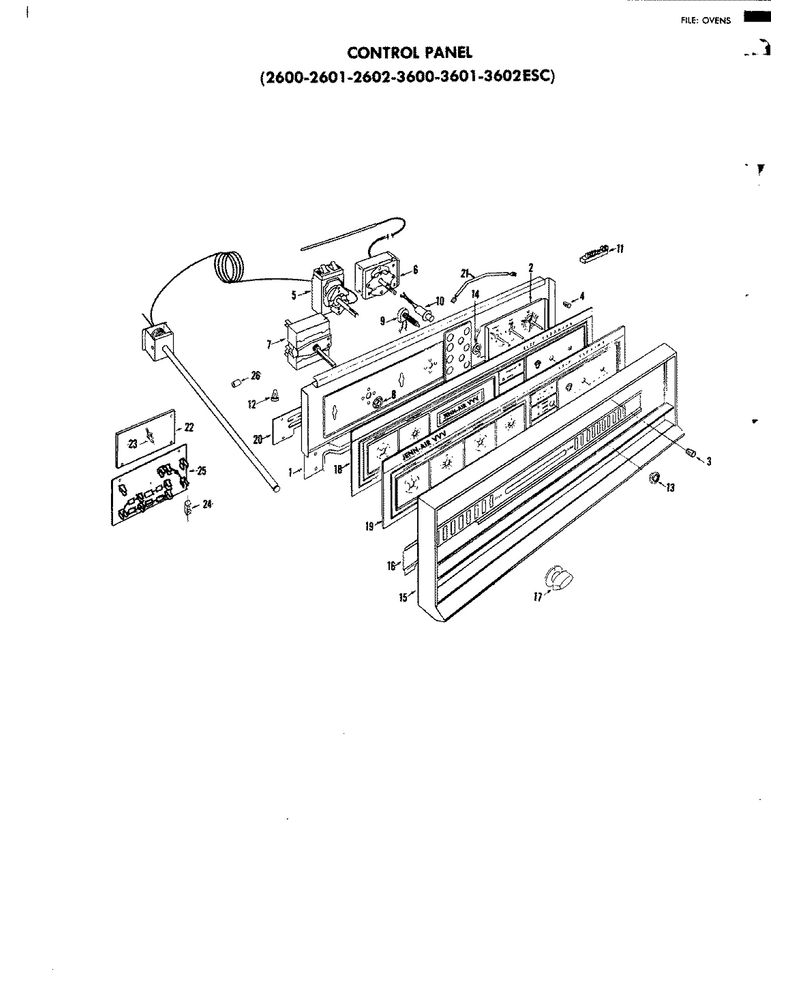

02 - Control Panel

...
...
1
Plate Instrument Mounting WPL-700490
...
2
Clock WPL-700436
...
3
Clock Knob WPL-700437
...
4
Clock Fastener WPL-771080
...
5
Thermostat WPL-771241
...
6
Screw WPL-700065
...
7
Switch WPL-771236
...
8
Screw WPL-771199
...
9
Switch, Oven Light WPL-771225
...
10
Lock Light WPL-771116
...
11
Term Block WPL-771238
...
13
Switch, Bezel WPL-771012
...
14
Ring WPL-771167
...
15
Frame WPL-771247
...
16
Screw WPL-700068
...
17
Knob WPL-771130
...
18
Cont Pnl Gls WPL-700438
...
20
Wire Shield WPL-771203
...
21
Resistor WPL-771160
...
22
Screw WPL-771198
...
23
Diode WPL-771067
...
24
Resistor WPL-771162
...
26
Cover-Screw Tip WPL-771060

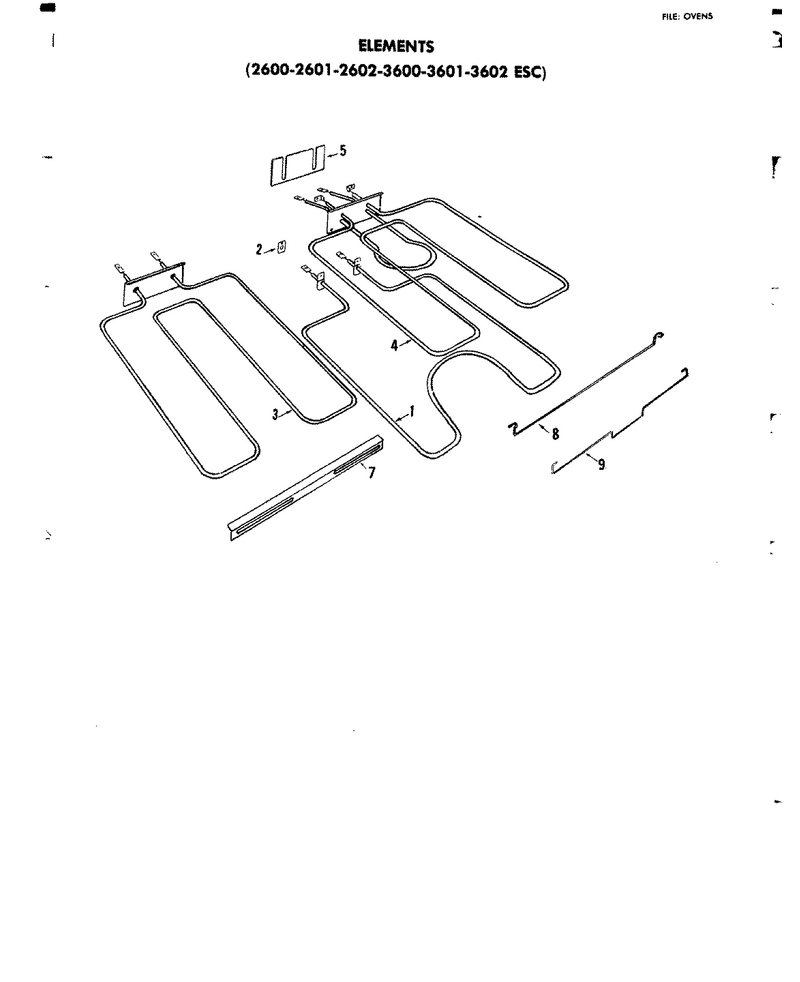

04 - Elements

...
...
1
Element WPL-771073
...
2
Gasket-Bake Element WPL-771095
...
4
Element WPL-771071
...
5
Screw WPL-W11233072
...
7
Screw WPL-W11233072
...
8
Support WPL-771224
