Jenn-Air 2555ENB

Model: 2555ENB

Save Part Not Listed?
product name

Popular Parts

Popular Parts

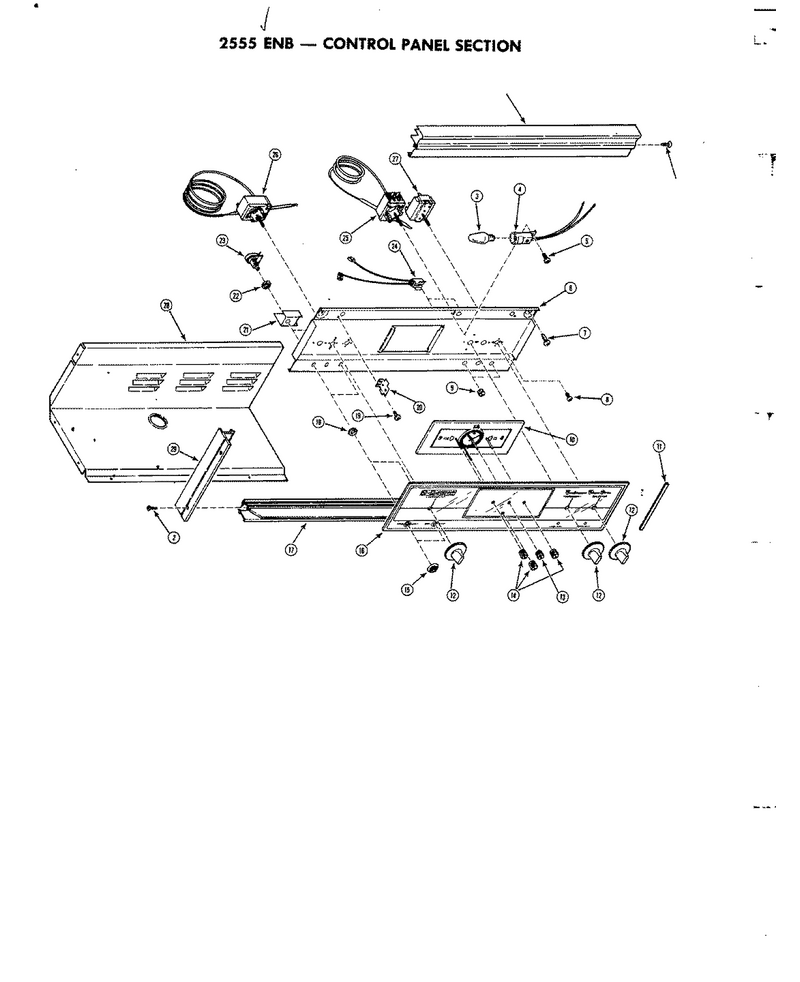

02 - Control Panel

...
...
1
Lamp Shade WPL-770317
...
2
Screw WPL-771294
...
3
Lamp Bulb WPL-770221
...
4
Lamp Holder WPL-770220
...
5
Screw WPL-770212
...
6
Control Mounting Panel WPL-770313
...
7
Screw WPL-770242
...
8
Screw WPL-770186
...
9
Indicator Lens WPL-770249
...
10
Clock WPL-770314
...
11
Trim, Control Panel (End) WPL-770257
...
12
Lower Thermostat WPL-770321
...
13
Clock Knob WPL-770225
...
14
Clock Knob WPL-770226
...
15
Trim Nut WPL-770175
...
16
Control Panel Glass WPL-770312
...
17
Con Pan Fram WPL-771296
...
18
Lock Nut WPL-770179
...
19
Screw WPL-770242
...
20
Bracket WPL-770262
...
21
Switch Shield WPL-770295
...
22
Lock Nut WPL-770179
...
23
Push Switch WPL-770425
...
24
Indicator Light WPL-770256
...
25
Thermostat WPL-770258
...
26
Lower Thermostat WPL-770279
...
27
Selector Switch WPL-770259
...
28
Baffle WPL-770270
...
29
Control Panel Trim (Left) WPL-771297

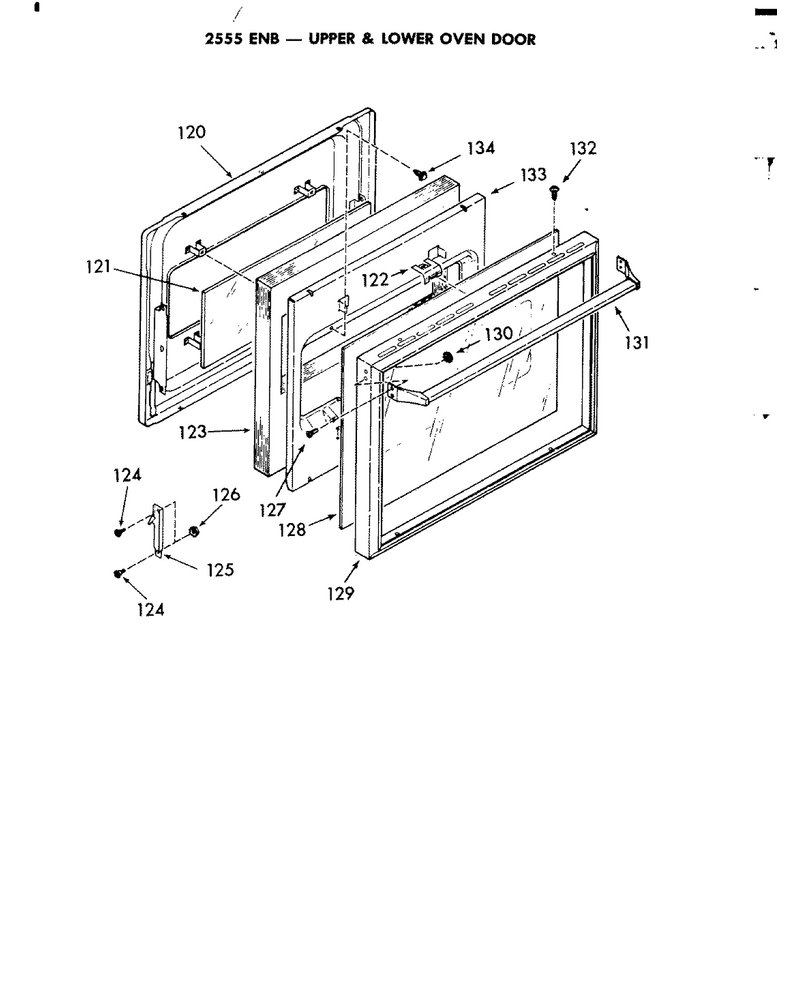

03 - Oven Door (upper & Lower)

...
...
120
Door Liner WPL-771289
...
121
Inner Oven Door Glass WPL-770247
...
122
Glass Retnr WPL-771292
...
123
Insulation WPL-771295
...
124
Shoulder Bolt WPL-770213
...
125
Hinge Arm Guide (Left) WPL-770231
...
126
Nut WPL-WP3400029
...
127
Screw WPL-770171
...
128
Door Glass WPL-771293
...
129
Door Frame WPL-771291
...
130
Keps Nut WPL-770168
...
131
Door Handle WPL-771299
...
132
Screw WPL-771287
...
133
Insulation WPL-771290
...
134
Screw WPL-770306

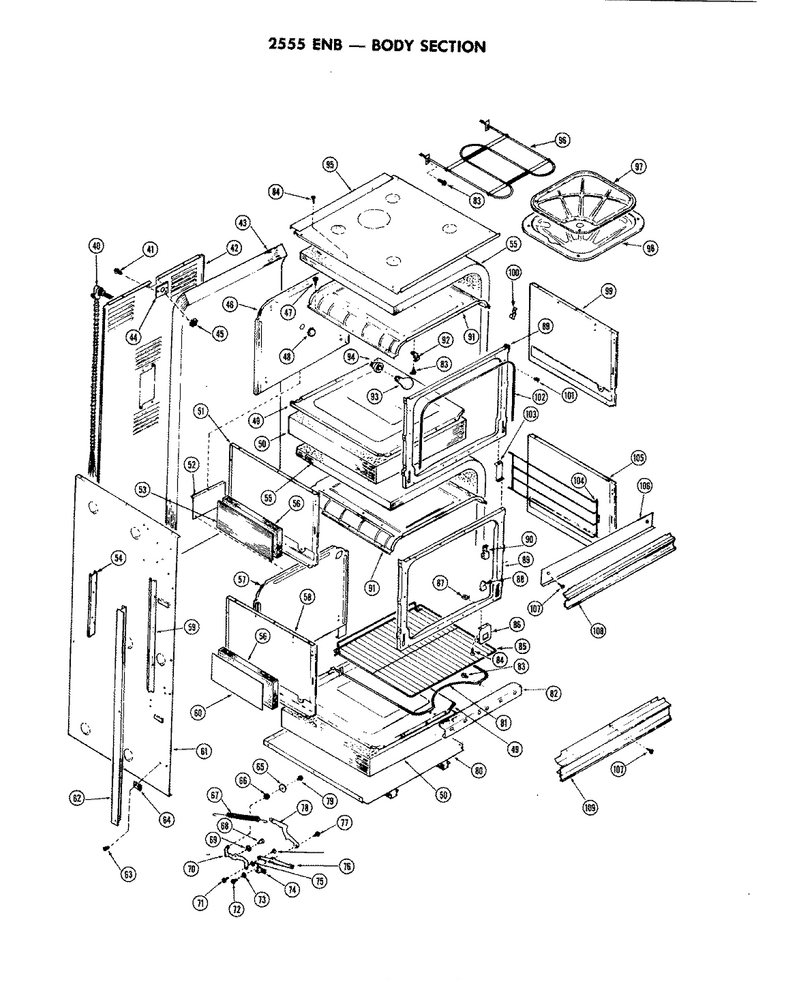

01 - Body

...
...
40
Conduit Harn WPL-770309
...
41
Screw WPL-770424
...
42
Wire Cover WPL-770273
...
43
Insulation Back WPL-770265
...
44
Harness Plate WPL-771286
...
45
Conduit Nut WPL-770131
...
46
Upper Oven Back WPL-770293
...
47
Screw WPL-770306
...
48
Plug Button WPL-770219
...
49
Oven Bottom WPL-770292
...
50
Oven Bottom Insulation WPL-770266
...
51
Upper Left Oven Side WPL-770290
...
52
Back Support WPL-770269
...
53
Corregated Asbestos WPL-771285
...
54
Channel Trim WPL-770280
...
55
Insulation Oven Top & Sides WPL-770261
...
56
Insulation WPL-771281
...
57
Lower Oven Back WPL-770311
...
58
Lower Left Oven Side WPL-770282
...
59
Raceway WPL-770241
...
60
Insulation WPL-771280
...
61
Body Side (Right) WPL-771307
...
62
Front Frame Trim (Left) WPL-771302
...
63
Rivet WPL-771283
...
64
Trim Spacer WPL-771301
...
65
Washer WPL-770206
...
66
Lock Washer WPL-770207
...
67
Door Spring WPL-770275
...
68
Shoulder Rivet WPL-770236
...
69
Roller WPL-770235
...
70
Door Hinge (Left) WPL-770288
...
71
Hinge Rivet Sleeve WPL-770215
...
72
Rivet WPL-770216
...
73
Washer WPL-770227
...
74
Hinge Latch (Right) WPL-770237
...
75
Washer WPL-770217
...
76
Door Arm (Left) WPL-770253
...
77
Spring Link Pivot Sleeve WPL-770228
...
78
Spring Link WPL-770239
...
79
Bolt WPL-770283
...
80
Main Bottom WPL-770267
...
81
Element, Bake WPL-771300
...
82
Element Shield WPL-771308
...
83
Screw WPL-WP489483
...
84
Screw WPL-770306
...
85
Oven Rack WPL-771282
...
86
Front Support Bracket WPL-770260
...
87
Speed Nut WPL-770245
...
88
Hinge Support WPL-770234
...
89
Upper Front Frame WPL-770298
...
90
Door Spring Bracket WPL-770229
...
91
Upper Oven Top WPL-770294
...
92
Support Bracket WPL-Y708585
...
93
Light Bulb WPL-8009
...
94
Lamp Holder WPL-770120
...
95
Main Top WPL-770274
...
96
Kit- Eleme WPL-12500110
...
97
Broiler Pan Grid WPL-770296
...
98
Broiler Pan WPL-770287
...
99
Right Upper Oven Side WPL-770281
...
100
Clip- Ther WPL-WP7112P004-60
...
101
Door Seal Clip WPL-770211
...
102
Door Seal WPL-770305
...
103
Bracket, Support WPL-770475
...
104
Rack Guide WPL-770232
...
105
Right Lower Oven Side WPL-770291
...
106
Shield Burner Box WPL-771305
...
107
Screw WPL-770242
...
108
Front Frame WPL-771309
...
109
Wire Harness WPL-770310
