Jenn-Air 2550ENB

Model: 2550ENB

Save Part Not Listed?
product name

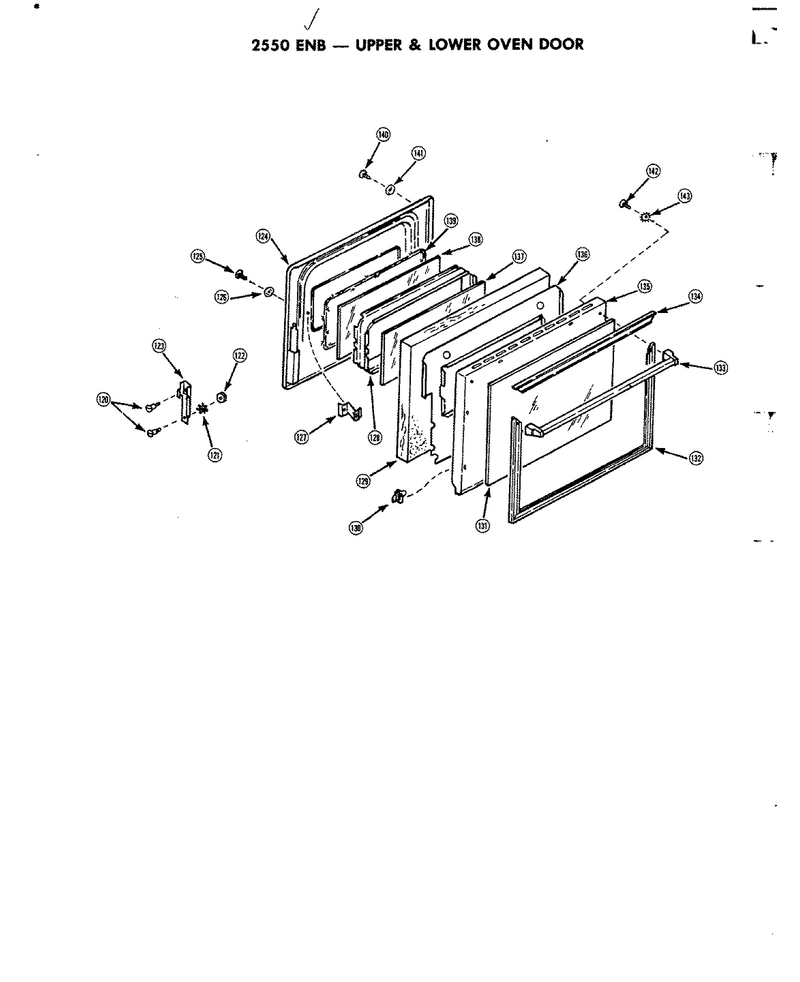

03 - Oven Door (upper & Lower)

...
...
120
Shoulder Bolt WPL-770213
...
121
Lock Washer WPL-770246
...
122
Hex Nut WPL-770218
...
123
Hinge Arm Guide (Left) WPL-770231
...
124
Oven Door Linging WPL-770299
...
125
Screw WPL-770243
...
126
Washer WPL-770210
...
127
Clamp WPL-770248
...
128
Glass Spacer WPL-770252
...
129
Oven Door Insulation WPL-770263
...
130
Fastener WPL-770264
...
131
Outer Door Glass WPL-770302
...
132
Door Glass Frame WPL-770303
...
133
Door Handle WPL-Y770319
...
134
Glass Frame WPL-770304
...
135
Oven Door Front Panel WPL-770300
...
136
Oven Door Insulation Retainer WPL-770301
...
137
Center Oven Door Glass WPL-770240
...
138
Inner Oven Door Glass WPL-770247
...
139
Door Glass Gasket WPL-770286
...
140
Screw WPL-770224
...
141
Washer WPL-770205
...
142
Screw WPL-770223
...
143
Washer WPL-770208

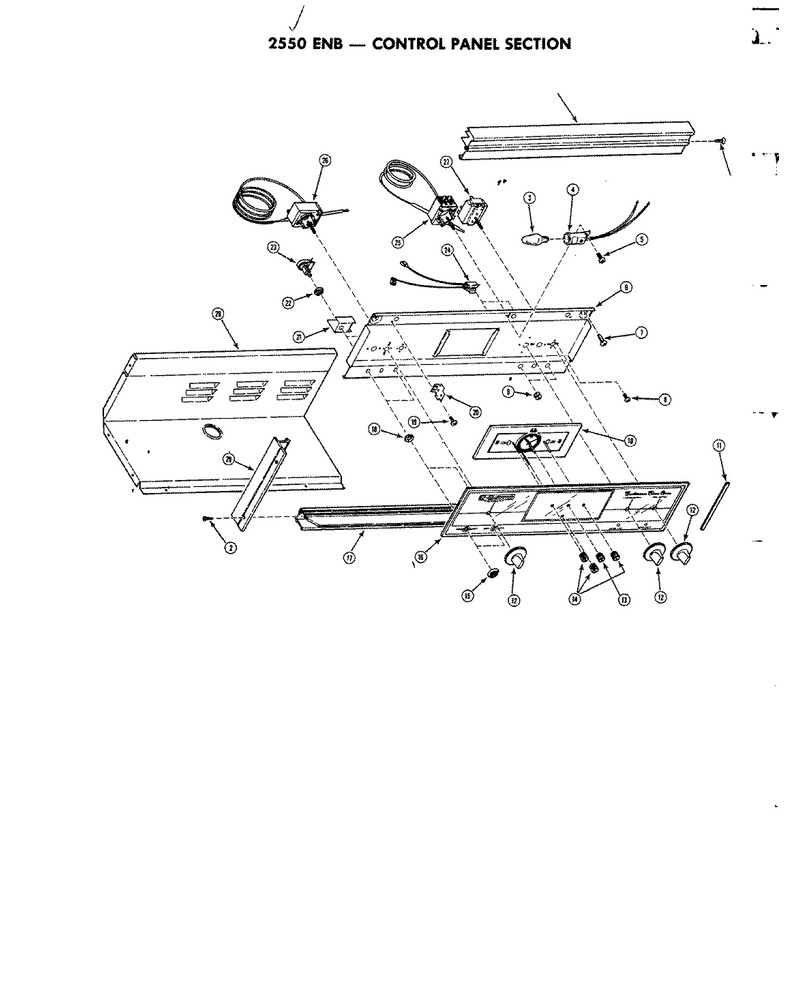

02 - Control Panel

...
...
1
Lamp Shade WPL-770317
...
2
Screw WPL-770297
...
3
Lamp Bulb WPL-770221
...
4
Lamp Holder WPL-770220
...
5
Screw WPL-770212
...
6
Control Mounting Panel WPL-770313
...
7
Screw WPL-770212
...
8
Screw WPL-770186
...
9
Indicator Lens WPL-770249
...
10
Clock WPL-770314
...
11
Trim, Control Panel (End) WPL-770257
...
12
Thermostat WPL-770315
...
13
Clock Knob WPL-770225
...
14
Clock Knob WPL-770226
...
15
Trim Nut WPL-770175
...
16
Control Panel Glass WPL-770312
...
17
Trim, Control Panel (Lower) WPL-770322
...
18
Lock Nut WPL-770179
...
19
Screw WPL-770242
...
20
Bracket WPL-770262
...
21
Switch Shield WPL-770295
...
22
Check Nut WPL-770181
...
23
Push Switch WPL-770425
...
24
Indicator Light WPL-770256
...
25
Thermostat WPL-770258
...
26
Lower Thermostat WPL-770279
...
27
Selector Switch WPL-770259
...
28
Baffle WPL-770270
...
29
Control Panel Side Trim(Left) WPL-770284

01 - Body

...
...
40
Conduit Harn WPL-770309
...
41
Screw WPL-770424
...
42
Wire Cover WPL-770273
...
43
Insulation Back WPL-770265
...
44
Conduit Harness Plate WPL-770268
...
45
Conduit Nut WPL-770131
...
46
Upper Oven Back WPL-770293
...
47
Screw WPL-770306
...
48
Plug Button WPL-770219
...
49
Oven Bottom WPL-770292
...
50
Oven Bottom Insulation WPL-770266
...
51
Back Support WPL-770269
...
52
Channel Trim WPL-770280
...
53
Upper Left Oven Side WPL-770290
...
54
Lower Oven Back WPL-770311
...
55
Raceway WPL-770241
...
56
Lower Left Oven Side WPL-770282
...
57
Body Side (Left) WPL-770272
...
58
Front Trim (Right) WPL-770278
...
59
Washer WPL-770206
...
60
Lock Washer WPL-770207
...
61
Door Spring WPL-770275
...
62
Shoulder Rivet WPL-770236
...
63
Roller WPL-770235
...
64
Door Hinge (Right) WPL-770289
...
65
Hinge Rivet Sleeve WPL-770215
...
66
Rivet WPL-770216
...
67
Washer WPL-770227
...
68
Hinge Latch (Left) WPL-770238
...
69
Washer WPL-770217
...
70
Door Arm (Left) WPL-770253
...
71
Spring Link Pivot Sleeve WPL-770228
...
72
Spring Link WPL-770239
...
73
Bolt WPL-770283
...
74
Screw WPL-770244
...
75
Front Frame Bottom Trim WPL-770276
...
76
Main Bottom WPL-770267
...
77
Element, Bake WPL-771300
...
78
Screw WPL-770306
...
79
Oven Rack WPL-770233
...
80
Front Support Bracket WPL-770260
...
81
Speed Nut WPL-770245
...
82
Hinge Arm Guide Block WPL-770255
...
83
Hinge Support WPL-770234
...
84
Upper Front Frame WPL-770298
...
85
Door Spring Bracket WPL-770229
...
86
Upper Oven Top WPL-770294
...
87
Insulation Oven Top & Sides WPL-770261
...
88
Door Seal Clip WPL-770211
...
89
Door Seal WPL-770305
...
90
Upper Oven Top WPL-770294
...
91
Support Bracket WPL-Y708585
...
92
Screw WPL-770306
...
93
Light Bulb WPL-8009
...
94
Lamp Holder WPL-770120
...
95
Main Top WPL-770274
...
96
Kit- Eleme WPL-12500110
...
97
Broiler Pan Grid WPL-770296
...
98
Broiler Pan WPL-770287
...
99
Clip- Ther WPL-WP7112P004-60
...
100
Right Upper Oven Side WPL-770281
...
101
Upper Front Frame WPL-770298
...
102
Right Lower Oven Side WPL-770291
...
103
Rack Guide WPL-770232
...
104
Front Frame Center Trim WPL-770318
