Jenn-Air 2513

Model: 2513

Save Part Not Listed?
product name

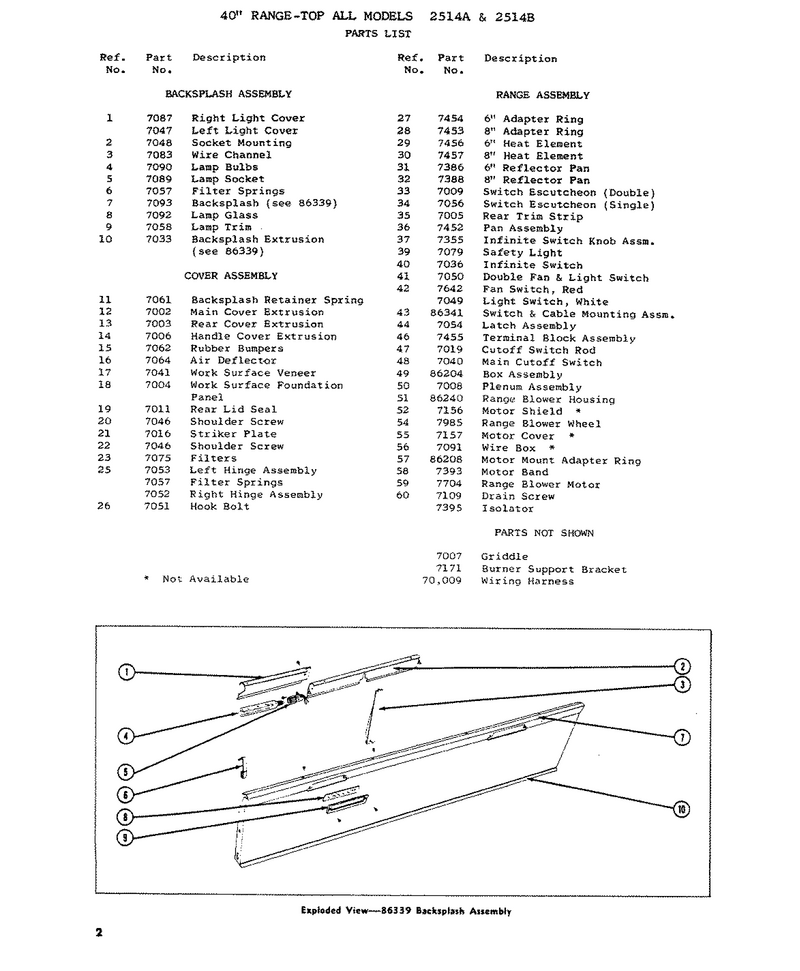

01 - Backsplash

...
...
1
Cover, Light (Rt) WPL-707087
...
2
Socket WPL-707048
...
3
Channel, Wire WPL-707083
...
4
Bulb, Light WPL-707090
...
5
Socket, Lamp WPL-707089
...
6
Spring WPL-707057
...
7
Backsplash WPL-707093
...
8
Glass, Lamp WPL-707092
...
9
Escutcheon, Switch WPL-707058
...
10
Extrusion, Backsplash WPL-707033

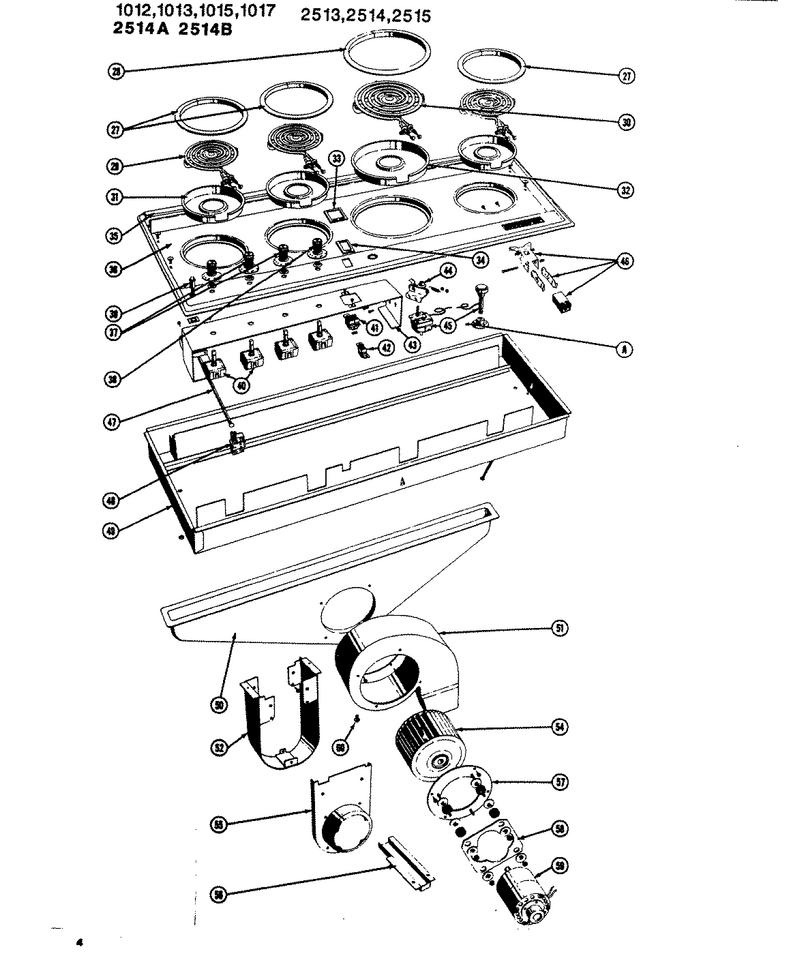

03 - Range Assembly

...
...
27
Ring (6``) WPL-Y707028
...
28
Adaptor- R WPL-WPY707453
...
29
Elmnt-Surf WPL-WPY04100165
...
30
Elmnt-Surf WPL-WPY04100166
...
31
Pan, Drip (6``) WPL-707386
...
32
Pan, Drip (8``) WPL-707388
...
33
Switch Escutcheon (Double) WPL-707009
...
34
Switch, Escutcheon (Single) WPL-707056
...
35
Strip, Trim (Rear) WPL-707005
...
36
Pan, Stainless WPL-707001
...
37
Knob, Infinite Switch Assy. WPL-707355
...
39
Light WPL-Y707079
...
40
Switch, Infinite WPL-Y707036
...
41
Switch WPL-Y707050
...
42
Switch, Light(Wht) WPL-707049
...
43
Switch & Cable Mounting Assy WPL-786341
...
44
Lock Assy. WPL-707054
...
45
Switch, Sensor (6``) WPL-707037
...
46
Block, Terminal WPL-707401
...
47
Rod, Cut Off WPL-707019
...
48
Switch, Cutoff WPL-707040
...
49
Box Assembly WPL-786204
...
50
Plenum WPL-707008
...
51
Glass, Control Panel (Black) WPL-4362501
...
52
Shield, Motor WPL-707156
...
54
Wheel-Fan WPL-WPY707985
...
55
Cover, Motor WPL-707157
...
56
Box, Wire WPL-707091
...
57
Adapter Ring WPL-786208
...
58
Band, Motor WPL-3415F003-51
...
59
Motor-Blwr WPL-707704K
...
60
Isolator Motor WPL-Y707395

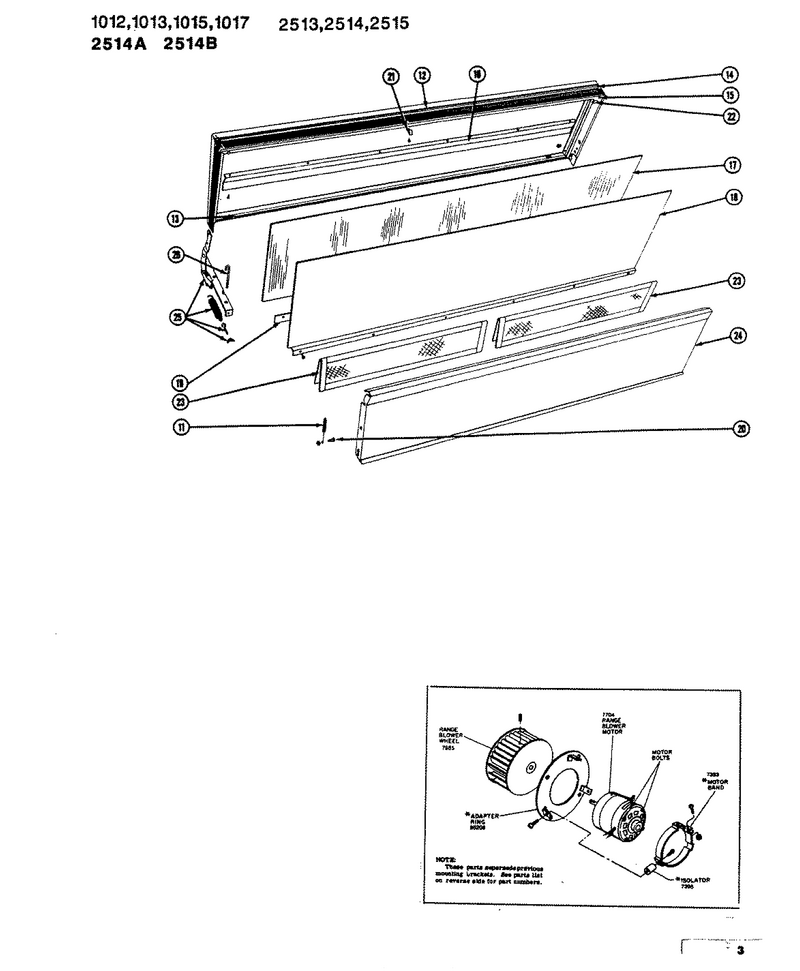

02 - Cover Assembly

...
...
11
Spring, Backsplash WPL-707061
...
12
Extrusion WPL-707002
...
13
Extru Rr Cov WPL-707003
...
14
Hndle. Cur. WPL-707006
...
15
Bumper, Rubber WPL-707062
...
16
Deflector, Air WPL-707064
...
17
Panel, Cover WPL-707041
...
18
Panel, Work Surface WPL-707004
...
19
Seal WPL-707011
...
20
Stud, Pal Pvt WPL-707046
...
21
Plate WPL-707016
...
22
Stud, Pal Pvt WPL-707046
...
23
Filter WPL-707075
...
25
Spring WPL-707057
...
26
Bolt, Hook WPL-707051
