Jenn-Air 2365

Model: 2365

Save Part Not Listed?
product name

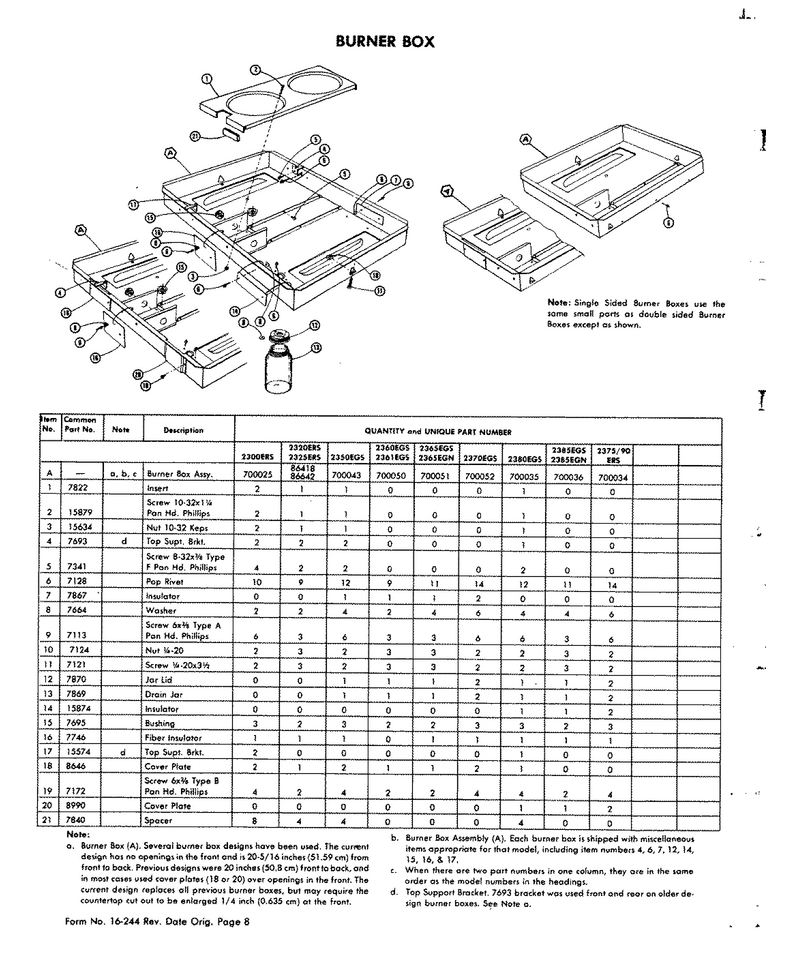

02 - Burner Box

...
...
1
Box, Burner Assy WPL-700051
...
2
Not Required Part Or See Note WPL-W10124350
...
3
Not Required Part Or See Note WPL-W10124350
...
4
Not Required Part Or See Note WPL-W10124350
...
5
Not Required Part Or See Note WPL-W10124350
...
6
Rivet WPL-WP210720
...
7
Insulator WPL-707867
...
8
Washer WPL-Y707664
...
9
Screw WPL-WP59002061
...
10
Nut WPL-M0282009
...
11
Screw WPL-Y707121
...
12
Lid-Jar WPL-WP5700M611-60
...
13
Jar- Drain WPL-WPY707869
...
14
Not Required Part Or See Note WPL-W10124350
...
15
Bushing WPL-Y707695
...
16
Insulator WPL-707746
...
17
Not Required Part Or See Note WPL-W10124350
...
18
Cover Plate WPL-708646
...
19
Screw WPL-WP59002061
...
20
Not Required Part Or See Note WPL-W10124350
...
21
Not Required Part Or See Note WPL-W10124350

...
...
1
Grill Pan Wires WPL-700044
...
2
Not Required Part Or See Note WPL-W10124350
...
3
Not Required Part Or See Note WPL-W10124350
...
4
Screw WPL-WP71001171
...
5
Contact Assembly WPL-Y700004
...
6
Not Required Part Or See Note WPL-W10124350
...
7
Not Required Part Or See Note WPL-W10124350
...
8
Not Required Part Or See Note WPL-W10124350
...
9
Not Required Part Or See Note WPL-W10124350
...
10
Grate WPL-707886
...
11
Grill Element 208v WPL-Y707923
...
12
Not Required Part Or See Note WPL-W10124350
...
13
Not Required Part Or See Note WPL-W10124350
...
14
Not Required Part Or See Note WPL-W10124350
...
15
Porcelain Cast Rock WPL-Y715091
...
16
Support, Rock Plate WPL-700819
...
17
Insulation WPL-707912
...
18
Insulation WPL-707913
...
19
Not Required Part Or See Note WPL-W10124350
...
20
Not Required Part Or See Note WPL-W10124350
...
21
Screw WPL-WP59002061
...
22
Not Required Part Or See Note WPL-W10124350
...
23
Not Required Part Or See Note WPL-W10124350
...
24
Not Required Part Or See Note WPL-W10124350
...
25
Detent Spring WPL-707802
...
26
Screw WPL-707116

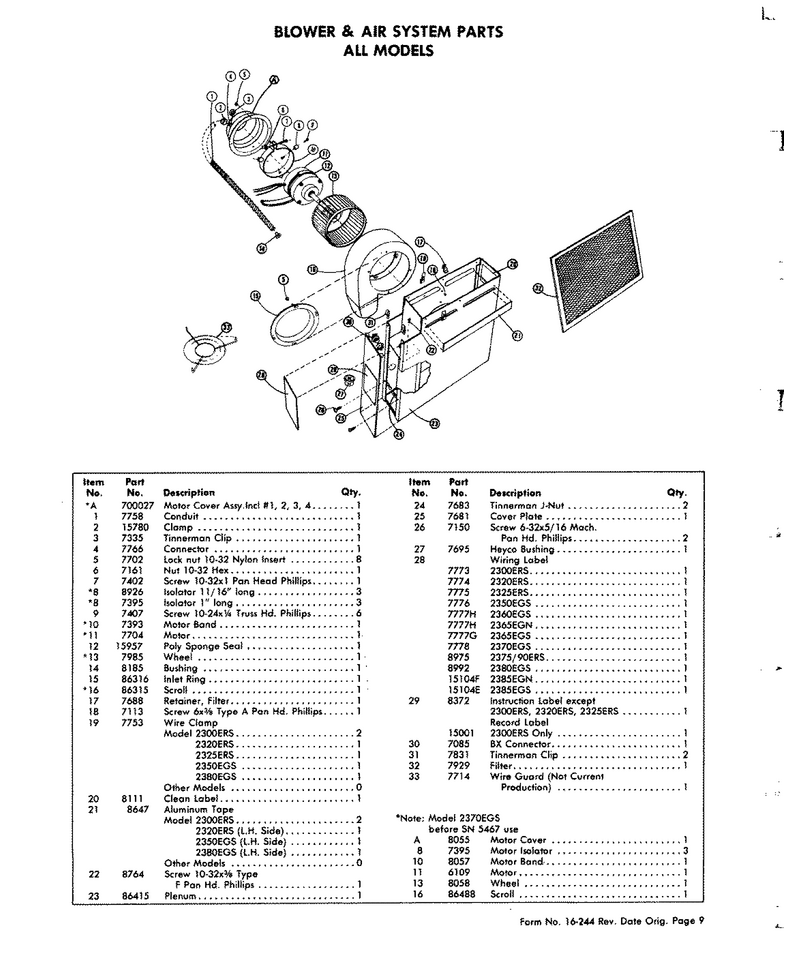

01 - Blower Assembly

...
...
1
Conduit, Metal WPL-Y705155
...
2
Clamp, Cable WPL-715780
...
3
Clip WPL-Y707335
...
4
Connector WPL-707766
...
5
Locknut WPL-WPY707702
...
6
Nut WPL-707161
...
7
Screw WPL-WP4381696
...
8
Isolator- WPL-WP71003558
...
9
Screw WPL-707407
...
10
Band, Motor WPL-3415F003-51
...
11
Motor-Blwr WPL-707704K
...
12
Gasket WPL-715957K
...
13
Wheel-Fan WPL-WPY707985
...
14
Bushing WPL-708185
...
15
Ring, Inlet (With Studs) WPL-786316
...
16
Scroll, Blower Assy. WPL-712008
...
17
Retainer, Filter WPL-Y707688
...
18
Screw WPL-WP59002061
...
19
Not Required Part Or See Note WPL-W10124350
...
20
Cleaning Label WPL-708111
...
21
Not Required Part Or See Note WPL-W10124350
...
22
Screw WPL-WP179051
...
23
Plenum-Air WPL-W10777871
...
24
Nut WPL-707683
...
25
Plate, Cover WPL-Y707681
...
26
Screw, Burner Mtg WPL-7101P286-60
...
27
Bushing WPL-Y707695
...
28
Wiring Label WPL-707777
...
29
Instruction Label WPL-708372
...
30
Connector, Conduit WPL-707085
...
31
Clip WPL-Y707831
...
32
Filter- Gr WPL-WP707929
...
33
Air Grill WPL-707714

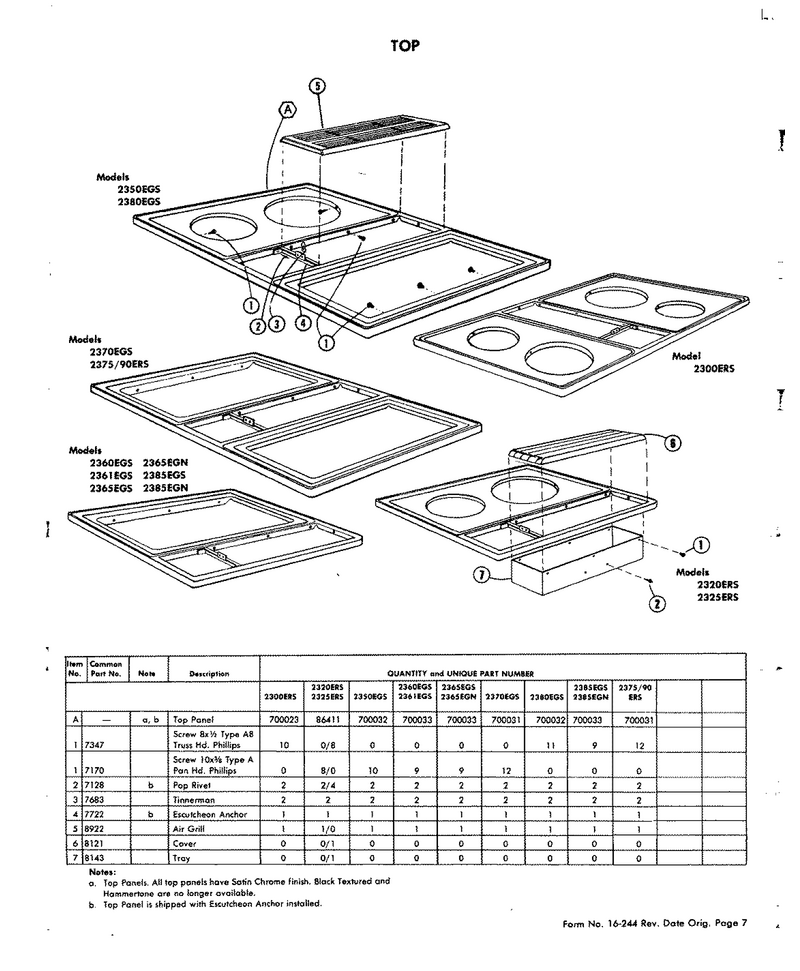

05 - Top Assembly

...
...
1
Top, Range WPL-700033
...
2
Rivet WPL-WP210720
...
3
Nut WPL-707683
...
4
Anchor WPL-707722
...
5
Cover-Vent WPL-WP7772P007-60
...
6
Not Required Part Or See Note WPL-W10124350
...
7
Not Required Part Or See Note WPL-W10124350

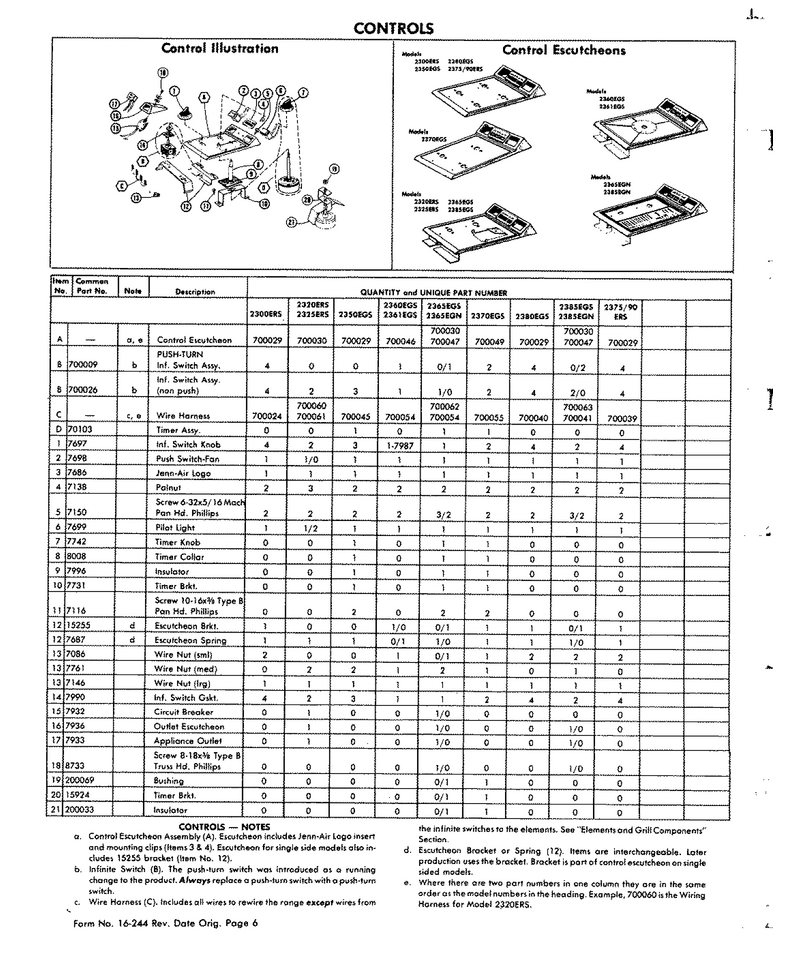

03 - Controls

...
...
1
Timer Assy. WPL-770103
...
2
Fan Switch WPL-12001418
...
3
Insert, Logo----Na WPL-707686
...
4
Palnut WPL-707138
...
5
Screw, Burner Mtg WPL-7101P286-60
...
6
Light, Pilot WPL-Y707699
...
7
Knob- Time WPL-WPY703663
...
8
Collar,timer WPL-708008
...
9
Insulator WPL-707996
...
10
Bracket WPL-707731
...
11
Screw WPL-707116
...
12
Esc Brkt WPL-715255
...
13
Nut, Wire WPL-707146
...
14
Seal-Swtch WPL-WP3188425
...
15
Breaker, Circuit WPL-Y715443
...
16
Escutch Out WPL-707936
...
17
Outlet WPL-707933
...
18
Screw WPL-W11233072
...
19
Not Required Part Or See Note WPL-W10124350
...
20
Bracket, Timer WPL-715924
...
21
Not Required Part Or See Note WPL-W10124350
