Jenn-Air 2350EGS

Model: 2350EGS

Save Part Not Listed?
product name

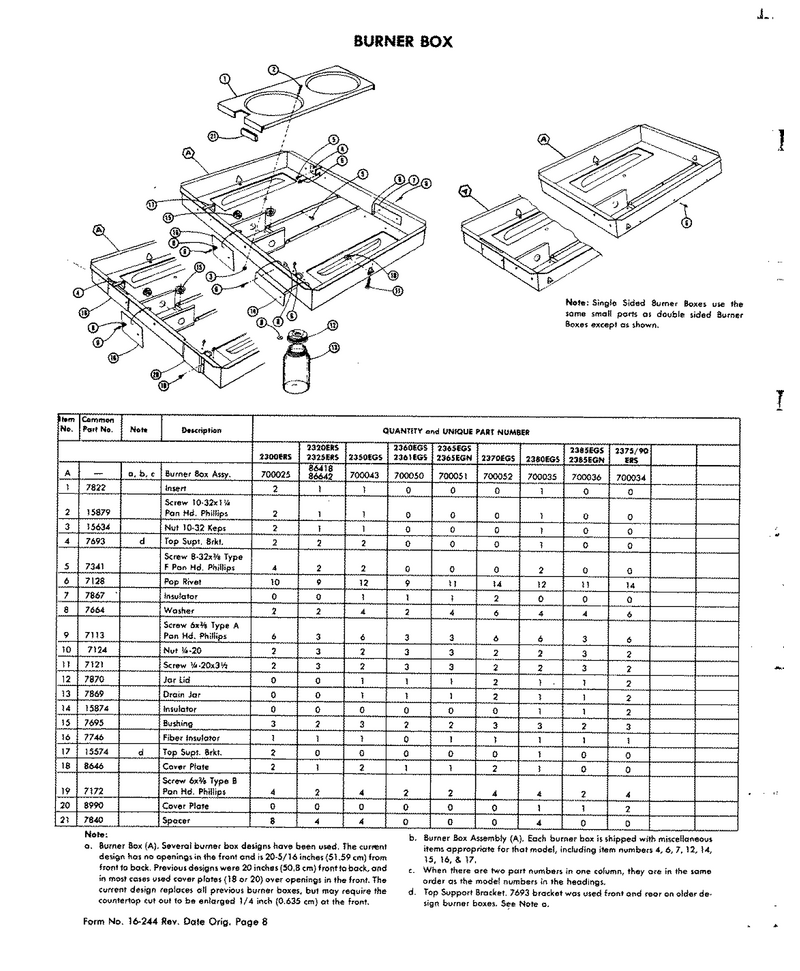

02 - Burner Box

...
...
1
Insert, Burner Box WPL-Y707822
...
2
10-32 Screw WPL-715879
...
3
Nut WPL-WP3400029
...
4
Bracket, Top Support WPL-707693
...
5
Screw WPL-WP489128
...
6
Rivet WPL-WP210720
...
7
Insulator WPL-707867
...
8
Washer WPL-Y707664
...
9
Screw WPL-WP59002061
...
10
Nut WPL-M0282009
...
11
Screw WPL-Y707121
...
12
Lid-Jar WPL-WP5700M611-60
...
13
Jar- Drain WPL-WPY707869
...
15
Bushing WPL-Y707695
...
16
Insulator WPL-707746
...
18
Cover Plate WPL-708646
...
19
Screw WPL-WP59002061
...
21
Spacer WPL-707840

...
...
1
Grill Pan Wires WPL-700044
...
2
Medallion WPL-770200
...
3
Crmc Block WPL-715805
...
4
Screw WPL-WP71001171
...
5
Screw WPL-703003
...
6
Pan, Drip (6``) WPL-715877
...
7
Pan, Drip (8``) WPL-715878
...
8
Adaptor- R WPL-WPY707454
...
9
Adaptor- R WPL-WPY707453
...
10
Grate WPL-707886
...
11
Element, Grill WPL-700058
...
12
Grill Element 208v WPL-Y707923
...
15
Porcelain Cast Rock WPL-Y715091
...
16
Support, Rock Plate WPL-700819
...
17
Insulation WPL-707912
...
18
Insulation WPL-707913
...
21
Screw WPL-WP59002061
...
25
Detent Spring WPL-707802
...
26
Screw WPL-707116

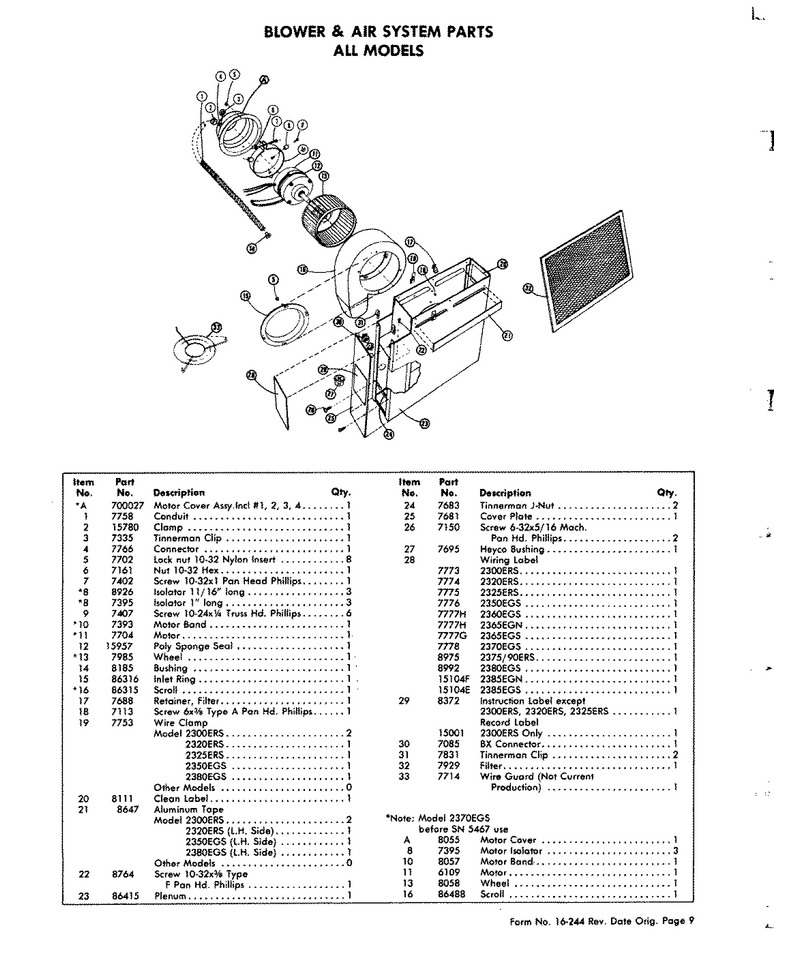

01 - Blower & Air System Parts

...
...
1
Motor Cover Assembly WPL-700027
...
2
Clamp, Cable WPL-715780
...
3
Clip WPL-Y707335
...
4
Connector WPL-707766
...
5
Locknut WPL-WPY707702
...
6
Nut WPL-707161
...
7
Screw WPL-WP4381696
...
8
Isolator- WPL-WP71003558
...
9
Screw WPL-707407
...
10
Band, Motor WPL-3415F003-51
...
11
Motor-Blwr WPL-707704K
...
12
Gasket WPL-715957K
...
13
Wheel-Fan WPL-WPY707985
...
14
Bushing WPL-708185
...
15
Ring, Inlet (With Studs) WPL-786316
...
16
Scroll, Blower Assy. WPL-712008
...
17
Retainer, Filter WPL-Y707688
...
18
Screw WPL-WP59002061
...
19
Clamp,cable WPL-707753
...
20
Cleaning Label WPL-708111
...
21
Tape, Aluminum WPL-708647
...
22
Screw WPL-WP179051
...
23
Plenum-Air WPL-W10777871
...
24
Nut WPL-707683
...
25
Plate, Cover WPL-Y707681
...
26
Screw, Burner Mtg WPL-7101P286-60
...
27
Bushing WPL-Y707695
...
28
Wiring Label WPL-707776
...
29
Instruction Label WPL-708372
...
30
Connector, Conduit WPL-707085
...
31
Clip WPL-Y707831
...
32
Filter- Gr WPL-WP707929
...
33
Air Grill WPL-707714

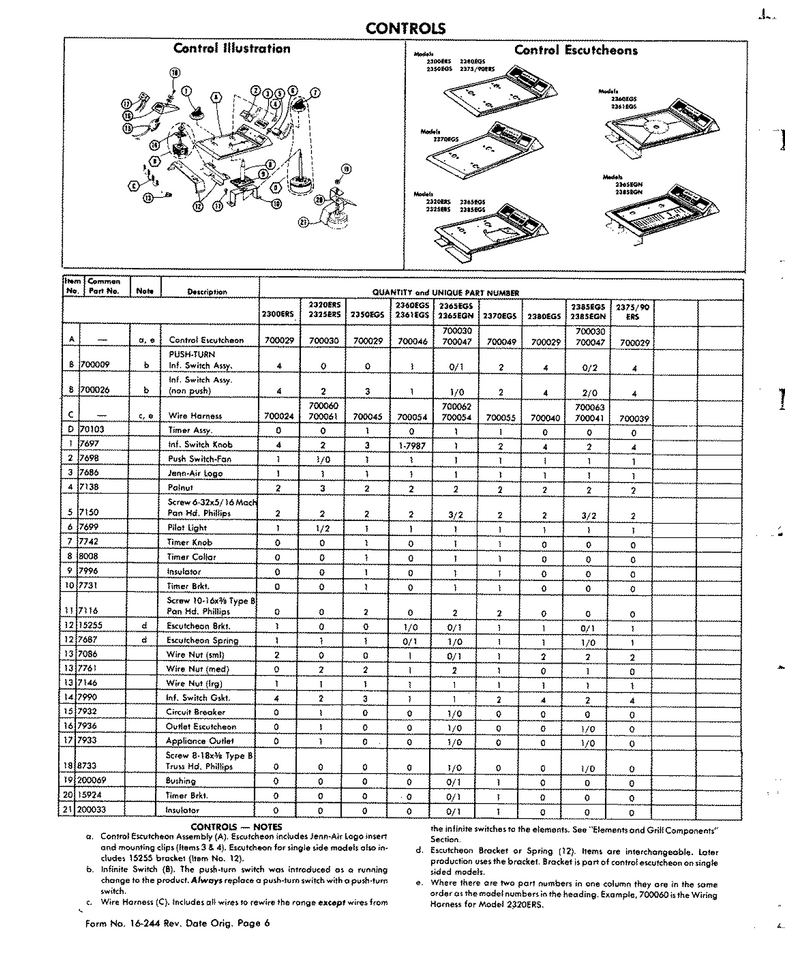

03 - Controls

...
...
1
Left Hand Assembly WPL-700029
...
2
Fan Switch WPL-12001418
...
3
Insert, Logo----Na WPL-707686
...
4
Palnut WPL-707138
...
5
Screw, Burner Mtg WPL-7101P286-60
...
6
Light, Pilot WPL-Y707699
...
7
Knob- Time WPL-WPY703663
...
8
Collar,timer WPL-708008
...
9
Insulator WPL-707996
...
10
Bracket WPL-707731
...
11
Screw WPL-707116
...
12
Spring, Escutcheon WPL-707687
...
13
Nut Wire WPL-Y707761
...
14
Seal-Swtch WPL-WP3188425

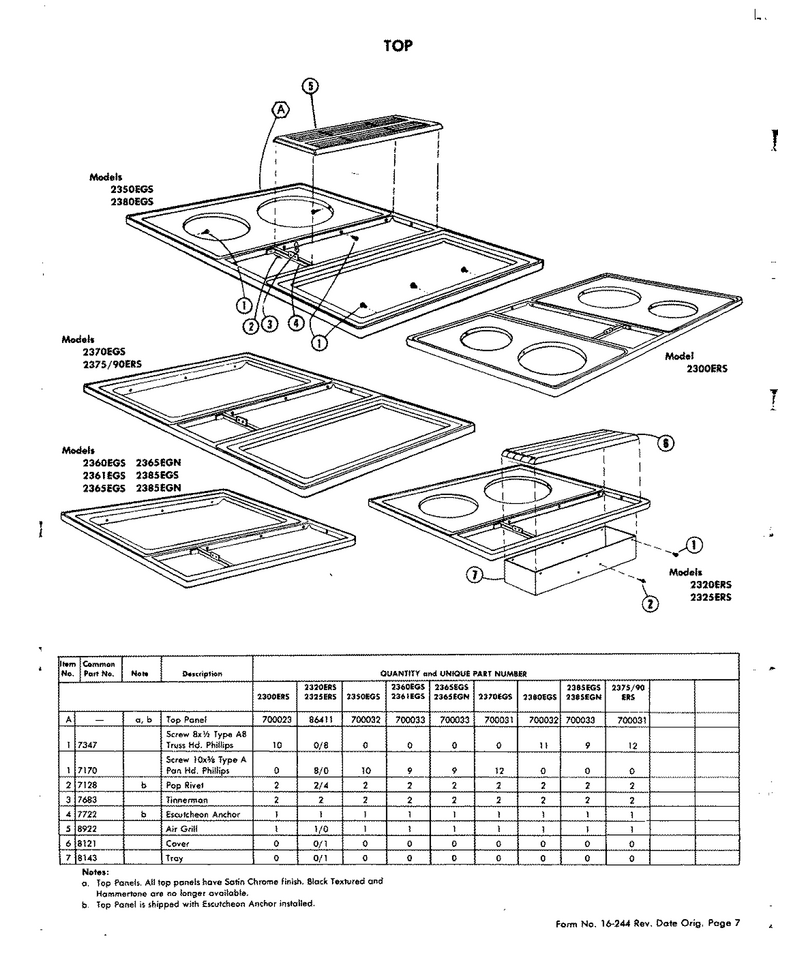

05 - Top

...
...
1
Screw WPL-WP7101P126-60
...
2
Rivet WPL-WP210720
...
3
Nut WPL-707683
...
4
Anchor WPL-707722
...
5
Cover-Vent WPL-WP7772P007-60
