Jenn-Air 2300

Model: 2300

Save Part Not Listed?
product name

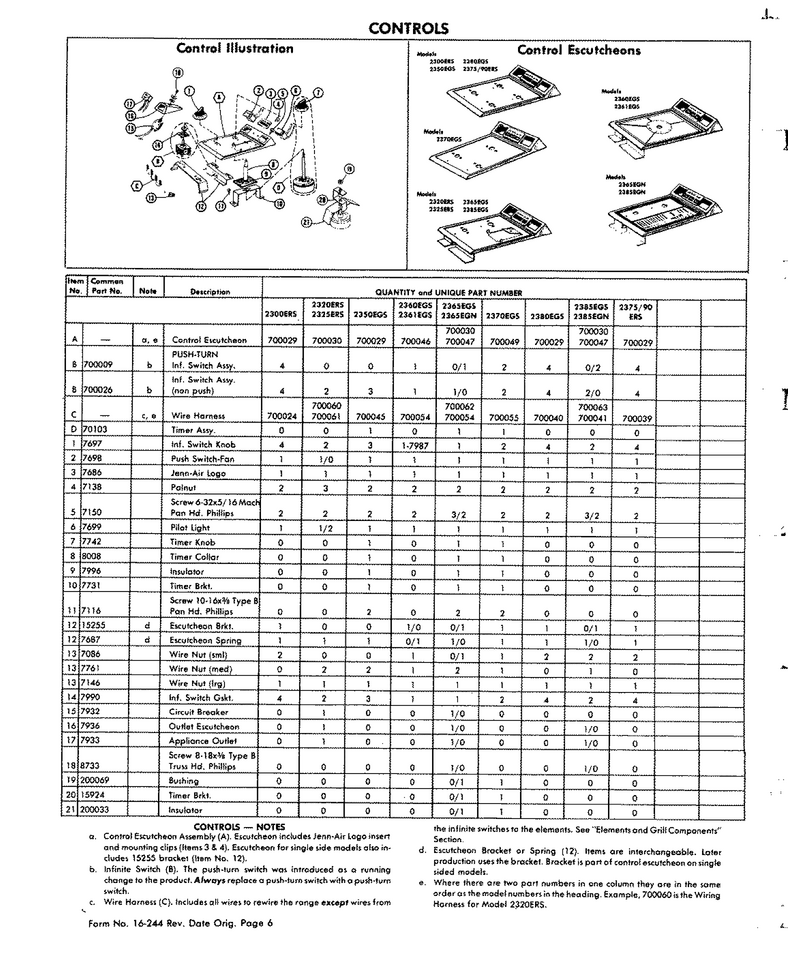

03 - Controls

...
...
1
Left Hand Assembly WPL-700029
...
2
Fan Switch WPL-12001418
...
3
Insert, Logo----Na WPL-707686
...
4
Palnut WPL-707138
...
5
Screw, Burner Mtg WPL-7101P286-60
...
6
Light, Pilot WPL-Y707699
...
7
Not Required Part Or See Note WPL-W10124350
...
8
Not Required Part Or See Note WPL-W10124350
...
9
Not Required Part Or See Note WPL-W10124350
...
10
Not Required Part Or See Note WPL-W10124350
...
11
Not Required Part Or See Note WPL-W10124350
...
12
Spring, Escutcheon WPL-707687
...
13
Nut, Wire WPL-707086
...
14
Seal-Swtch WPL-WP3188425
...
15
Not Required Part Or See Note WPL-W10124350
...
16
Not Required Part Or See Note WPL-W10124350
...
17
Not Required Part Or See Note WPL-W10124350
...
18
Not Required Part Or See Note WPL-W10124350
...
19
Not Required Part Or See Note WPL-W10124350
...
20
Not Required Part Or See Note WPL-W10124350
...
21
Not Required Part Or See Note WPL-W10124350

...
...
1
Burner (6``) WPL-Y707727
...
2
Medallion WPL-770200
...
3
Crmc Block WPL-715805
...
4
Screw WPL-WP71001171
...
5
Contact Assembly WPL-Y700004
...
6
Pan, Drip (6``) WPL-715877
...
7
Pan, Drip (8``) WPL-715878
...
8
Adaptor- R WPL-WPY707454
...
9
Adaptor- R WPL-WPY707453
...
10
Not Required Part Or See Note WPL-W10124350
...
11
Not Required Part Or See Note WPL-W10124350
...
12
Not Required Part Or See Note WPL-W10124350
...
13
Not Required Part Or See Note WPL-W10124350
...
14
Not Required Part Or See Note WPL-W10124350
...
15
Not Required Part Or See Note WPL-W10124350
...
16
Not Required Part Or See Note WPL-W10124350
...
17
Not Required Part Or See Note WPL-W10124350
...
18
Not Required Part Or See Note WPL-W10124350
...
19
Not Required Part Or See Note WPL-W10124350
...
20
Not Required Part Or See Note WPL-W10124350
...
21
Not Required Part Or See Note WPL-W10124350
...
22
Not Required Part Or See Note WPL-W10124350
...
23
Not Required Part Or See Note WPL-W10124350
...
24
Not Required Part Or See Note WPL-W10124350
...
25
Not Required Part Or See Note WPL-W10124350
...
26
Not Required Part Or See Note WPL-W10124350

...
...
1
Elem 6 208v WPL-715929
...
2
Element, 8`` Conv. (208v) WPL-Y04100454
...
3
Pan, Drip (6``) WPL-715877
...
4
Pan, Drip (8``) WPL-715878
...
5
Medallion WPL-Y700132
...
6
Receptacle Assy. WPL-12001676

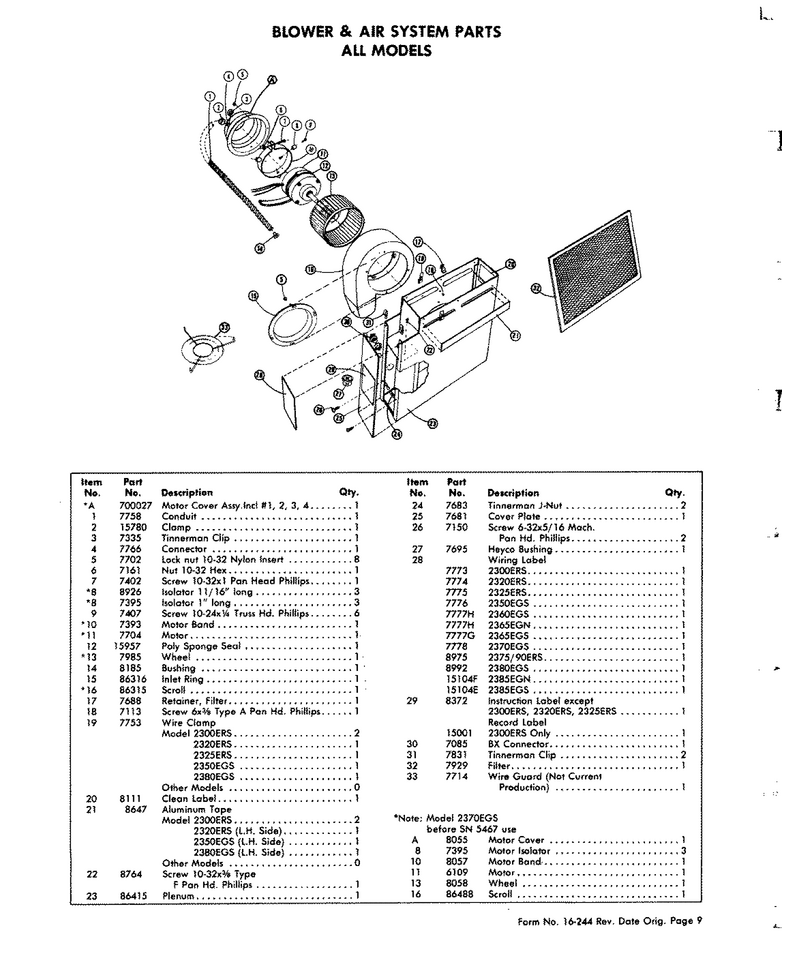

01 - Blower & Air System Parts

...
...
1
Motor Cover Assembly WPL-700027
...
2
Clamp, Cable WPL-715780
...
3
Clip WPL-Y707335
...
4
Connector WPL-707766
...
5
Locknut WPL-WPY707702
...
6
Nut WPL-707161
...
7
Screw WPL-WP4381696
...
8
Isolator- WPL-WP71003558
...
9
Screw WPL-707407
...
10
Band, Motor WPL-3415F003-51
...
11
Motor-Blwr WPL-707704K
...
12
Gasket WPL-715957K
...
13
Wheel-Fan WPL-WPY707985
...
14
Bushing WPL-708185
...
15
Ring, Inlet (With Studs) WPL-786316
...
16
Scroll, Blower Assy. WPL-712008
...
17
Retainer, Filter WPL-Y707688
...
18
Screw WPL-WP59002061
...
19
Clamp,cable WPL-707753
...
20
Cleaning Label WPL-708111
...
21
Tape, Aluminum WPL-708647
...
22
Screw WPL-WP179051
...
23
Plenum-Air WPL-W10777871
...
24
Nut WPL-707683
...
25
Plate, Cover WPL-Y707681
...
26
Screw, Burner Mtg WPL-7101P286-60
...
27
Bushing WPL-Y707695
...
28
Wiring Label WPL-707773
...
29
Instruction Label WPL-708372
...
30
Connector, Conduit WPL-707085
...
31
Clip WPL-Y707831
...
32
Filter- Gr WPL-WP707929
...
33
Air Grill WPL-707714

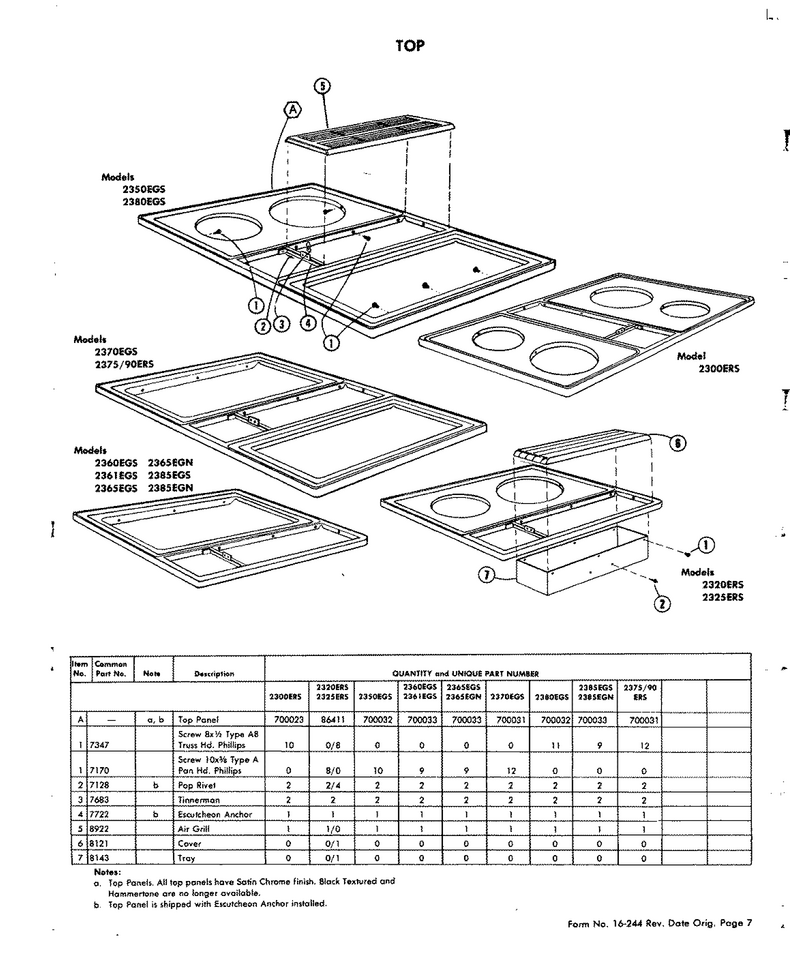

06 - Top

...
...
1
Screw WPL-W11233072
...
2
Rivet WPL-WP210720
...
3
Nut WPL-707683
...
4
Anchor WPL-707722
...
5
Cover-Vent WPL-WP7772P007-60
...
6
Not Required Part Or See Note WPL-W10124350
...
7
Not Required Part Or See Note WPL-W10124350

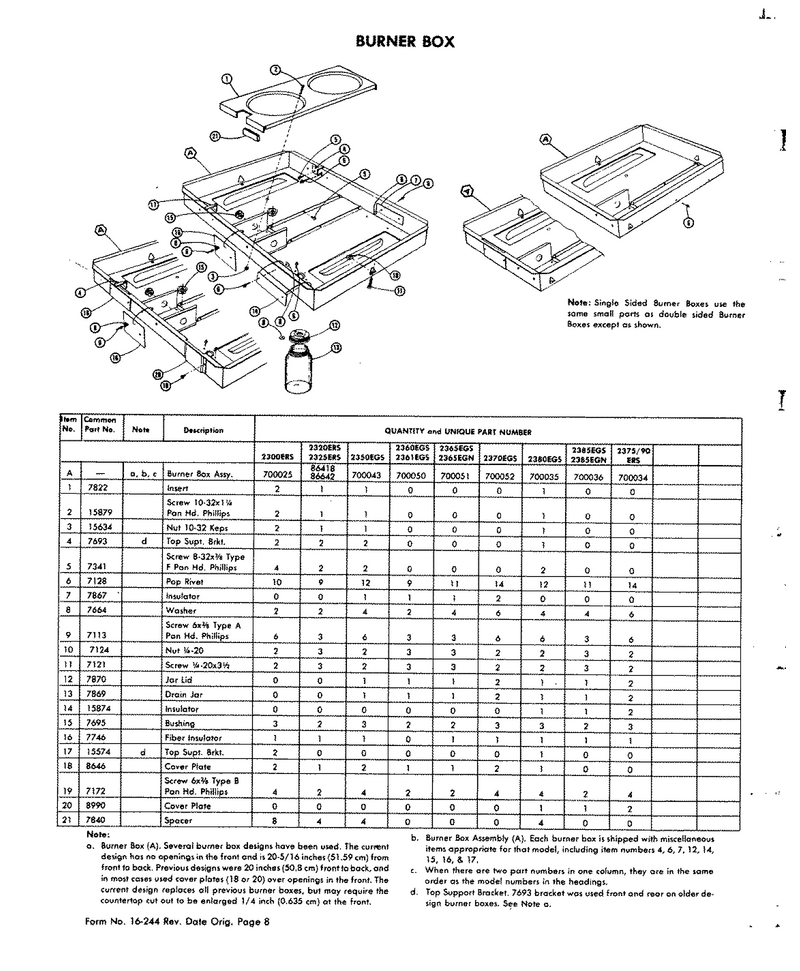

02 - Burner Box

...
...
1
Burner Box WPL-700025
...
2
10-32 Screw WPL-715879
...
3
Nut WPL-WP3400029
...
4
Bracket, Top Support WPL-707693
...
5
Screw WPL-WP489128
...
6
Rivet WPL-WP210720
...
7
Not Required Part Or See Note WPL-W10124350
...
8
Washer WPL-Y707664
...
9
Screw WPL-WP59002061
...
10
Nut WPL-M0282009
...
11
Screw WPL-Y707121
...
12
Not Required Part Or See Note WPL-W10124350
...
13
Not Required Part Or See Note WPL-W10124350
...
14
Not Required Part Or See Note WPL-W10124350
...
15
Bushing WPL-Y707695
...
16
Insulator WPL-707746
...
17
Top Support Bracket WPL-715574
...
18
Cover Plate WPL-708646
...
19
Screw WPL-WP59002061
...
20
Not Required Part Or See Note WPL-W10124350
...
21
Spacer WPL-707840
