Jenn-Air 2255

Model: 2255

Save Part Not Listed?
product name

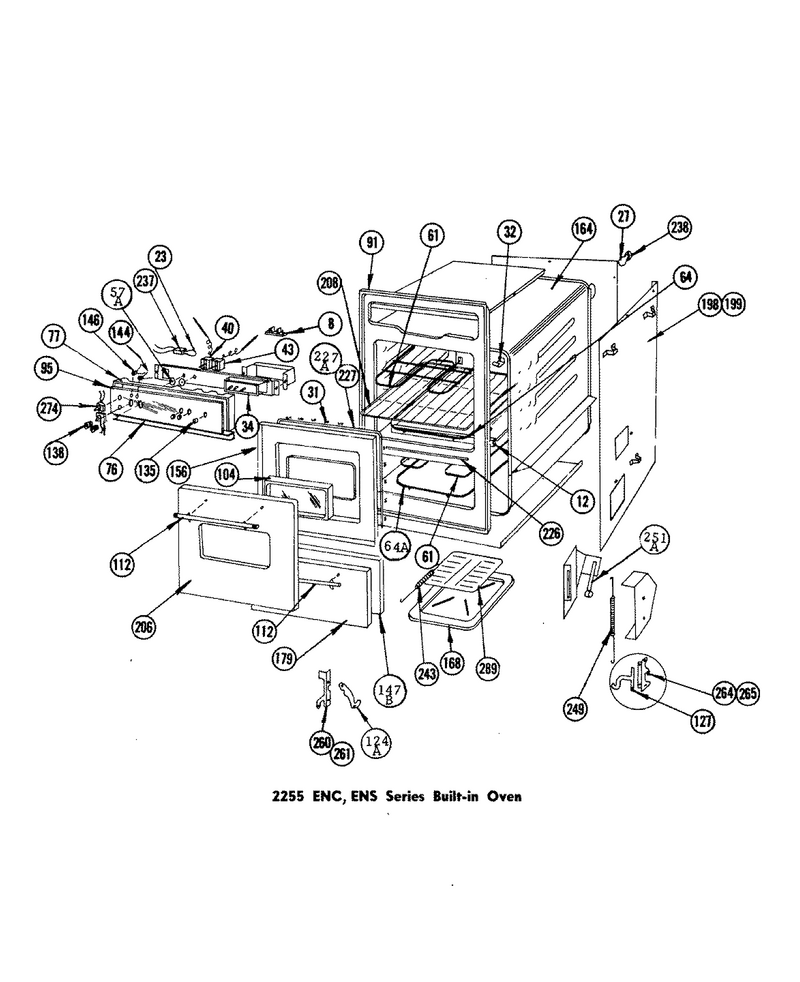

01 - Double Ovens

...
...
12
Botton, Oven (Built-In) WPL-7E07600153
...
23
Bulb, Backguard Incandescent WPL-OB01300699
...
27
Bulb, Oven Light WPL-OB00300199
...
31
Clip, Heat Lox Seal WPL-OC00900126
...
32
Clip,oven Control Capillary WPL-OC00100199
...
34
Clock, Automatic WPL-OC02012745
...
40
Control Oven, Stem Cap WPL-OC01601199
...
43
Control, Lower Oven WPL-OC01602399
...
57
Dial, Oven Control(Disc) WPL-OD00103416
...
61
Element, Broil WPL-OE00201399
...
64
Element,bake (Built-In Upper) WPL-OE00100299
...
76
Frame, Control Panel(Bottom) WPL-OF07070816
...
77
Frame, Control Panel (Top) WPL-OF07001516
...
91
Front, Main WPL-7F09105811
...
95
Glass, Built-In Backguard WPL-OG07003020
...
104
Glass, Oven Door Assembly WPL-OG00902299
...
112
Handle, Door WPL-OH03000811
...
124
Hinge, Broiler Door WPL-7G11200122
...
127
Hinge, Oven Door WPL-7G10706022
...
135
Knob, Clock Time Set WPL-OK00200043
...
138
Knob, Oven Control WPL-OK00600243
...
144
Light Indicator (Oven) WPL-OL00600223
...
146
Light, Indicator,(Plain) WPL-OL00602023
...
147
Lining Broiler Door WPL-7G03003153
...
156
Lining Oven Door WPL-7G01901553
...
164
Oven WPL-7E09003853
...
168
Procelain Broiler (Pan And Grid) WPL-4396923
...
179
Panel Broiler Door WPL-7G0200180B
...
198
Panel, End (Left) WPL-7E06001941
...
199
Panel, End (Right) WPL-7E06002041
...
206
Panel Oven Door WPL-7G0080060B
...
208
Rack, Oven WPL-OR01001811
...
226
Seal, Broiler Door WPL-OS02702043
...
227
Seal, Oven Door (Right) WPL-OS00602043
...
237
Socket, Nite Lite WPL-OS03901743
...
238
Socket, Oven Light (Hex) WPL-OS04000199
...
243
Spring, Oven Door WPL-OS00100799
...
249
Spring, Oven Door WPL-OS00100799
...
251
Stop, Roller Oven Door WPL-OS00500299
...
260
Support Broiler Door Hinge WPL-7G42700122
...
261
Support Broiler Door Hinge WPL-7G42700222
...
264
Support Oven Door Hinge WPL-7G12703322
...
265
Support Oven Door Hinge WPL-7G12703422
...
274
Switch, Light(Incandescent) WPL-OS03004111
...
289
Procelain Broiler (Pan And Grid) WPL-4396923
