Ikea IMBS104GSS01

Model: IMBS104GSS01

Save Part Not Listed?
product name

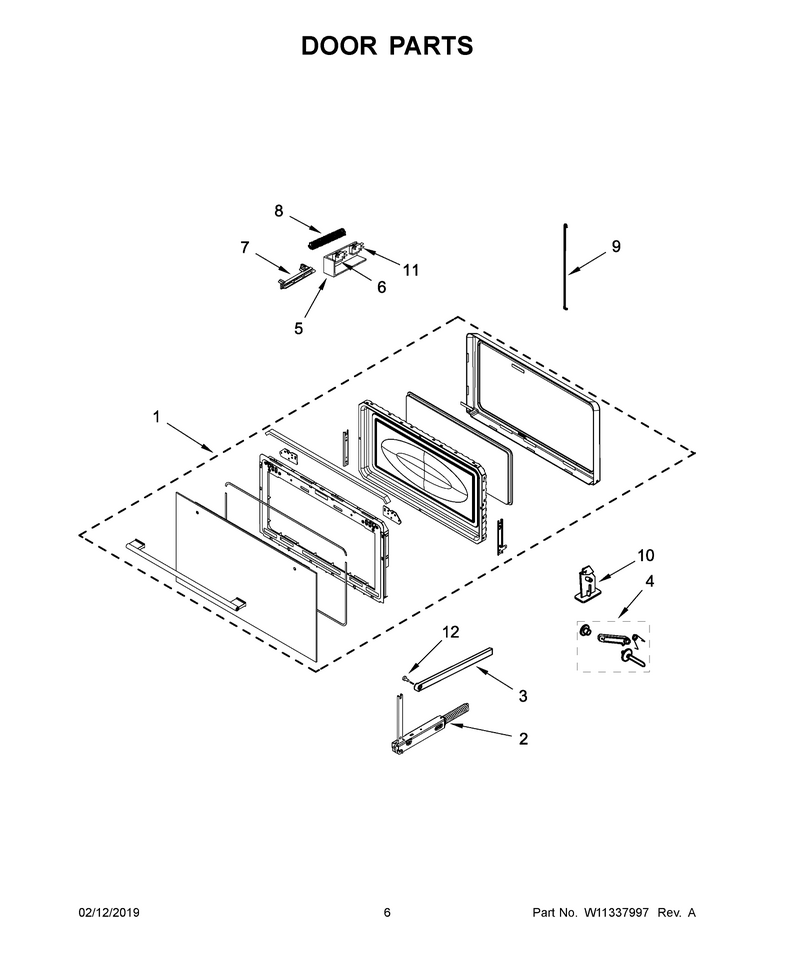

04 - Door Parts

...
...
1
Assembly, Door (Stainless) WPL-W10721486
...
2
Hinge, Door WPL-W11101061
...
3
Arm WPL-W11214480
...
4
Arm WPL-WPW10128850
...
5
Interlock WPL-WP8205683
...
6
Switch, Micro V15t16-Cz200 WPL-W10211972
...
7
Rod-Rel WPL-WPW10120235
...
8
Spring WPL-W11715912
...
9
Spring WPL-W11700292
...
10
Support WPL-W11684510
...
11
Switch, Micro V15t16-Cz200 WPL-W10211972
...
12
Arm WPL-WPW10128850

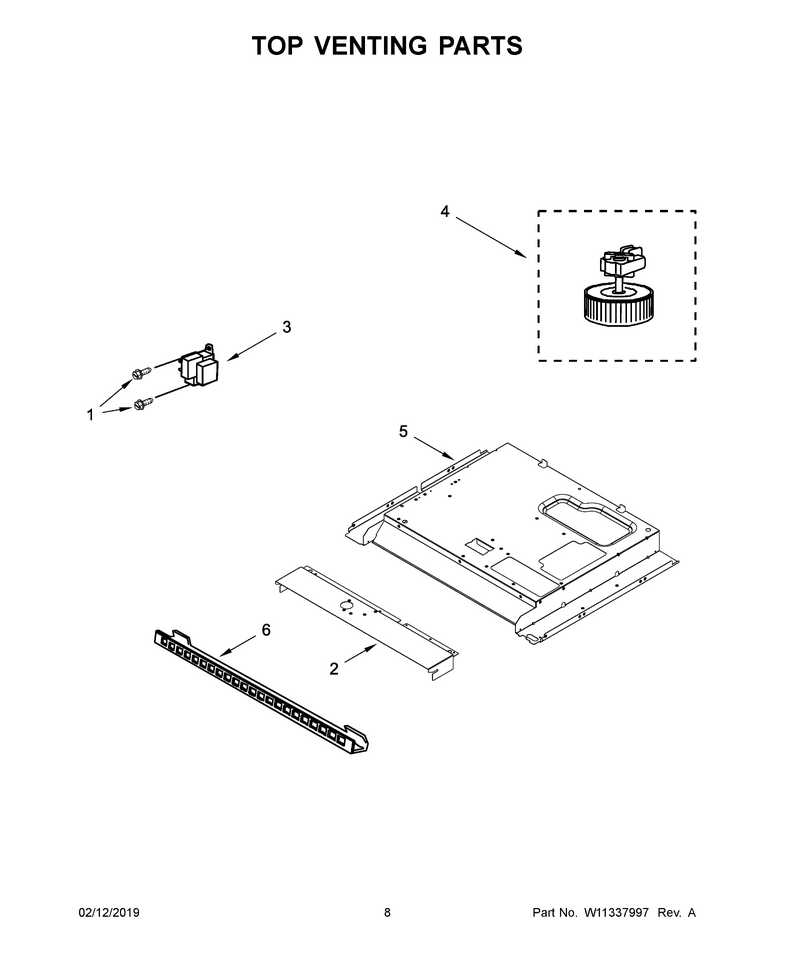

05 - Top Venting Parts

...
...
1
Screw WPL-461967825321
...
2
Plate, Cover WPL-461968956142
...
3
Transformr WPL-W11238401
...
4
Motor, Fan Assy WPL-W10426308
...
5
Chassis, Top WPL-W10782523
...
6
Vent, Panel WPL-461967749811

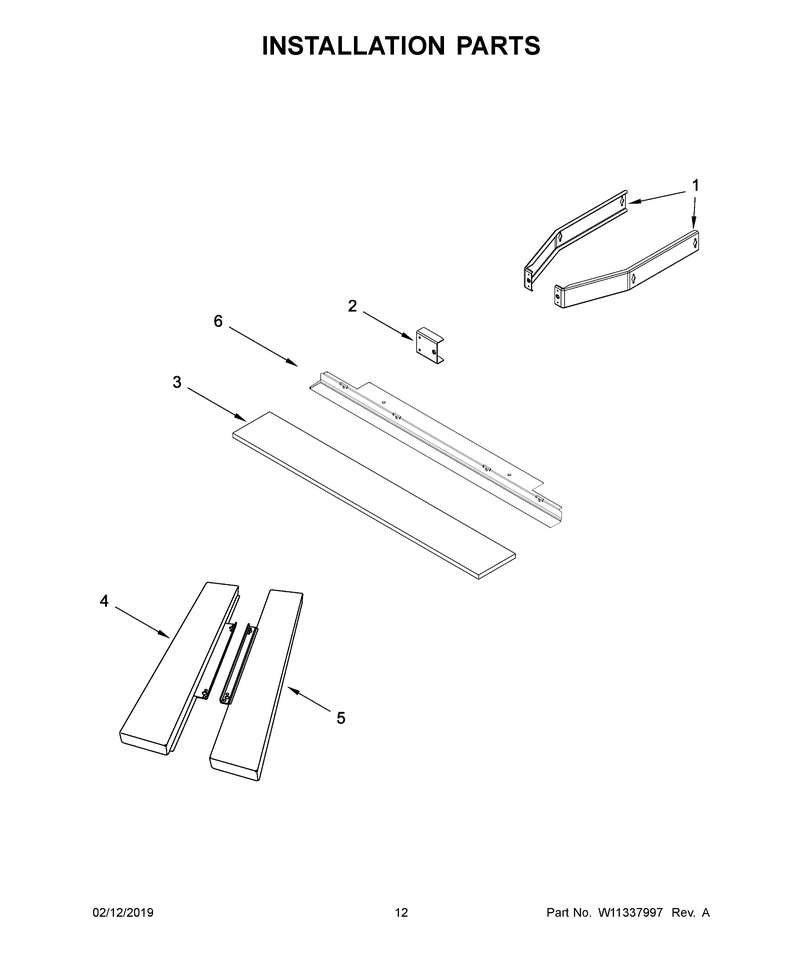

07 - Installation Parts

...
...
1
Brkt-Mount WPL-W10775910
...
2
Tip, Mounting Bracket WPL-W10731693
...
3
Rail, Distance WPL-W10769061
...
4
Trim WPL-W11160291
...
5
Trim WPL-W11160312
...
6
Trim WPL-W11160534

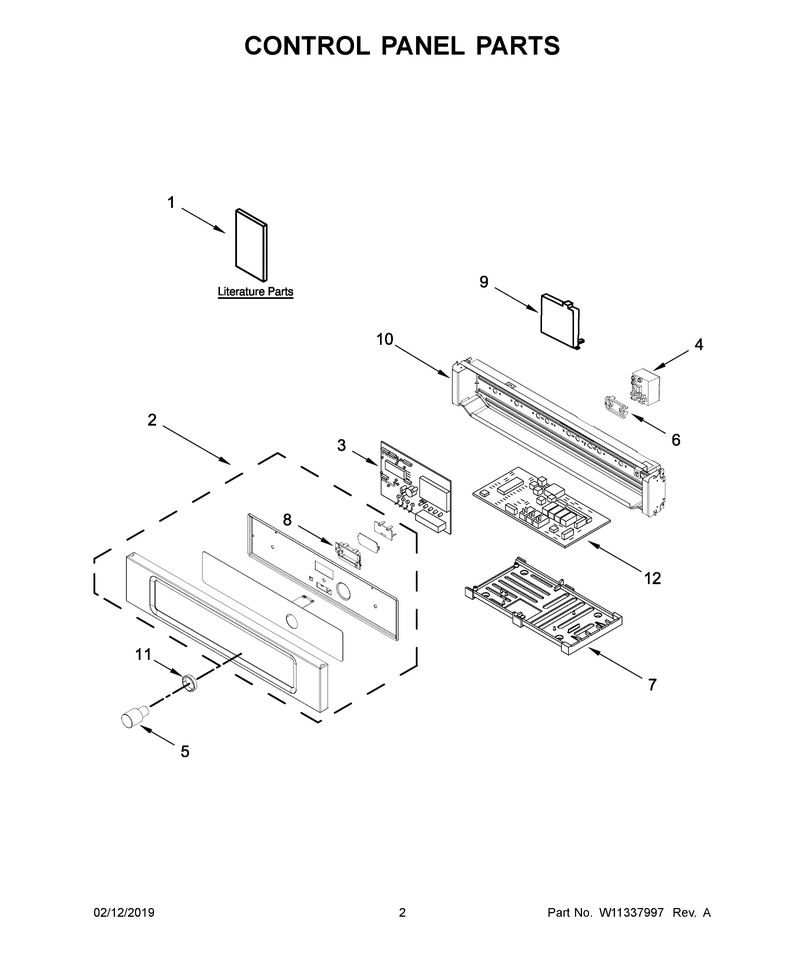

02 - Control Panel Parts

...
...
NI
Harness, Sensor WPL-W11356971
...
1E
Diagram, Wiring (English & French) WPL-W11045675
...
1G
Sheet, Tech (English & French) WPL-W10909742
...
1F
Diagram, Wiring (Spanish) WPL-W11085080
...
1D
Cooking Guide Label (French) WPL-W11051706
...
1C
Cooking Guide Label (English) WPL-W11041532
...
1B
Use And Care Guide WPL-W10909665
...
1A
Instructions, Installation (Ikea) WPL-W10811362
...
1
Installation Instructions WPL-W10909666
...
2
Panl-Cntrl WPL-W11160285
...
3
Cntrl-Elec WPL-W11160286
...
4
Cntrl-Elec WPL-WPW10623991
...
5
Knob WPL-W10448758
...
6
Spacer, Dial WPL-W10837437
...
7
Holder, Pcb WPL-461967750752
...
8
Holder, Display Board WPL-461967750153
...
9
Support WPL-W10884489
...
10
Support WPL-W11660273
...
11
Ring WPL-461960204731
...
12
Cntrl-Elec WPL-W11196485

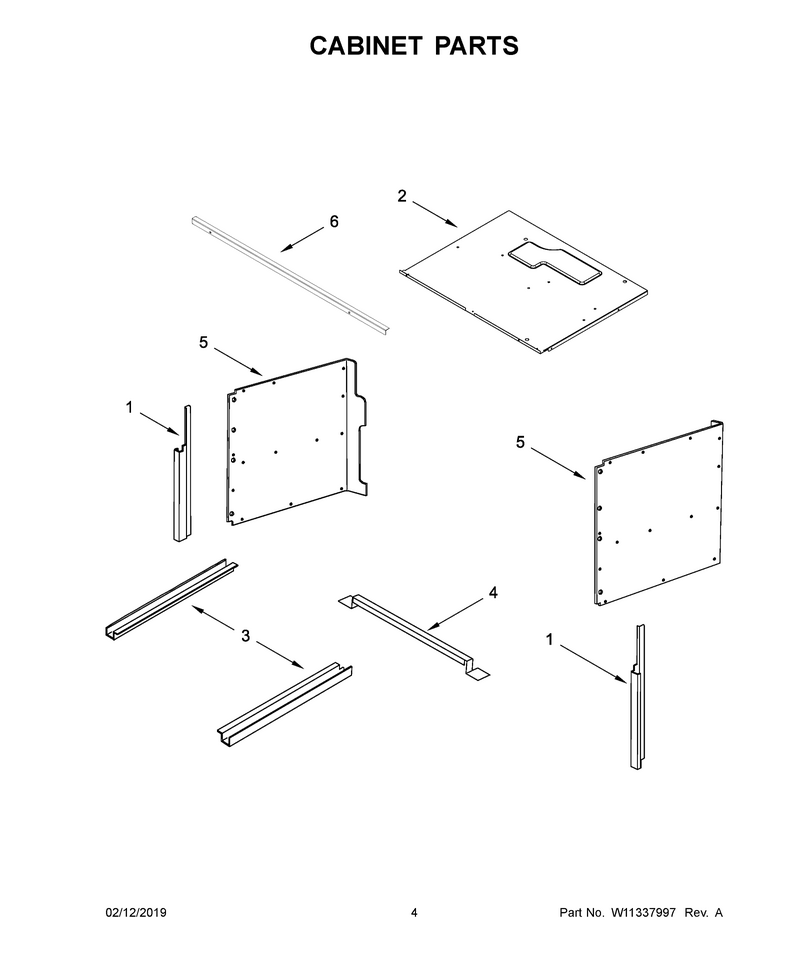

03 - Cabinet Parts

...
...
1
Trim WPL-W11160288
...
1A
Trim WPL-W11160289
...
2
Plate, Top WPL-W10693404
...
3
Support, Bottom WPL-8205707
...
4
Bracket, Bottom WPL-8205708
...
5
Chassis, Side (Left) WPL-8205674
...
5A
Chassis, Side (Right) WPL-W10693408
...
6
Trim WPL-W11339783

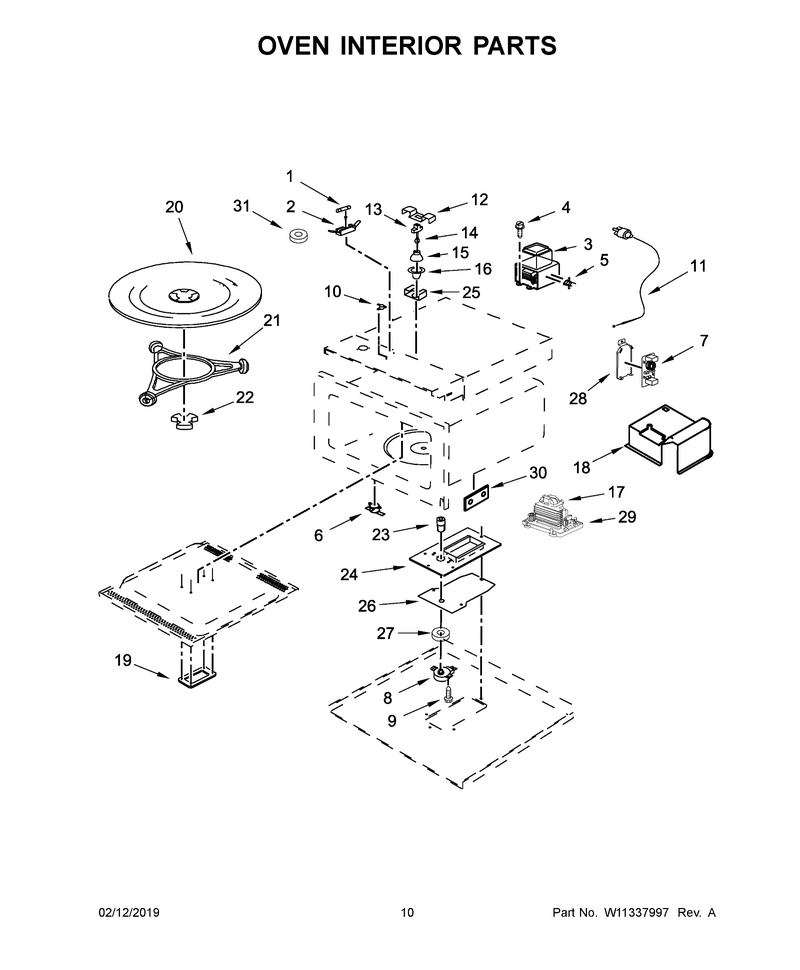

06 - Oven Interior Parts

...
...
1
Fuse WPL-W11188752
...
2
Holder, Fuse WPL-W10245194
...
3
Magnetron WPL-W11226475
...
4
Screw WPL-8205651
...
5
Thrmst-Fix WPL-WP4375079
...
6
Thermostat WPL-W10141630
...
7
Filter, Noise WPL-W10591655
...
8
Motor-Turn WPL-W10911403
...
9
Screw WPL-461967825321
...
10
Thrmst-Fix WPL-W11676348
...
11
Cord, Power WPL-W10549524
...
12
Spring, Lamp Holder WPL-W10474015
...
13
Housng-Lmp WPL-WPW10490593
...
14
Lmp-Basles WPL-W10886919
...
15
Reflector WPL-423107022541
...
16
Lens-Lamp WPL-W11193483
...
17
Inverter WPL-W11325604
...
18
Cover, Inverter WPL-W10130907
...
19
Covr-Inlet WPL-W11087199
...
20
Tray-Cook WPL-W11373838
...
21
Assembly, Turntable Ring WPL-W10422379
...
22
Shaft-Turn WPL-W11223840
...
23
Shaft-Turn WPL-W11126044
...
24
Holder, Turntable Motor WPL-461967008471
...
25
Clip, Spring WPL-W10120231
...
26
Cover, Motor WPL-W10120234
...
27
Ring, Rubber WPL-W10769146
...
28
Holder, Filter WPL-W10130891
...
29
Holder, Inverter WPL-461967752331
...
30
Cover-Plt WPL-W10915651
...
31
Sealing, Lamp WPL-W10769147
