Husqvarna iZ25 (968999771) (2008-01) Ride Mower (Turf Care)

Model: iZ25 (968999771) (2008-01)

Back To Assemblies

Save Part Not Listed?
product name

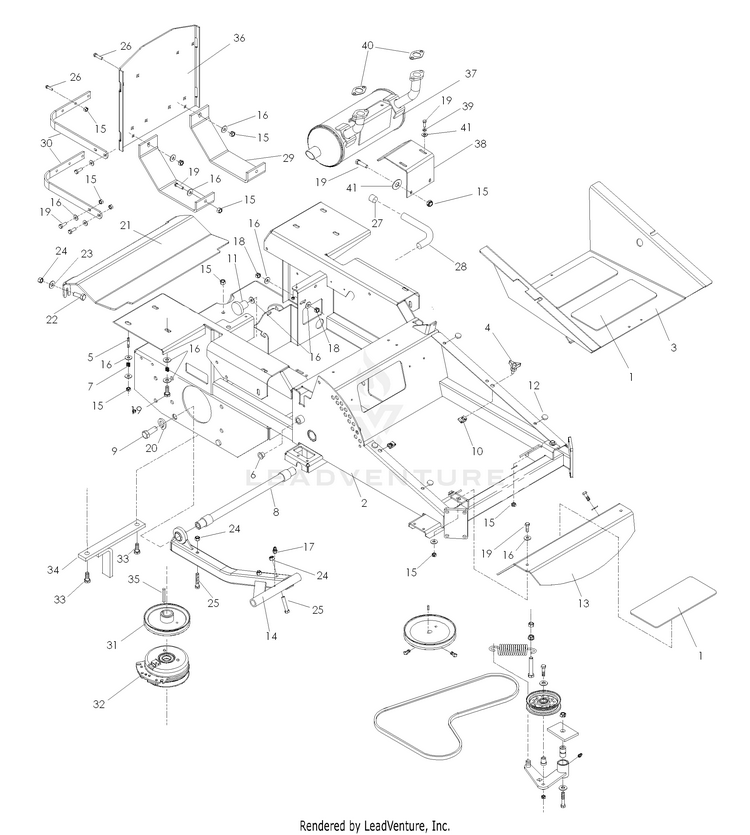

Chassis, Engine & Pulleys

...
...
1
ANTI-SKID PAD HUS-539977778
...
2
IZ FRAME W/DECALS HUS-539111098
...
3
IZ FOOTPLATE W/DECAL HUS-539111573
...
4
GSPW Knobs HUS-597783101
...
5
STUD, 5/16C HUS-539102502
...
6
BUSHING HUS-539102519
...
7
SPRING HUS-539102845
...
8
STRUT MOUNT WELDMENT HUS-539104197
...
9
HCS 5/8C X 2 GR.5 HUS-539104199
...
10
U-CLIP 5/16-18 NUT RETAINER HUS-539104763
...
11
KNOB HUS-539105169
...
12
GROMMET, BUMPER HUS-539102587
...
13
FOOTREST ORANGE HUS-539106941
...
14
STRUT, RT HUS-539110806
...
14
STRUT, LT HUS-539110807
...
15
Nuts HUS-596583702
...
16
GSPH HUS-596134901
...
17
GSPW Zerks HUS-596899901
...
18
Nuts HUS-596580701
...
19
Bolts HUS-596580801
...
20
LOCKWASHER 5/8 HUS-539990333
...
21
REAR GUARD HUS-539112953
...
22
SCREW 3/8C X 3/4 HEX CAP HUS-539990134
...
23
GSPW Washers HUS-596433701
...
24
GSPW Nuts HUS-596240901
...
25
HCS 3/8C X 2 HUS-539990588
...
26
Bolts HUS-596435701
...
27
DRAIN CAP HUS-539101364
...
28
OIL DRAIN HOSE HUS-539101362
...
29
SKID PLATE HUS-539106957
...
30
ENGINE SHROUD BRKT HUS-539106961
...
31
PULLEY HUS-539112774
...
32
ELECTRIC CLUTCH W/CABLE HUS-539105406
...
32
CLUTCH-200 FT LB(RPLS 5218-102 HUS-539106880
...
33
SCREW HUS-874780528
...
34
CLUTCH TIE DOWN HUS-539106819
...
35
KEY, 1/4 SQ X 1 1/4 HUS-539912757
...
36
ENGINE GUARD HUS-539106959
...
37
MUFFLER KAWASAKI GEN II HUS-539105897
...
38
MUFFLER BRACKET BLACK HUS-539111093
...
39
WASHER SPRING LOCK WASHER WITH HUS-596238801
...
40
EXHAUST GASKET - KAW HUS-539108199
...
41
GSPH HUS-596134901
...
41
KAW PIGTAIL (KAWASAKI) NOT SHOWN HUS-539104415
...
41
KOH PIGTAIL (KOHLER) NOT SHOWN HUS-539104416
