Husqvarna iZ 6125 TKOA (2006-02) Ride Mower (Turf Care)

Model: iZ 6125 TKOA (2006-02)

Back To Assemblies

Save Part Not Listed?
product name

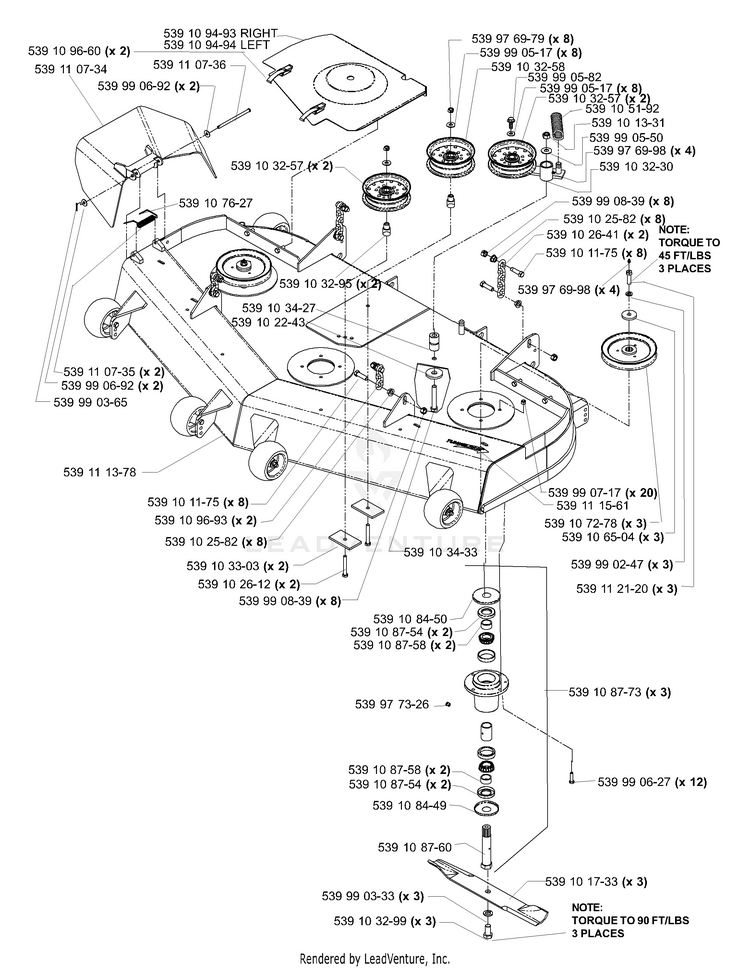

Deck Assembly 61" (Part 1)

...
...
539101175
Bolts HUS-594944601
...
539101331
GSPW NUTS HUS-596135601
...
539101733
BLADE OEM 21" (61" DECK) HUS-539101733
...
539102243
Washers HUS-596437501
...
539102582
Nuts HUS-596577901
...
539102612
SCREW 3/8C X 2 3/4 HEX CAP HUS-539102612
...
539102641
LIFT HUS-594722002
...
539103230
IDLER ARM HUS-539103230
...
539103257
IDLER PULLEY HUS-539103257
...
539103258
IDLER PULLEY (TALL) HUS-539103258
...
539103295
IDLER BUSHING HUS-539103295
...
539103299
HCS 5/8F X 1 1/4 HUS-539103299
...
539103303
Washers HUS-596770301
...
539103427
PIVOT BUSHING HUS-539103427
...
539103433
HCS 1/2C X 3 1/4 HUS-539103433
...
539105192
DECK SPRING HUS-539105192
...
539106504
Washers HUS-596770301
...
539107278
PULLEY, 61 HUS-539112125
...
539107627
CAP-SLEEVE LT HUS-532105304
...
539108449
BOTTOM DUST CAP HUS-539108449
...
539108450
TOP DUST CAP HUS-539108450
...
539108754
SHAFT SEAL HUS-539108754
...
539108758
SPACER HUS-539108758
...
539108760
SPINDLE 52/61 HUS-539112122
...
539108773
KIT HSG ASM 52/61 HUS-966956101
...
539109493
61 BELT SHIELD ASM - RH HUS-539109493
...
539109494
61 BELT SHIELD ASM - LH HUS-539109494
...
539109660
DRAW LATCH HUS-539109660
...
539109693
Chains HUS-594722001
...
539110734
DISCHARGE CHUTE 61" HUS-539110734
...
539110735
Springs HUS-596646001
...
539110736
Pins HUS-595935501
...
539111378
DECK W/DECALS 61" HUS HUS-539111378
...
539111561
DECAL, TUNNEL RAM 8" HUS-539111561
...
539112120
HCS 7/16-20 GD 8 SPEC HUS-539112120
...
539976979
GSPW Nuts HUS-596240901
...
539976998
GSPW Zerks HUS-596899901
...
539977326
PLUG-VENTED HUS-539977326
...
539990247
Washers HUS-596238901
...
539990333
LOCKWASHER 5/8 HUS-539990333
...
539990365
Pins HUS-596029501
...
539990517
GSPW Washers HUS-596433701
...
539990550
Washers HUS-595316401
...
539990582
Screws HUS-596583101
...
539990627
HCS 5/16C X 1 1/4 HUS-539990627
...
539990692
GSPH HUS-596134901
...
539990717
Nuts HUS-596583702
...
539990839
NUT 7/16C CENTERLOCK HUS-539990839
