Husqvarna iZ 5225 TSPKOA (2006-02) Ride Mower (Turf Care)

Model: iZ 5225 TSPKOA (2006-02)

Back To Assemblies

Save Part Not Listed?
product name

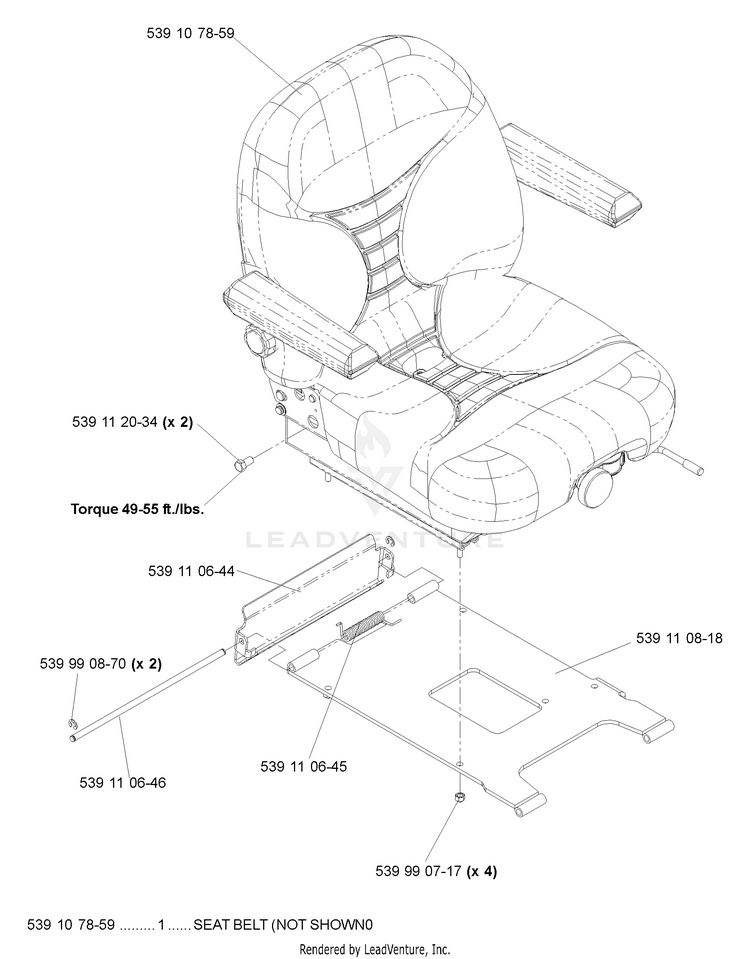

Seat Assembly

...
...
539107859
SEAT for units produced before Serial No. 074439861 HUS-539130874
...
539110644
SEAT LATCH BRACKET HUS-539110644
...
539110645
TORSION SPRING (SEAT) HUS-539110645
...
539110646
SEAT LATCH ROD HUS-539110646
...
539110818
SEAT ASM, STANDARD HUS-539110818
...
539112034
HCS 7/16-20 X .75 GD 5 HUS-539112034
...
539990717
Nuts HUS-596583702
...
539990870
E RING 3/8" HUS-539990870
...
539107859
SEAT for units produced before Serial No. 074439861 (NOT SHOWN) HUS-539130874
