Husqvarna iZ 5224 TLKAO (2006-02) Ride Mower (Turf Care)

Model: iZ 5224 TLKAO (2006-02)

Back To Assemblies

Save Part Not Listed?
product name

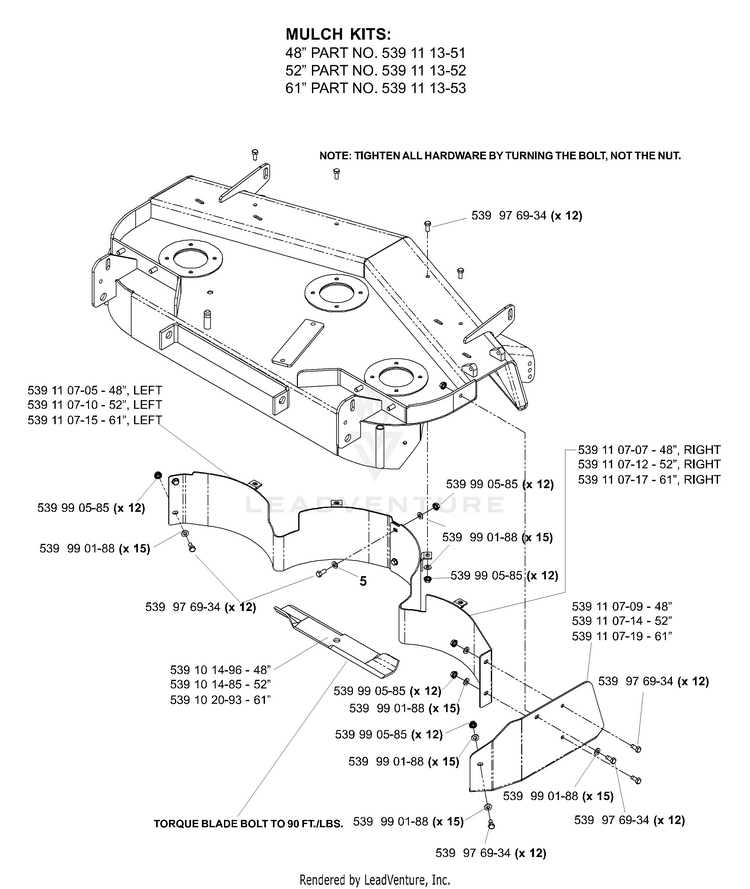

Accessories (Mulch Kit)

...
...
539101485
BLADE, MULCH 18" HUS-539101485
...
539101496
BLADE, MULCH, 16 1/4" HUS-539101496
...
539102093
BLADE, MULCH 21" HUS-539102093
...
539110705
BAFFLE WLDMT 42" LH HUS-539110705
...
539110707
BAFFLE WLDMT 48 RH HUS-539110707
...
539110709
MULCH CAP 48 HUS-539110709
...
539110710
BAFFLE WLDMT, 52" L.H. HUS-539110710
...
539110712
BAFFLE WLDMT, 52" R.H. MULCH HUS-539110712
...
539110714
MULCH CAP 52 HUS-539110714
...
539110715
BAFFLE WLDMT, 61" L.H. MULCH HUS-539110715
...
539110717
BAFFLE WLDMT 61" R.H. MULCH HUS-539110717
...
539111351
MULCH KIT, 48 " HUS-539111351
...
539111352
MULCH KIT, 52 " HUS-539111352
...
539111353
MULCH KIT, 61 " HUS-539111353
...
539976934
SCREW HEXAGON HEAD SCREW 5/16- HUS-596030501
...
539990188
WASHER 11/32 X 11/16 X 14 GA T HUS-596204101
...
539990585
GSPW Hardware HUS-596039201
