product name

Husqvarna iZ 5224 TLKAO (2006-02) Ride Mower (Turf Care)

Model: iZ 5224 TLKAO (2006-02)

Back To Assemblies

Save Part Not Listed?
product name

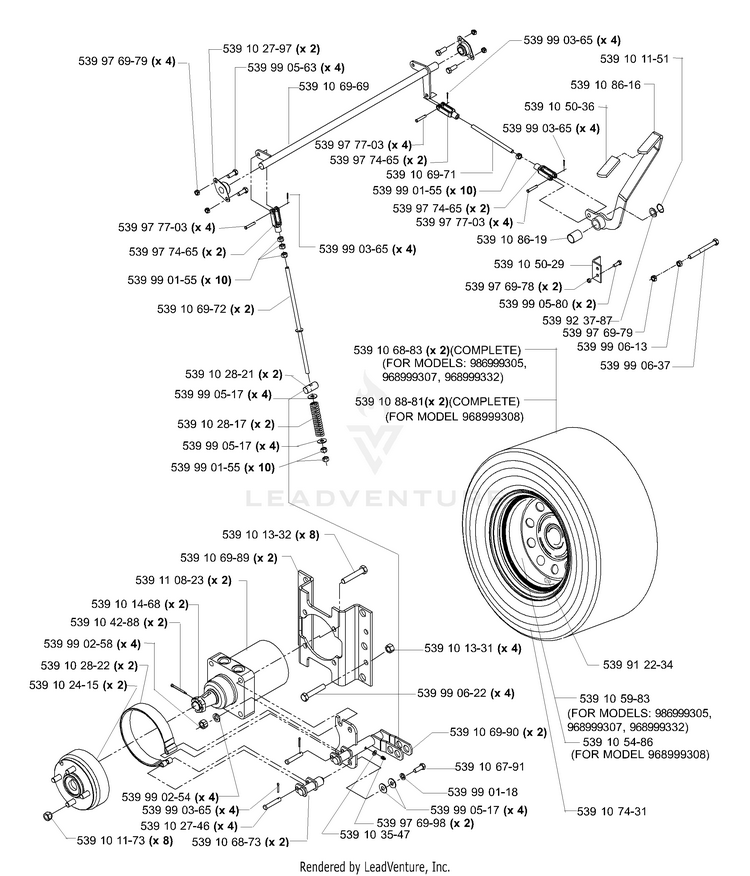

Park Brake Assembly (TL)

...
...
539101151
RETAINING RING, 7/8" HUS-539101151
...
539101173
Nuts HUS-587653903
...
539101331
GSPW NUTS HUS-596135601
...
539101332
HCS 1/2C X 2 3/4 HUS-539101332
...
539101468
NUT 3/4-16 HEX SLTD GR5 ZD HUS-539101468
...
539102415
HUB W/BRAKE DRUM HUS-539102415
...
539102746
CLEVIS PIN HUS-539102746
...
539102797
FLANGE BEARING HUS-539102797
...
539102817
COMPRESSION SPRING HUS-539102817
...
539102821
TRUNION PIN HUS-539102821
...
539102822
BRAKE BAND HUS-539102822
...
539103547
WASHER HUS-539103547
...
539104288
PIN COTTER 4MM X 45MM HUS-539104288
...
539105029
BRACKET HUS-539105029
...
539105036
GRIP, PARK BRAKE HUS-539105036
...
539105486
WHEEL/TIRE.ASM.24X12-12.SILVER HUS-539105486
...
539108616
BRAKE LEVER WLDMT HUS-539108616
...
539105983
RIM 0 OFFSET 8.5" WIDE HUS-539105983
...
539106791
HEX BOLT 3/8 X 1" HUS-539106791
...
539106873
BRAKE BAND SUPPORT HUS-539106873
...
539106883
WHEEL/TIRE.ASM.23X10.5-12.GREY HUS-539106883
...
539106969
BRAKE CROSS SHAFT HUS-539106969
...
539106971
LINKAGE - SHORT HUS-539106971
...
539106972
LINKAGE HUS-539106972
...
539106989
MOTOR STANDOFF HUS-539106989
...
539106990
BRAKE WLDMNT HUS-539106990
...
539107431
TIRE.TURF.MASTER.23X10.5-12 HUS-539107431
...
539108619
BUSHING HUS-539108619
...
539108881
WHEEL ASM, 23 X 10.5 HUS-576356701
...
539110823
TL15 WHEEL MOTOR HUS-539110823
...
539912234
VALVE STEM TR-412 HUS-539912234
...
539923787
BSHG .875 X 1.375 X .074 ZD HUS-539923787
...
539976978
NUT FLG, NYLOCK, 1/4-20 GR G C HUS-582478602
...
539976979
GSPW Nuts HUS-596240901
...
539976998
GSPW Zerks HUS-596899901
...
539977465
Yoke HUS-596739901
...
539977703
CLEVIS PIN 3/8 X 1 1/8 HUS-539977703
...
539990118
Washers HUS-596238701
...
539990155
NUT 3/8F HUS-539990155
...
539990254
WASHER 1/2" SPLIT LOCK HUS-539990254
...
539990258
NUT HEX 1/2 HUS-539990258
...
539990365
Pins HUS-596029501
...
539990517
GSPW Washers HUS-596433701
...
539990563
Bolts HUS-596564401
...
539990580
Screws HUS-596230901
...
539990613
Washers HUS-596583501
...
539990622
HCS 1/2C X 1 1/4 SERRATED HEAD HUS-539990622
...
539990637
Bolts HUS-596434201
