Husqvarna iZ 5224 TLKAO (2006-02) Ride Mower (Turf Care)

Model: iZ 5224 TLKAO (2006-02)

Back To Assemblies

Save Part Not Listed?
product name

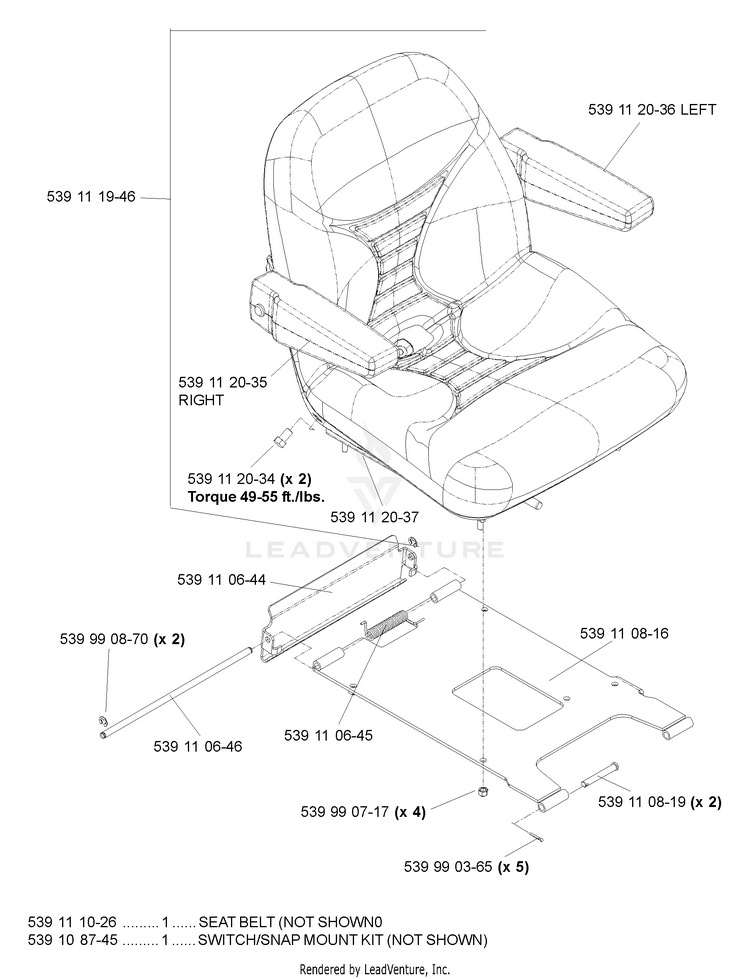

Seat Assembly

...
...
539110644
SEAT LATCH BRACKET HUS-539110644
...
539110645
TORSION SPRING (SEAT) HUS-539110645
...
539110646
SEAT LATCH ROD HUS-539110646
...
539110816
SEAT MOUNTED WLDMT HUS-539110816
...
539110819
CLEVIS PIN 3/8 HUS-539110819
...
539111946
SEAT.ASM.907.TRACK.W/O.BELT HUS-501580402
...
539112034
HCS 7/16-20 X .75 GD 5 HUS-539112034
...
539112035
KIT, ARM REST, RH ROUND END HUS-574201601
...
539112036
KIT, ARM REST, LH ROUND END HUS-574201602
...
539112037
TRACK ADJUSTMENT KIT HUS-539112037
...
539990365
Pins HUS-596029501
...
539990717
Nuts HUS-596583702
...
539990870
E RING 3/8" HUS-539990870
...
539111026
SEAT BELT (NOT SHOWN) HUS-539111026
...
539108745
SWITCH-SNAP MOUNT KIT (NOT SHOWN) HUS-539108745
