Husqvarna iZ 4819 TSKAA (2006-02) Ride Mower (Turf Care)

Model: iZ 4819 TSKAA (2006-02)

Back To Assemblies

Save Part Not Listed?
product name

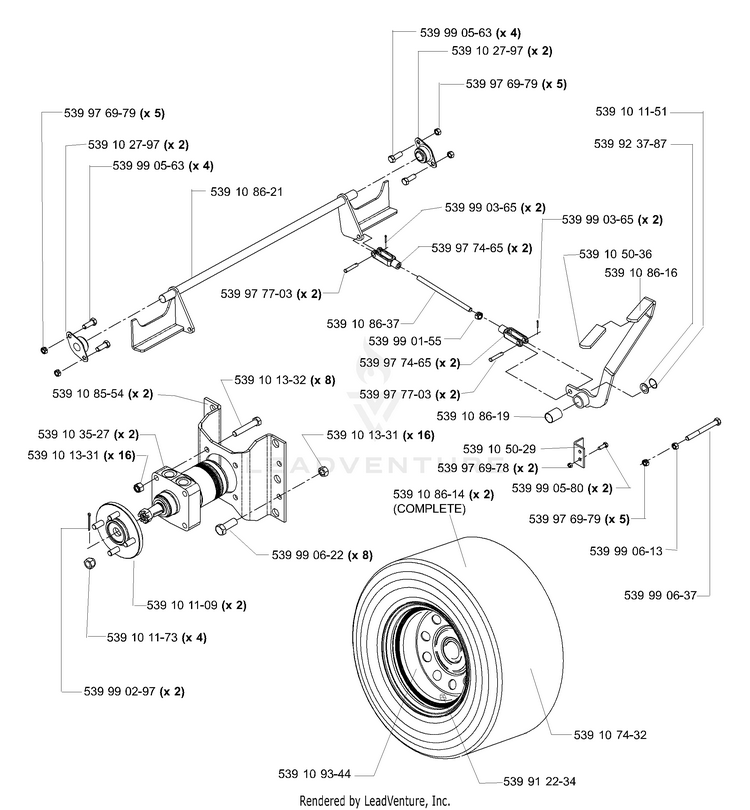

Park Brake Assembly (TE)

...
...
539101109
HUB.WHEEL.ZTR HUS-539101109
...
539101151
RETAINING RING, 7/8" HUS-539101151
...
539101173
Nuts HUS-587653903
...
539101331
GSPW NUTS HUS-596135601
...
539101332
HCS 1/2C X 2 3/4 HUS-539101332
...
539102797
FLANGE BEARING HUS-539102797
...
539103527
WHEEL MOTOR HUS-539103527
...
539105029
BRACKET HUS-539105029
...
539105036
GRIP, PARK BRAKE HUS-539105036
...
539107432
TIRE 23X8.5-12 HUS-522905001
...
539108554
MOTOR STANDOFF, TE, BLK HUS-539108554
...
539108614
TIRE WHEEL ASM 23X8.5-12 HUS-539108614
...
539108616
BRAKE LEVER WLDMT HUS-539108616
...
539108619
BUSHING HUS-539108619
...
539108621
BRAKE SHAFT WLDMT HUS-539108621
...
539108637
LINKAGE HUS-539108637
...
539109344
RIM - 12 X 7 HUS-539109344
...
539912234
VALVE STEM TR-412 HUS-539912234
...
539923787
BSHG .875 X 1.375 X .074 ZD HUS-539923787
...
539976978
NUT FLG, NYLOCK, 1/4-20 GR G C HUS-582478602
...
539976979
GSPW Nuts HUS-596240901
...
539977465
Yoke HUS-596739901
...
539977703
CLEVIS PIN 3/8 X 1 1/8 HUS-539977703
...
539990155
NUT 3/8F HUS-539990155
...
539990297
COTTER PIN HUS-539990297
...
539990365
Pins HUS-596029501
...
539990563
Bolts HUS-596564401
...
539990580
Screws HUS-596230901
...
539990613
Washers HUS-596583501
...
539990622
HCS 1/2C X 1 1/4 SERRATED HEAD HUS-539990622
...
539990637
Bolts HUS-596434201
