product name

Husqvarna iZ 4819 TSKAA (2006-02) Ride Mower (Turf Care)

Model: iZ 4819 TSKAA (2006-02)

Back To Assemblies

Save Part Not Listed?
product name

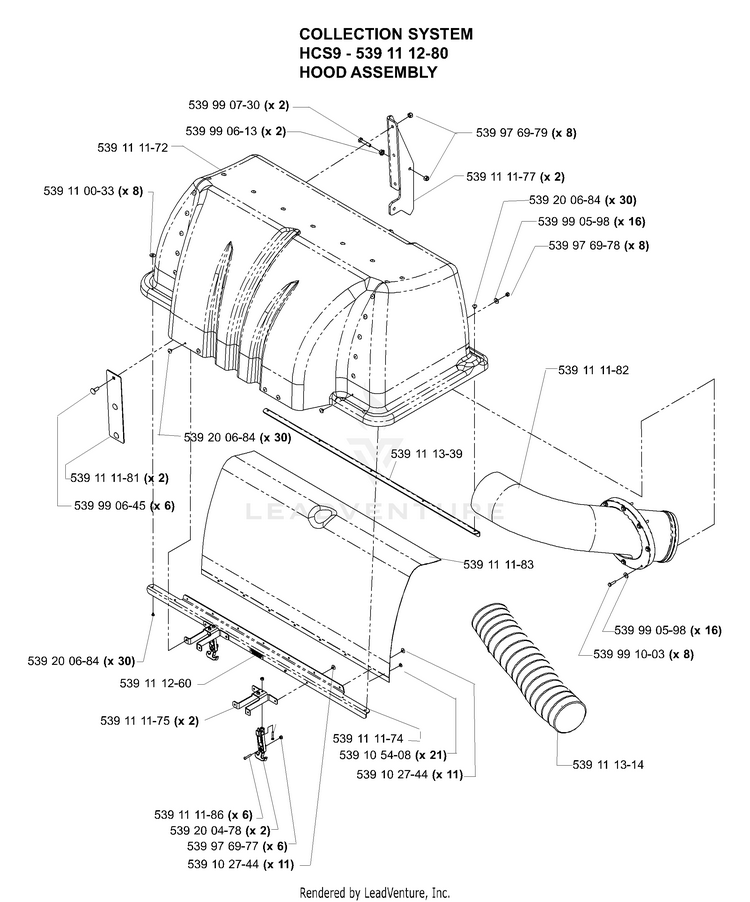

Accessories (Hood Assembly)

...
...
539102744
RIVET E/16 X 1/4 LG FLG HUS-539102744
...
539105408
WASHER #10 HUS-539105408
...
539110033
WASHER, #10 MACH SCR BLK OX HUS-539110033
...
539111172
HOOD HUS-539111172
...
539111174
HOOD SUPPORT HUS-539111174
...
539111175
SUPPORT, DRAW LATCH HUS-539111175
...
539111177
HOOD HINGE HUS-539111177
...
539111181
MOUNT PLATE HUS-539111181
...
539111182
INLET TUB HUS-539111182
...
539111183
MESH, POLY DIAMOND HUS-539111183
...
539111260
DECAL, VENTILATION HUS-539111260
...
539111280
Hood Assembly Collection System (HSC9) HUS-539111280
...
539111314
HOSE 7 X 54 CLEAR HUS-539111314
...
539111339
HOOD SUPPORT, REAR HUS-539111339
...
539200478
LATCH HUS-540200478
...
539200684
RIVERT, 3/16, STAVEX HUS-539200684
...
539976977
Hardware HUS-596040801
...
539976978
NUT FLG, NYLOCK, 1/4-20 GR G C HUS-582478602
...
539976979
GSPW Nuts HUS-596240901
...
539990598
Washers HUS-597338501
...
539990613
Washers HUS-596583501
...
539990645
Bolts HUS-595316801
...
539990730
Bolts HUS-596583901
...
539991003
BOLT 1/4C X 1 3/4 HUS-539991003
...
593111186
HUS-593111186
