Husqvarna iZ 4819 TSKAA (2006-02) Ride Mower (Turf Care)

Model: iZ 4819 TSKAA (2006-02)

Back To Assemblies

Save Part Not Listed?
product name

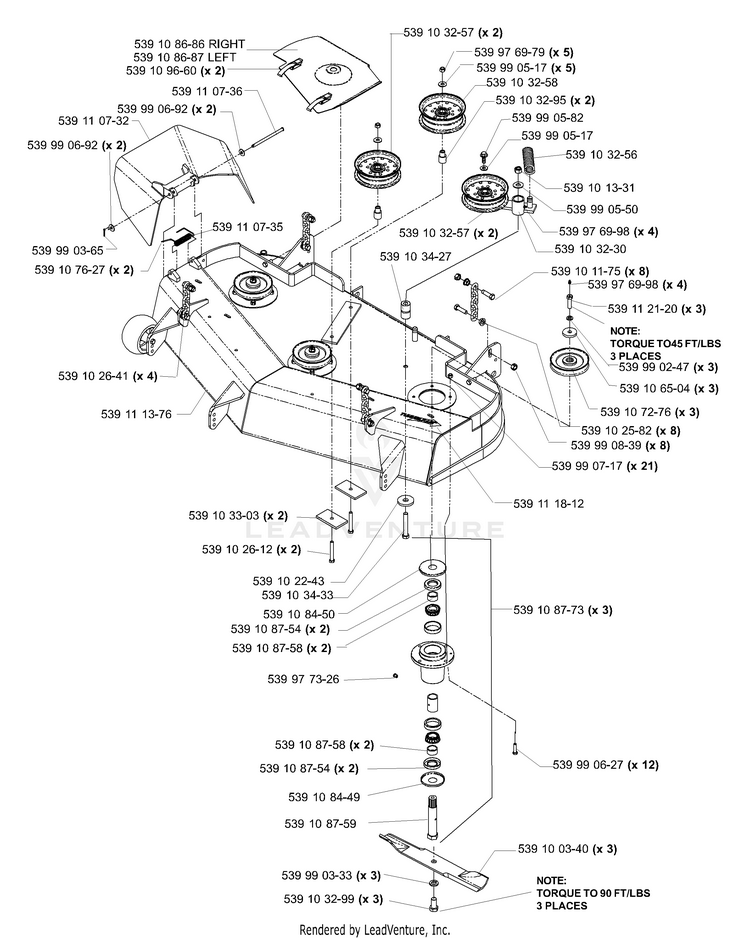

Deck Assembly 48" (Part 1)

...
...
539100340
BLADE OEM 16 1/4" HUS-539100340
...
539101175
Bolts HUS-594944601
...
539101331
GSPW NUTS HUS-596135601
...
539102243
Washers HUS-596437501
...
539102582
Nuts HUS-596577901
...
539102612
SCREW 3/8C X 2 3/4 HEX CAP HUS-539102612
...
539102641
LIFT HUS-594722002
...
539103230
IDLER ARM HUS-539103230
...
539103256
SPRING HUS-539103256
...
539103257
IDLER PULLEY HUS-539103257
...
539103258
IDLER PULLEY (TALL) HUS-539103258
...
539103295
IDLER BUSHING HUS-539103295
...
539103299
HCS 5/8F X 1 1/4 HUS-539103299
...
539103303
Washers HUS-596770301
...
539103427
PIVOT BUSHING HUS-539103427
...
539103433
HCS 1/2C X 3 1/4 HUS-539103433
...
539106504
Washers HUS-596770301
...
539107276
PULLEY 42-48 HUS-539112141
...
539107627
CAP-SLEEVE LT HUS-532105304
...
539108449
BOTTOM DUST CAP HUS-539108449
...
539108450
TOP DUST CAP HUS-539108450
...
539108686
48 BELT SHIELD ASM - RH HUS-539108686
...
539108687
48 BELT SHIELD ASM - LH HUS-539108687
...
539108754
SHAFT SEAL HUS-539108754
...
539108758
SPACER HUS-539108758
...
539108759
SPLINED SHAFT - 42/48" HUS-539108759
...
539108773
KIT HSG ASM 52/61 HUS-966956101
...
539109660
DRAW LATCH HUS-539109660
...
539110732
DISCHARGE CHUTE 48" HUS-539110732
...
539110735
Springs HUS-596646001
...
539110736
Pins HUS-595935501
...
539111376
DECK W/DECALS 48" HUS HUS-539111376
...
539111812
DECAL, TUNNEL RAM 6" HUS-539111812
...
539112120
HCS 7/16-20 GD 8 SPEC HUS-539112120
...
539976979
GSPW Nuts HUS-596240901
...
539976998
GSPW Zerks HUS-596899901
...
539977326
PLUG-VENTED HUS-539977326
...
539990247
Washers HUS-596238901
...
539990333
LOCKWASHER 5/8 HUS-539990333
...
539990365
Pins HUS-596029501
...
539990517
GSPW Washers HUS-596433701
...
539990550
Washers HUS-595316401
...
539990582
Screws HUS-596583101
...
539990627
HCS 5/16C X 1 1/4 HUS-539990627
...
539990692
GSPH HUS-596134901
...
539990717
Nuts HUS-596583702
...
539990839
NUT 7/16C CENTERLOCK HUS-539990839
