Husqvarna iZ 4819 TSKAA (2006-02) Ride Mower (Turf Care)

Model: iZ 4819 TSKAA (2006-02)

Back To Assemblies

Save Part Not Listed?
product name

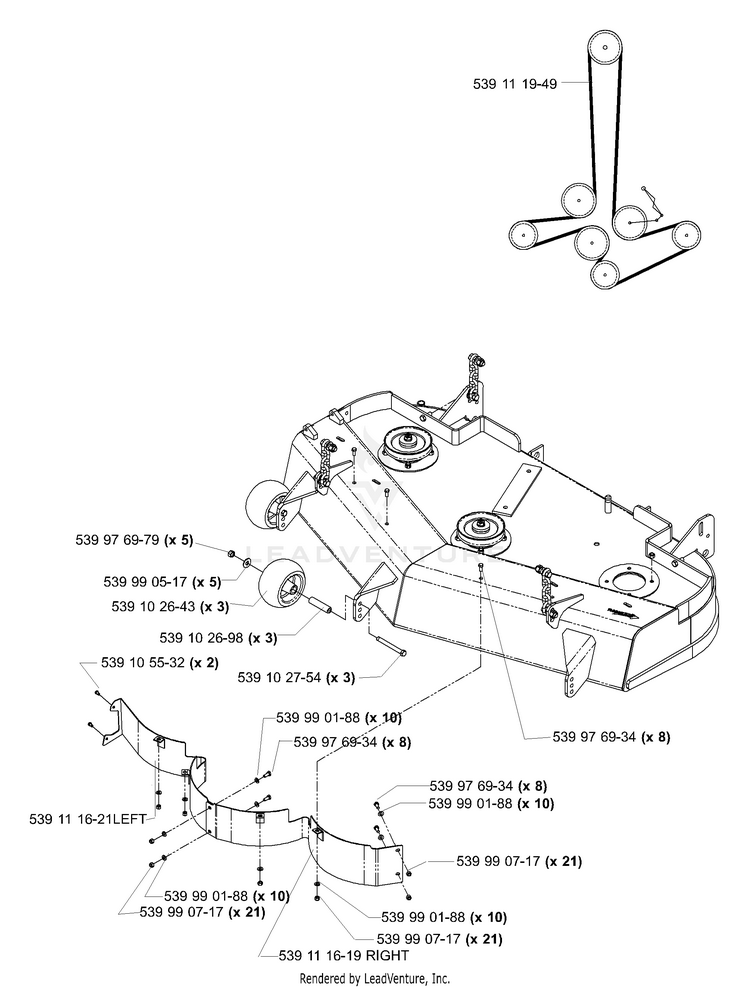

Deck Assembly 48" (Part 2)

...
...
539102643
ANTI-SCALP ROLLER HUS-539102643
...
539102698
BUSHING HUS-539102698
...
539102754
HCS 3/8C X 3 1/2 HUS-539102754
...
539105532
HEX CAP SCREW 1/4 HUS-539105532
...
539111619
48 FRONT BAFFLE WELDMT - R.H. HUS-539111619
...
539111621
48 FRONT BAFFLE WELDMT - L.H. HUS-539111621
...
539111949
BELT, DECK 48" HUS-539111949
...
539976934
SCREW HEXAGON HEAD SCREW 5/16- HUS-596030501
...
539976979
GSPW Nuts HUS-596240901
...
539990188
WASHER 11/32 X 11/16 X 14 GA T HUS-596204101
...
539990517
GSPW Washers HUS-596433701
...
539990717
Nuts HUS-596583702
