Husqvarna iZ 4819 TSKAA (2006-02) Ride Mower (Turf Care)

Model: iZ 4819 TSKAA (2006-02)

Back To Assemblies

Save Part Not Listed?
product name

Popular Parts

Popular Parts

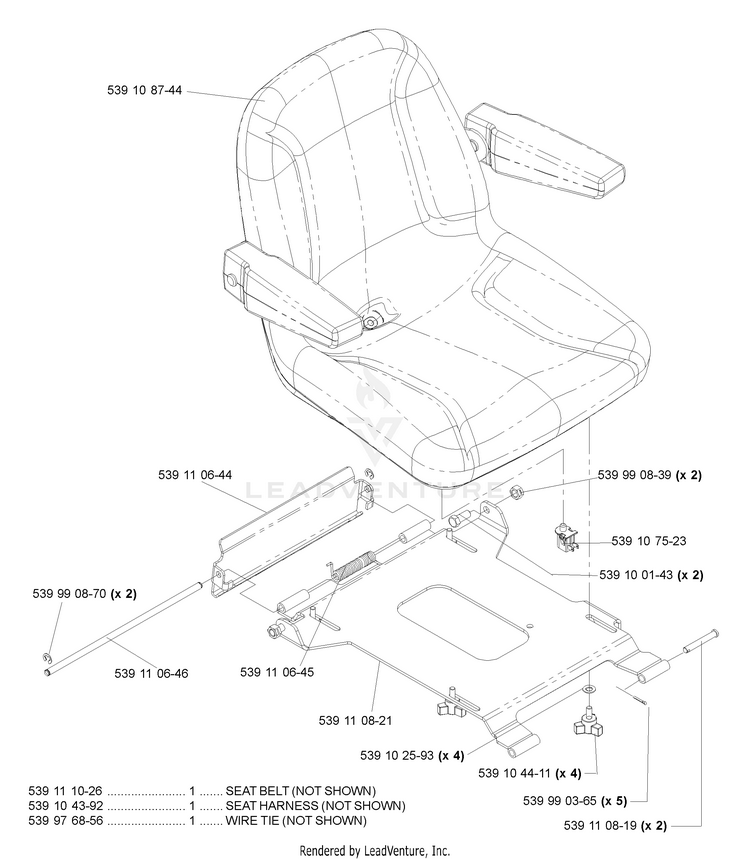

Seat Assembly

...
...
539100143
Bolts HUS-596238601
...
539102593
WASHER, 3/8 DISC SPRING SPEC HUS-539102593
...
539104411
GSPW Knobs HUS-597783101
...
539107523
SEAT SWITCH HUS-539107523
...
539108744
SEAT W/ARMRESTS HUS-539108744
...
539110644
SEAT LATCH BRACKET HUS-539110644
...
539110645
TORSION SPRING (SEAT) HUS-539110645
...
539110646
SEAT LATCH ROD HUS-539110646
...
539110819
CLEVIS PIN 3/8 HUS-539110819
...
539110821
SEAT MOUNT WLDMT, PAN HUS-539110821
...
539990365
Pins HUS-596029501
...
539990839
NUT 7/16C CENTERLOCK HUS-539990839
...
539990870
E RING 3/8" HUS-539990870
...
539111026
SEAT BELT (NOT SHOWN) HUS-539111026
...
539104392
SEAT HARNESS (NOT SHOWN) HUS-539104392
...
539976856
TIE, PLASTIC (NOT SHOWN) HUS-539976856
