Husqvarna ZTHKW 4821 A (2002-09) Ride Mower (Turf Care)

Model: ZTHKW 4821 A (2002-09)

Back To Assemblies

Save Part Not Listed?
product name

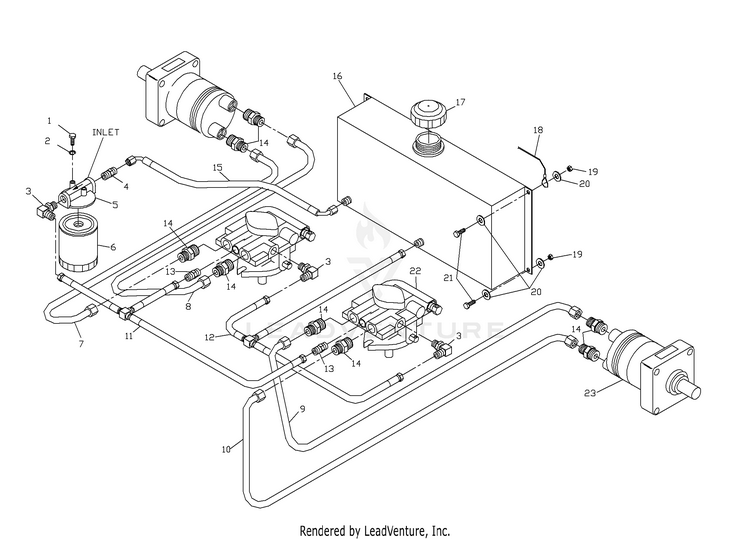

Hydraulic Assembly

...
...
1
Bolts HUS-596582501
...
2
Washers HUS-596564801
...
3
ELBOW, F6801-6-6-0 90 DEGREE HUS-539101238
...
4
STRAIGHT FITG HUS-539103316
...
5
FILTER HEAD HUS-539101165
...
6
HYDRAULIC OIL FILTER HUS-539102606
...
7
OUTSIDE TUBE, RIGHT HUS-539103318
...
8
INSIDE TUBE, RIGHT HUS-539103319
...
9
INSIDE TUBE, LEFT HUS-539103320
...
10
OUTSIDE TUBE, LEFT HUS-539103321
...
11
SUCTION TEE ASSEMBLY HUS-539103314
...
12
RETURN TEE ASSEMBLY HUS-539103315
...
13
FITTING, STRAIGHT F6400-6-4-0 HUS-539101236
...
14
FITTING, STRAIGHT F6400-8-8-0 HUS-539101237
...
15
TANK HOSE HUS-539103326
...
16
TANK, HYDRAULIC HUS-539103336
...
17
HYDRAULIC CAP HUS-539101202
...
18
SEAT LANYARD HUS-539103247
...
19
NUT 1/4C CENTER LOCK HUS-539990761
...
20
Washers HUS-597338501
...
21
HCS 1/4 X 1 HUS-539990548
...
22
HG_PUMP HUS-539101111
...
23
WHEEL MOTOR HUS-539102705
...
xx
SEAL KIT - GEN I HUS-539103664
