Husqvarna ZTHKW 4821 A (2002-09) Ride Mower (Turf Care)

Model: ZTHKW 4821 A (2002-09)

Back To Assemblies

Save Part Not Listed?
product name

Popular Parts

Popular Parts

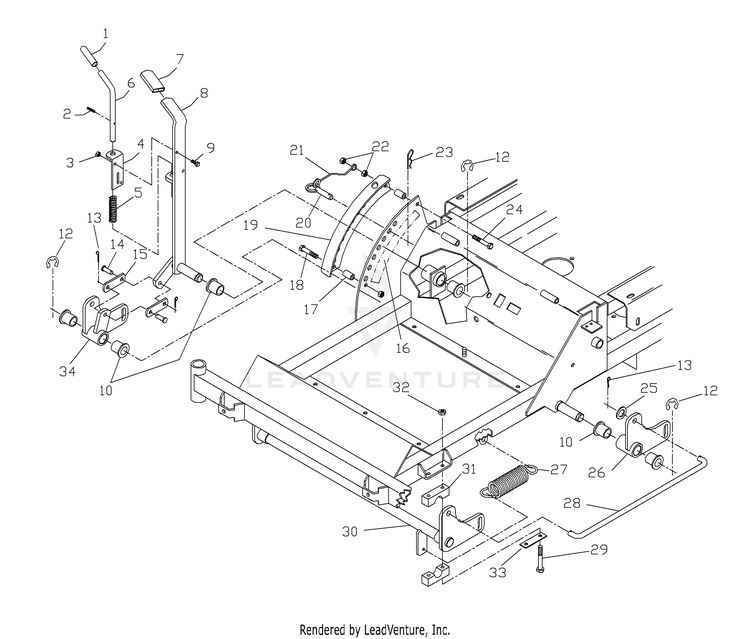

Deck Lift Assembly

...
...
1
GRIP HUS-539101050
...
2
ROLL PIN 3/16 X 1-1/4 ZD HUS-539101082
...
3
NUT 1/4C CENTER LOCK HUS-539990761
...
4
PIN MT, UPPER HUS-539103534
...
5
SPRING HUS-539101058
...
6
PIN HUS-539103533
...
7
GRIP HUS-539102515
...
8
LEVER WELDMENT HUS-539104201
...
9
Screws HUS-596230901
...
10
BUSHING, FLANGED HUS-539101232
...
11
BELLCRANK WLDMT - RT HUS-539104606
...
12
E-RING 7/8 HUS-539101802
...
13
Pins HUS-596029501
...
14
CLEVIS PIN 3/8 X 1 1/8 HUS-539977703
...
15
LIFT ARM HUS-539102565
...
16
DECAL, LOCATOR HUS-539104205
...
17
SPACER HUS-539103543
...
18
HCS 3/8C X 2 HUS-539990588
...
19
LOCATOR WELDMENT HUS-539104204
...
20
Pins HUS-596917701
...
21
LANYARD HUS-539102563
...
22
Nuts HUS-595305901
...
23
Pins HUS-596273101
...
24
Bolts HUS-596564404
...
25
BUSHING 1/2 MACH HUS-539991030
...
26
BELLCRANK WLDMT-LT HUS-539104607
...
27
SPRING HUS-539102642
...
28
LINK HUS-539104222
...
29
HCS 5/16C X 2-3/4 HUS-539101721
...
30
LIFT WLDMT HUS-539104608
...
31
PILLOW BLOCK HUS-539104808
...
32
Nuts HUS-596580701
...
33
REINFORCEMENT.PLATEX431 HUS-584392702
...
34
BELLCRANK WLDMT - RT HUS-539104606
Schematic Image Zoomed
