Husqvarna ZTHKW 4821 A (2000-10) Ride Mower (Turf Care)

Model: ZTHKW 4821 A (2000-10)

Back To Assemblies

Save Part Not Listed?
product name

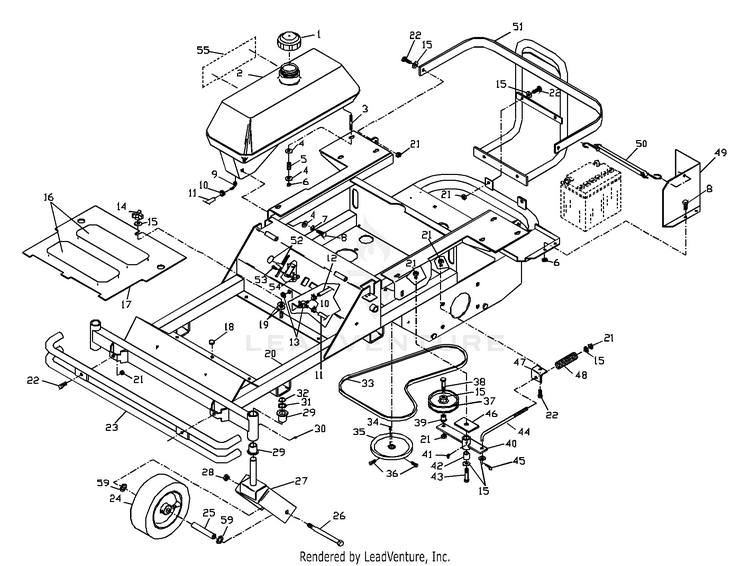

Main Frame Assembly

...
...
1
FUEL CAP, GENERIC HUS-539130394
...
2
FUEL TANK RT HUS-539104410
...
2
LEFT TANK W/CUP HOLDER (NOT SHOWN) HUS-539104409
...
3
STUD, 5/16C HUS-539102502
...
4
GSPH HUS-596134901
...
5
SPRING HUS-539102845
...
6
Nuts HUS-596580701
...
7
WASHER SPRING LOCK WASHER WITH HUS-596238801
...
8
SCREW HEXAGON HEAD SCREW 5/16- HUS-596030501
...
9
HOSE BARB 90 DEGREE HUS-539102650
...
10
HOSE CLAMP HUS-539912222
...
11
HOSE 1/4 X 21.5" HUS-539115707
...
12
FUEL LINE, ENGINE HUS-539102681
...
13
FUEL VALVE HUS-539102679
...
14
KNOB, THREE PRONG HUS-539102070
...
15
GSPW Washers HUS-596433701
...
16
ANTI-SKID PAD HUS-539977778
...
17
FOOT PLATE RED WSL HUS-539103242
...
18
GROMMET, BUMPER HUS-539102587
...
19
WASHER, 3/8 DISC SPRING SPEC HUS-539102593
...
20
FRAME W/DECALS KOHLER HUS-539105120
...
20
FRAME W/DECALS KAWASAKI HUS-539105121
...
21
Nuts HUS-595305901
...
22
Bolts HUS-596564401
...
23
BUMPER, FRONT HUS-539104595
...
24
TIRE/WHEEL.CASTER (COMPLETE) HUS-539106993
...
24
TIRE.11X4.00-5NHS.4PR.SMOOTH HUS-539103495
...
24
RIM HUS-539104600
...
24
ROLLER BEARING-CAGED 3 1/4' HUS-539105307
...
24
ZERK HUS-539103300
...
24
BEARING RETAINER HUS-539102484
...
25
SPACER HUS-539105543
...
26
HCS 1/2C X 5 1/2 HUS-539101907
...
27
YOKE WELDMENT ORANGE HUS-539104589
...
28
GSPW NUTS HUS-596135601
...
29
BUSHING, FLANGED HUS-539101232
...
30
Zerks HUS-596623501
...
31
BSHG .875 X 1.375 X .074 ZD HUS-539923787
...
32
RETAINING RING, 7/8" HUS-539101151
...
33
PUMP BELT HUS-539103241
...
34
KEY 5 MM SQ X 25 MM HUS-539101177
...
35
PULLEY HUS-539101176
...
36
SCREW 5/16C X 5/8 SQ HEAD HUS-539102717
...
37
PULLEYS HUS-596739801
...
38
Bolts HUS-596583901
...
39
BUSHING, IDLER FLANGE HUS-539976695
...
40
IDLER ARM WELDMENT HUS-539103252
...
41
ZERK HUS-539103300
...
42
PIVOT BUSHING HUS-539103429
...
43
HCS 3/8C X 3 HUS-539101341
...
44
TENSION ROD HUS-539102337
...
45
Pins HUS-596029501
...
46
Washers HUS-596770301
...
47
TENSION BRACKET HUS-539104533
...
48
COMPRESSION SPRING HUS-539102817
...
49
BATTERY GUARD W/DECA HUS-539105162
...
50
BATTERY STRAP HUS-539102501
...
51
ENGINE GUARD W/DECAL HUS-539105119
...
52
THROTTLE CABLE HUS-539103275
...
53
Screws HUS-596582801
...
54
Hardware HUS-596040801
...
55
DECAL, ZTH4218 HUS-539104833
...
55
DECAL ZTH4221 HUS-539105602
...
55
DECAL, ZTH4818 HUS-539104835
...
55
DECAL ZTH4820 HUS-539104836
...
55
DECAL, ZTH4821 HUS-539105077
...
56
Bolts HUS-596564404
...
57
WEIGHT BLOCK HUS-539104614
...
58
CHOKE CONTROL, COMPLETE HUS-539102733
...
59
BUSHING HUS-539991050
