Husqvarna ZTHKH 4818 A (2002-09) Ride Mower (Turf Care)

Model: ZTHKH 4818 A (2002-09)

Back To Assemblies

Save Part Not Listed?
product name

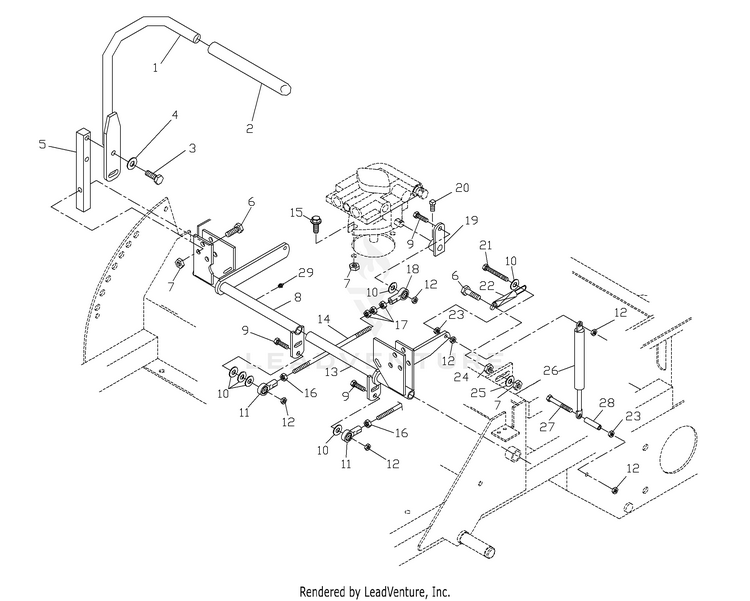

Motion Control Assembly

...
...
1
CONTROL LEVER WELDMENT HUS-539104190
...
2
GRIP HUS-539102592
...
3
Bolts HUS-596564401
...
4
WASHER, 3/8 DISC SPRING SPEC HUS-539102593
...
5
CONTROL ARM HUS-539102809
...
6
HCS 3/8C X 1 1/2 HUS-539990655
...
7
Nuts HUS-595305901
...
8
CONTROL WELDMENT, RIGHT HUS-539103248
...
9
HCS 5/16C X 1 1/4 HUS-539990627
...
10
GSPH HUS-596134901
...
11
BALL JOINT, LEFT HANDED HUS-539102591
...
12
Nuts HUS-596580701
...
13
CONTROL WELDMENT, LEFT HUS-539103249
...
14
PUMP CONTROL LINK HUS-539103264
...
15
Screws HUS-596583101
...
16
Nuts HUS-596584101
...
17
Hardware HUS-596040901
...
18
BALL JOINT, RIGHT HANDED HUS-539102590
...
19
PUMP LEVER HUS-539104382
...
20
SCREW 5/16C X 5/8 SQ HEAD HUS-539102717
...
21
TAP BOLT 5/16C X 2 1/4 HUS-539991055
...
22
SPRING HUS-539103297
...
23
GSPW Hardware HUS-596039201
...
24
Washers HUS-596583501
...
25
GSPW Washers HUS-596433701
...
26
DAMPENER HUS-539102720
...
27
HCS 5/16C X 2 3/4 GRADE 8 HUS-539103468
...
28
SPACER HUS-539100097
...
29
GSPW Zerks HUS-596899901
