Husqvarna ZTHKH 4818 A (2002-09) Ride Mower (Turf Care)

Model: ZTHKH 4818 A (2002-09)

Back To Assemblies

Save Part Not Listed?
product name

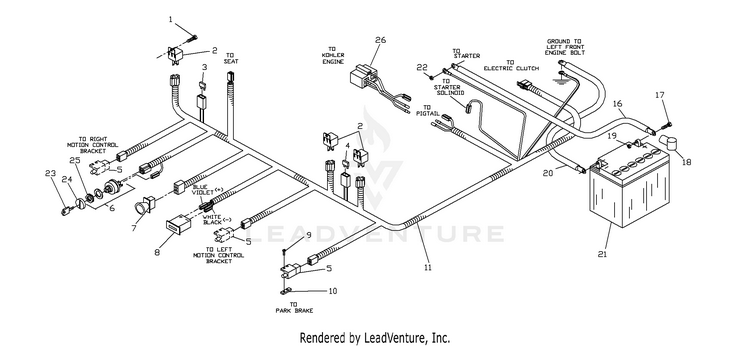

Wiring Assembly (Kohler Only)

...
...
1
Screws HUS-596584001
...
2
RELAY HUS-539102914
...
3
FUSE, 7.5 AMP 32 VOLT ATO HUS-539101771
...
4
FUSE, 20 AMP 32 VOLT ATO HUS-539102086
...
5
SWITCH, INTERLOCK HUS-539101080
...
6
IGNITION SWITCH KIT (INCLUDES WASHER, NUT, & STD. KEY); (DOES NOT INCLUDE ITEMS 23, 24) HUS-539101770
...
7
SWITCH.PTO.8TERMINAL.STD.BLK HUS-582107601
...
8
HOUR METER HUS-576179401
...
9
Screws HUS-596039001
...
10
TAPPED PLATE HUS-539102678
...
11
WIRING HARNESS-KAW MINI HUS-539103276
...
12
NUT 1/4C CENTER LOCK HUS-539990761
...
16
CABLE BATTERY POS RZ HUS-586108201
...
17
SCREW HEXAGON HEAD SCREW 5/16- HUS-596030501
...
18
INSULATOR HUS-539102759
...
19
Nuts HUS-596580701
...
20
CABLE-NEGATIVE HUS-539102758
...
21
BATTERY, 12 V 300 AMP DRY HUS-579411601
...
22
NUT FLG, NYLOCK, 1/4-20 GR G C HUS-582478602
...
23
KEY-PADDED HUS-539104812
...
24
CAP IGNITION NUT HUS-539103178
...
25
DNO IGNITION NUT HUS-539103177
...
26
PIGTAIL,KOHLER 20 ES HUS-539105087
