Husqvarna ZTHKH 4818 A (2002-09) Ride Mower (Turf Care)

Model: ZTHKH 4818 A (2002-09)

Back To Assemblies

Save Part Not Listed?
product name

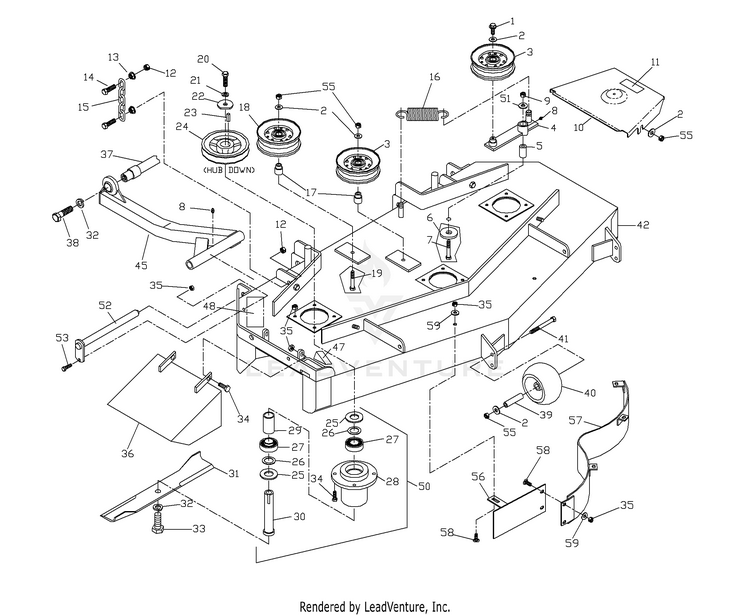

48" Deck Assembly

...
...
1
Screws HUS-596583101
...
2
GSPW Washers HUS-596433701
...
3
IDLER PULLEY HUS-539103257
...
4
IDLER ARM HUS-539103230
...
5
PIVOT BUSHING HUS-539103427
...
6
Washers HUS-596437501
...
7
HCS 1/2C X 3 1/4 HUS-539103433
...
8
GSPW Zerks HUS-596899901
...
9
GSPW NUTS HUS-596135601
...
10
BELTSHIELD HUS-539104605
...
11
DECAL, NO STEP HUS-539102892
...
12
NUT 7/16C CENTERLOCK HUS-539990839
...
13
Nuts HUS-596577901
...
14
Bolts HUS-594944601
...
15
LIFT HUS-594722002
...
16
SPRING HUS-539103256
...
17
IDLER BUSHING HUS-539103295
...
18
IDLER PULLEY (TALL) HUS-539103258
...
19
Bolts HUS-596434201
...
20
HCS 7/16F X 1 1/2 HUS-539100141
...
21
Washers HUS-596238901
...
22
Washers HUS-596770301
...
23
KEY 1/4 SQ X 1 1/8 HUS-539101995
...
24
PULLEY HUS-539103283
...
25
MACHINERY BUSHING 10 GA. HUS-539102675
...
26
BUSHING.MACHINE.18.GAUGE HUS-539102244
...
27
BEARING-ECC LOCK W/COLLAR HUS-539115279
...
28
HOUSING HUS-539102673
...
29
SPACER HUS-539102676
...
30
SPINDLE SHAFT HUS-539103290
...
31
BLADE OEM 16 1/4" HUS-539100340
...
32
LOCKWASHER 5/8 HUS-539990333
...
33
HCS 5/8F X 1 1/4 HUS-539103299
...
34
Bolts HUS-596580801
...
35
Nuts HUS-596580701
...
36
DEFLECTOR CHUTE HUS-539104546
...
37
STRUT MOUNT WELDMENT HUS-539104197
...
38
HCS 5/8C X 2 GR.5 HUS-539104199
...
39
BUSHING HUS-539102698
...
40
ANTI-SCALP ROLLER HUS-539102643
...
41
HCS 3/8C X 3 1/2 HUS-539102754
...
42
DECK W/DECALS 48" HUS-539105779
...
45
STRUT, RIGHT HUS-539108350
...
45
STRUT, LEFT (NOT SHOWN) HUS-539108351
...
47
DECAL, CPSC HUS-539913010
...
48
DECAL, DANGER HUS-539100344
...
49
BELT, DECK 48" (NOT SHOWN) HUS-539111949
...
50
HOUSING KIT FOR 103298 (ITEMS 25 THRU 30) HUS-539107410
...
51
Washers HUS-595316401
...
52
PIVOT PIN HUS-539102619
...
53
SCREW HEXAGON HEAD SCREW 5/16- HUS-596030501
...
55
Nuts HUS-595305901
...
56
CENTER BAFFLE 48" HUS-539105444
...
57
MAIN BAFFLE - 48" DECK BLK HUS-539105448
...
58
BOLT ROUND HEAD SQUARE NECK BO HUS-596039401
...
59
GSPH HUS-596134901
