Husqvarna ZTH 7226 KOA (2001-11) Ride Mower (Turf Care)

Model: ZTH 7226 KOA (2001-11)

Back To Assemblies

Save Part Not Listed?
product name

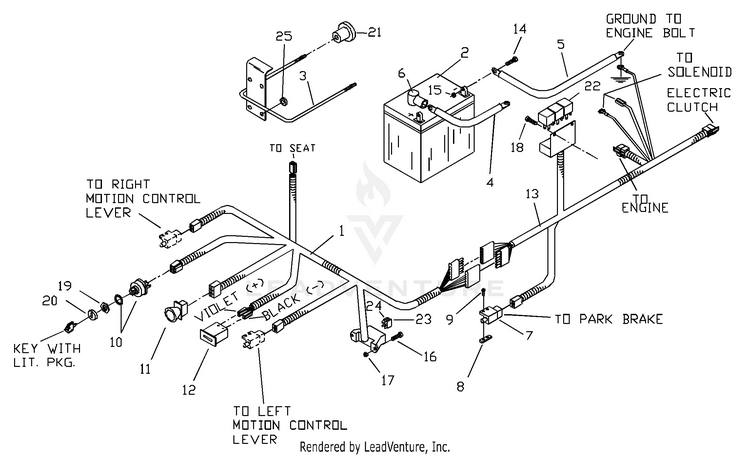

Wiring Assembly

...
...
1
CONSOLE HARNESS HUS-539104414
...
2
BATTERY, 12 V 300 AMP DRY HUS-579411601
...
3
BATTERY HOLD DOWN HUS-539105728
...
4
POST.CABLE LONG HUS-539104974
...
5
CABLE-NEGATIVE HUS-539102758
...
6
INSULATOR HUS-539102759
...
7
SWITCH, INTERLOCK HUS-539101080
...
8
TAPPED PLATE HUS-539102678
...
9
Screws HUS-596039001
...
10
IGNITION SWITCH KIT HUS-539101770
...
11
SWITCH.PTO.8TERMINAL.STD.BLK HUS-582107601
...
12
HOUR METER HUS-576179401
...
13
FRAMES HARNESS HUS-539104964
...
14
SCREW HEXAGON HEAD SCREW 5/16- HUS-596030501
...
15
Nuts HUS-596580701
...
16
SCREW, #1--24 X 1/2 SLOTTED HUS-539102617
...
17
Hardware HUS-596040801
...
18
Screws HUS-596584001
...
19
DNO IGNITION NUT HUS-539103177
...
20
CAP IGNITION NUT HUS-539103178
...
21
KNOB HUS-539105169
...
22
RELAY HUS-539102914
...
23
FUSE, 7.5 AMP 32 VOLT ATO HUS-539101771
...
24
FUSE, 20 AMP 32 VOLT ATO HUS-539102086
...
25
GROMMET, BUMPER HUS-539102587
