Husqvarna ZTH 7226 KOA (2001-06) Ride Mower (Turf Care)

Model: ZTH 7226 KOA (2001-06)

Back To Assemblies

Save Part Not Listed?
product name

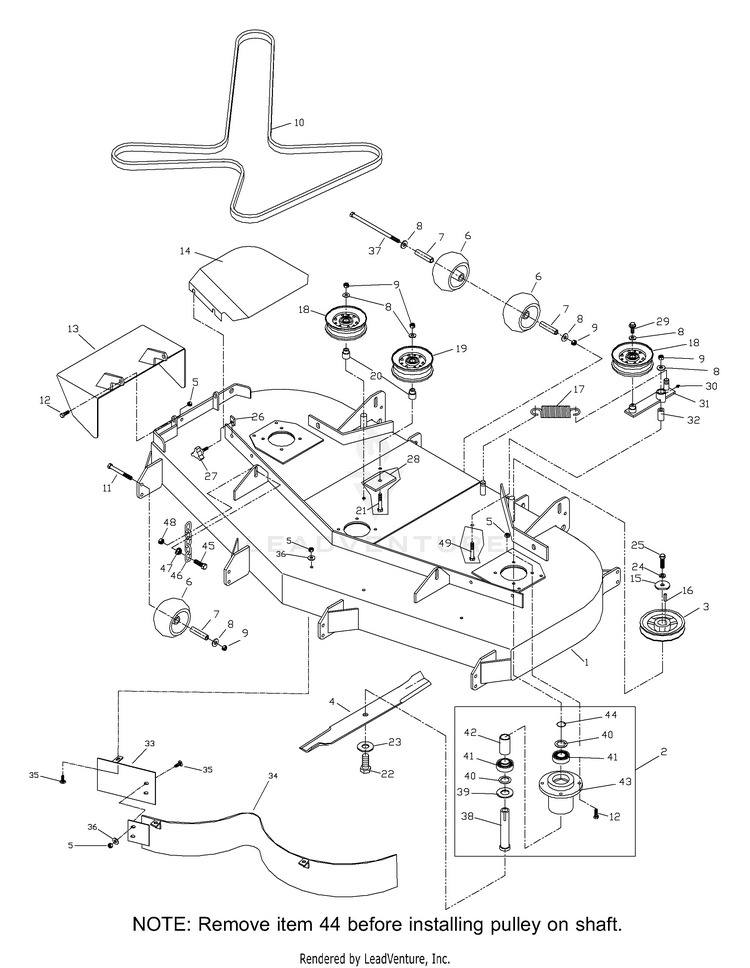

Front Deck Assembly

...
...
1
DECK HUS-539105980
...
2
HOUSING KIT FOR 105632 HUS-539107412
...
3
PULLEY HUS-539105485
...
4
BLADE OEM - 25" HUS-539105476
...
5
Nuts HUS-596583702
...
6
ANTI-SCALP ROLLER HUS-539102643
...
7
BUSHING HUS-539102698
...
8
GSPW Washers HUS-596433701
...
9
GSPW Nuts HUS-596240901
...
10
BELT, DECK 72" HUS-539105477
...
11
HCS 3/8C X 3 1/2 HUS-539102754
...
12
HCS 5/16C X 1 1/4 HUS-539990627
...
13
DISCHARGE CHUTE HUS-539105981
...
14
SHIELD BELT RIGHT ORANGE HUS-539108920
...
14
SHIELD BELT LEFT ORANGE HUS-539108922
...
15
WASHER, CRANKSHAFT HUS-539100132
...
16
KEY 1/4 SQ X 1 1/8 HUS-539101995
...
17
DECK SPRING HUS-539105192
...
18
IDLER PULLEY HUS-539103257
...
19
IDLER PULLEY (TALL) HUS-539103258
...
20
IDLER BUSHING HUS-539103295
...
21
HCS 3/8C X 3 HUS-539101341
...
22
HEX SCREW-5/8F X 2 GR8 HUS-539105633
...
23
BELLEVILLE SPRING WASHER HUS-539105634
...
24
Washers HUS-596238901
...
25
HCS 7/16F X 1 1/2 HUS-539100141
...
26
U-CLIP 5/16-18 NUT RETAINER HUS-539104763
...
27
GSPW Knobs HUS-597783101
...
28
Washers HUS-596770301
...
29
Screws HUS-596583101
...
30
GSPW Zerks HUS-596899901
...
31
IDLER ARM HUS-539103230
...
32
PIVOT BUSHING HUS-539103427
...
33
BAFFLE/CENTER-FLAT BLK HUS-539105615
...
34
BAFFLE/CENTER-CURVED HUS-539105614
...
35
BOLT ROUND HEAD SQUARE NECK BO HUS-596039401
...
36
GSPH HUS-596134901
...
37
BOLT 3/8 X 6" GRD 8 HUS-539105422
...
38
SPINDLE SHAFT HUS-539105501
...
39
MACHINERY BUSHING 10 GA. HUS-539102675
...
40
BUSHING.MACHINE.18.GAUGE HUS-539102244
...
41
BEARING-ECC LOCK W/COLLAR HUS-539115279
...
42
SPACER HUS-539102676
...
43
HOUSING, DIE CAST HUS-539104852
...
44
O-RING HUS-539102253
...
45
Bolts HUS-594944601
...
46
LIFT HUS-594722002
...
47
Nuts HUS-596577901
...
48
NUT 7/16C CENTERLOCK HUS-539990839
...
49
HCS 1/2C X 3 1/4 HUS-539103433
