Husqvarna ZTH 7226 KOA (2001-06) Ride Mower (Turf Care)

Model: ZTH 7226 KOA (2001-06)

Back To Assemblies

Save Part Not Listed?
product name

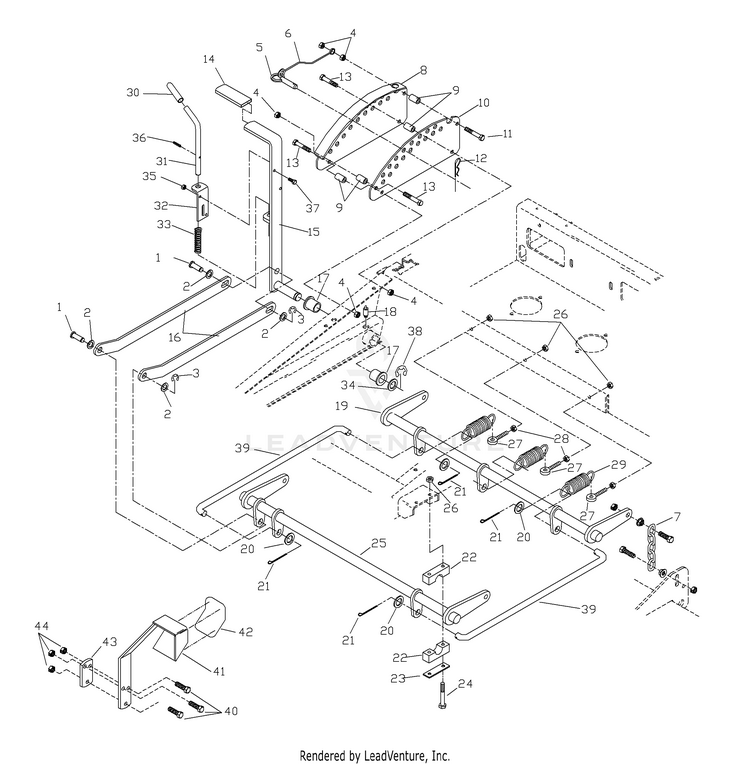

Deck Lift Assembly

...
...
1
CLEVIS PIN HUS-539105060
...
2
Washers HUS-596933401
...
3
E-RING 5/8 HUS-539105069
...
4
Nuts HUS-595305901
...
5
Pins HUS-596917701
...
6
LANYARD HUS-539105059
...
7
LIFT HUS-594722002
...
8
ADJ. PLATE WLDMNT HUS-539104321
...
9
DECK LIFT SPACER HUS-539104530
...
10
ADJ. PLATE PAINTED HUS-539104323
...
11
Bolts HUS-596434201
...
12
Pins HUS-596273101
...
13
Bolts HUS-596564404
...
14
GRIP HUS-539102515
...
15
LIFT LEVER WELDMENT HUS-539108322
...
16
LIFT LINKAGE,PAINTED HUS-539105050
...
17
BUSHING, FLANGED HUS-539101232
...
18
GREASE ZERK LONG HUS-539104761
...
19
SHAFT LIFT REAR HUS-539108354
...
20
WASHER 5/8 FLAT HUS-539976982
...
21
COTTER PIN HUS-539990654
...
22
PILLOW BLOCK HUS-539104808
...
23
REINFORCEMENT.PLATEX431 HUS-584392702
...
24
BOLT 5/16C X 2 1/2 HUS-539991046
...
25
LIFT SHAFT HUS-539108355
...
26
Nuts HUS-596580701
...
27
EYEBOLT, RH HUS-539101982
...
28
GSPW Hardware HUS-596039201
...
29
DECK LIFT SPRING HUS-539104760
...
30
GRIP HUS-539101050
...
31
PIN HUS-539104523
...
32
PIN MT, UPPER HUS-539103534
...
33
SPRING HUS-539101058
...
34
BSHG .875 X 1.375 X .074 ZD HUS-539923787
...
35
NUT 1/4C CENTER LOCK HUS-539990761
...
36
ROLL PIN 3/16 X 1-1/4 ZD HUS-539101082
...
37
Screws HUS-596230901
...
38
E-RING 7/8 HUS-539101802
...
39
CONNECTING LINK HUS-539104310
...
40
HCS 3/8C X 1 1/2 HUS-539990655
...
41
LIFT PEDAL BLK HUS-539105181
...
42
ANTI-SKID PAD HUS-539105187
...
43
TIGHTENING PLATE BLK HUS-539105184
...
44
GSPW Nuts HUS-596240901
