Husqvarna ZTH 7226 KOA (2001-06) Ride Mower (Turf Care)

Model: ZTH 7226 KOA (2001-06)

Back To Assemblies

Save Part Not Listed?
product name

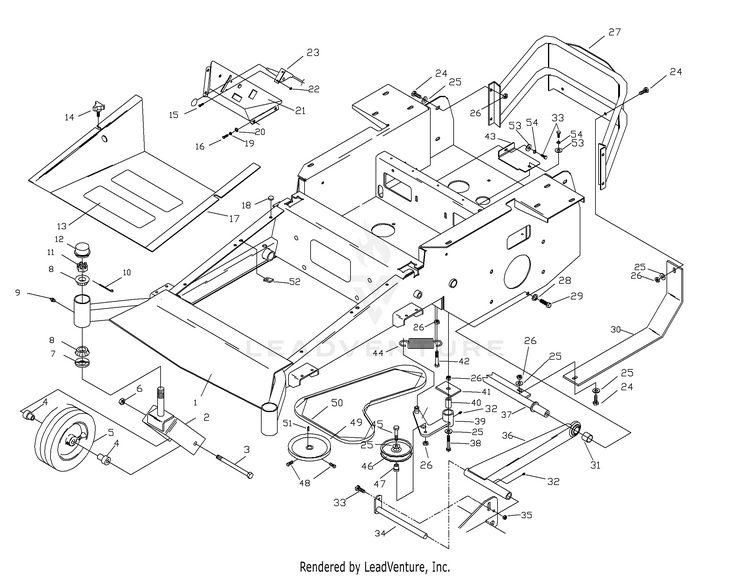

Main Frame Assembly

...
...
1
MAIN FRAME W/DECALS HUS-539105492
...
2
CASTOR YOKE ORANGE HUS-539105982
...
3
GSPW Screws HUS-594946501
...
4
AXLE SPACER HUS-539105518
...
5
FRONT TIRE ASSY HUS-539105521
...
5
TIRE - SMOOTH 13X6.50-6 HUS-539105522
...
5
ZERK HUS-539103300
...
5
RIM HUS-539105523
...
5
SEAL HUS-539105524
...
5
VALVE STEM TR-412 HUS-539912234
...
5
TAPERED BEARING W/RACE HUS-539105525
...
6
GSPW NUTS HUS-596135601
...
7
SEAL HUS-539102851
...
8
TAPERED ROLLER BRG HUS-539102543
...
9
Zerks HUS-596623501
...
10
COTTER PIN 1/8 X 2 HUS-539124704
...
11
Nuts HUS-596241501
...
12
Caps HUS-595281301
...
13
ANTI-SKID PAD HUS-539977778
...
14
GSPW Knobs HUS-597783101
...
15
Screws HUS-596582801
...
16
SCREW 1/4 X 5/8 HUS-539990362
...
17
FOOT PLATE WIDMT HUS-539104721
...
18
GROMMET, BUMPER HUS-539102587
...
19
Washers HUS-596564801
...
20
Washers HUS-597338501
...
21
CONSOLE WLD HUS-539104996
...
22
Hardware HUS-596040801
...
23
THROTTLE HUS-597524002
...
24
Bolts HUS-596564401
...
25
GSPW Washers HUS-596433701
...
25
GSPW Washers HUS-596433701
...
26
Nuts HUS-595305901
...
27
REAR GUARD HUS-539104329
...
28
Washers HUS-596238901
...
29
HEX SCREW 7/16-14 X 1 GR8 HUS-539105905
...
30
SKID PLATE HUS-539105022
...
31
SPACER, STRUT HUS-539104521
...
32
GSPW Zerks HUS-596899901
...
33
SCREW HEXAGON HEAD SCREW 5/16- HUS-596030501
...
34
PIVOT PIN HUS-539102619
...
35
Nuts HUS-596580701
...
36
STRUT HUS-539104390
...
37
CROSS SHAFT WLD 72 HUS-539105478
...
38
HCS 1/2C X 3 1/4 HUS-539103433
...
39
KIT, IDLER ARM W/PULLEY, PUMP HUS-539130532
...
40
PIVOT BUSHING HUS-539103427
...
41
PAD HUS-539102236
...
42
HCS 3/8C X 1 1/2 HUS-539990655
...
43
IDLER COVER HUS-539105716
...
44
SPRING HUS-539103256
...
45
Bolts HUS-596583901
...
46
PULLEYS HUS-596739801
...
47
BUSHING, IDLER FLANGE HUS-539976695
...
48
SCREW 5/16C X 5/8 SQ HEAD HUS-539102717
...
49
PULLEY HUS-539101176
...
50
BELT, PUMP HUS-510201501
...
51
KEY 5 MM SQ X 25 MM HUS-539101177
...
52
U-CLIP 5/16-18 NUT RETAINER HUS-539104763
...
53
GSPH HUS-596134901
...
54
WASHER SPRING LOCK WASHER WITH HUS-596238801
...
55
STRUT WELDMENT HUS-539105577
...
56
STRUT PIN RH HUS-539105481
...
57
STRUT SPACER - 72" HUS-539105484
