Husqvarna ZTH 6126 KOA (2001-11) Ride Mower (Turf Care)

Model: ZTH 6126 KOA (2001-11)

Back To Assemblies

Save Part Not Listed?
product name

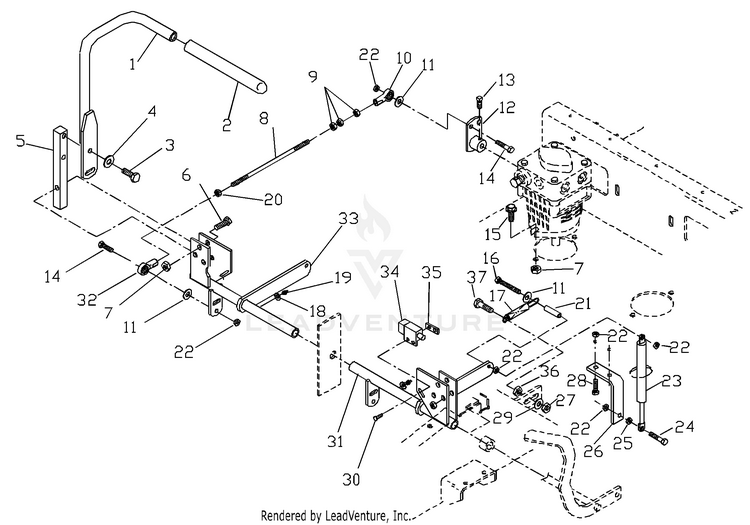

Motion Control Assembly

...
...
1
CONTROL LEVER WELDMENT HUS-539104190
...
2
GRIP HUS-539102592
...
3
Bolts HUS-596564401
...
4
WASHER, 3/8 DISC SPRING SPEC HUS-539102593
...
5
CONTROL ARM HUS-539102809
...
6
HCS 3/8C X 1 1/2 HUS-539990655
...
7
Nuts HUS-595305901
...
8
PUMP CONTROL LINK HUS-539105279
...
9
Hardware HUS-596040901
...
10
BALL JOINT, RIGHT HANDED HUS-539102590
...
11
GSPH HUS-596134901
...
12
PUMP LEVER HUS-539104382
...
13
5/16C X 5/8 "V" POINT HUS-539105079
...
14
Bolts HUS-596580801
...
15
Screws HUS-596583101
...
16
TAP BOLT 5/16C X 2 1/4 HUS-539991055
...
17
SPRING HUS-539103297
...
18
WASHER HUS-539103547
...
19
GSPW Zerks HUS-596899901
...
20
Nuts HUS-596584101
...
21
SPACER HUS-539104995
...
22
Nuts HUS-596580701
...
23
DAMPENER HUS-539102720
...
24
HCS 5/16C X 1 1/4 HUS-539990627
...
25
GSPW Hardware HUS-596039201
...
26
BRACKET "I" HUS-539105023
...
27
GSPW Nuts HUS-596240901
...
28
SCREW HEXAGON HEAD SCREW 5/16- HUS-596030501
...
29
GSPW Washers HUS-596433701
...
30
Screws HUS-596039001
...
31
CONTROL WELDMENT LT HUS-539104363
...
32
BALL JOINT, LEFT HANDED HUS-539102591
...
33
CONTROL WELDMENT RT. HUS-539104364
...
34
SWITCH, INTERLOCK HUS-539101080
...
35
TAPPED PLATE HUS-539102678
...
36
Washers HUS-596583501
...
37
HCS 3/8C X 2 HUS-539990588
...
38
LOOM CLIP HUS-539102685
Schematic Image Zoomed
