product name

Husqvarna ZTH 6126 KOA (2000-12) Ride Mower (Turf Care)

Model: ZTH 6126 KOA (2000-12)

Back To Assemblies

Save Part Not Listed?
product name

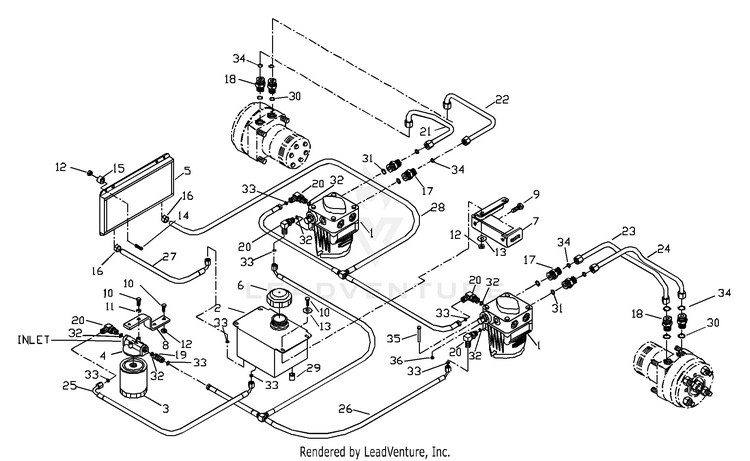

Hydraulic System

...
...
1
HG_PUMP, 10CC W/O FAN OR RTN HUS-539132147
...
2
OIL TANK HUS-539105024
...
3
HYDRAULIC OIL FILTER HUS-539102606
...
4
FILTER HEAD HUS-539101165
...
5
COOLER HUS-539105167
...
6
HYDRAULIC CAP HUS-539101202
...
7
TANK MOUNT LT HUS-539105027
...
7
TANK MOUNT RT HUS-539105026
...
8
FILTER MOUNT HUS-539105028
...
9
SCREW HEXAGON HEAD SCREW 5/16- HUS-596030501
...
10
Screws HUS-596230901
...
11
Washers HUS-596564801
...
12
NUT 1/4C CENTER LOCK HUS-539990761
...
13
Washers HUS-597338501
...
14
HCS 1/4-20.X HUS-539990892
...
15
SPACER HUS-539923515
...
16
HOSE CLAMP T-1865 HUS-539976966
...
17
FITTING, STRAIGHT F6400-8-8-0 HUS-539101237
...
18
FITTING HUS-539102396
...
19
STRAIGHT FITG HUS-539103316
...
20
ELBOW, F6801-6-6-0 90 DEGREE HUS-539101238
...
21
RT. OUTSIDE TUBE HUS-539104393
...
22
RT. INSIDE TUBE HUS-539104394
...
23
LT.INSIDE TUBE HUS-539104395
...
24
LT.OUTSIDE TUBE HUS-539104396
...
25
HOSE 7" HUS-539104722
...
26
T ASM HUS-539104723
...
27
HOSE HUS-539104896
...
28
T-ASSY HUS-539105154
...
29
NUT 9/16-18 JIC CAP HUS-539105168
...
30
O RING HUS-539103115
...
31
O RING HUS-539103116
...
32
O RING HUS-539103117
...
33
O RING HUS-539103118
...
34
O RING HUS-539103119
...
35
CLEVIS PIN HUS-539102233
...
36
Nuts HUS-596436201
...
37
LOOM CLIP (NOT SHOWN) HUS-539102685
