Husqvarna ZTH 6126 KOA (2000-12) Ride Mower (Turf Care)

Model: ZTH 6126 KOA (2000-12)

Back To Assemblies

Save Part Not Listed?
product name

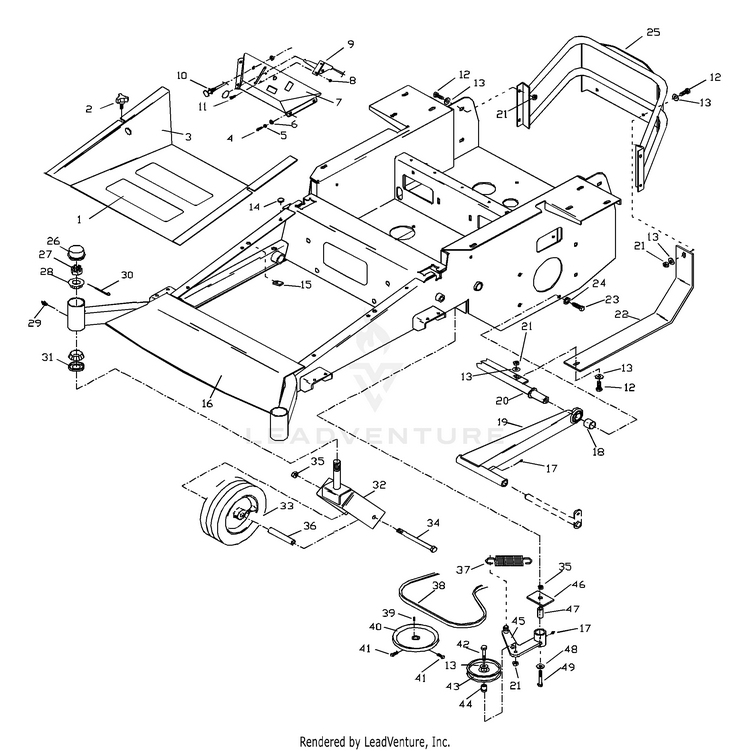

Main Frame

...
...
1
ANTI-SKID PAD HUS-539977778
...
2
GSPW Knobs HUS-597783101
...
3
FOOT PLATE WIDMT HUS-539104721
...
4
Screws HUS-596230901
...
5
Washers HUS-596564801
...
6
Washers HUS-597338501
...
7
CONSOLE W/DECALS HUS-539105151
...
8
Hardware HUS-596040801
...
9
THROTTLE HUS-597524002
...
10
CHOKE CONTROL, COMPLETE HUS-539102733
...
11
Screws HUS-596582801
...
12
Bolts HUS-596564401
...
13
GSPW Washers HUS-596433701
...
14
GROMMET, BUMPER HUS-539102587
...
15
U-CLIP 5/16-18 NUT RETAINER HUS-539104763
...
16
MAIN FRAME W/DECALS HUS-539105148
...
17
GSPW Zerks HUS-596899901
...
18
SPACER, STRUT HUS-539104521
...
19
STRUT HUS-539104390
...
20
CROSS SHAFT WLDMT HUS-539104332
...
21
Nuts HUS-595305901
...
22
SKID PLATE HUS-539105022
...
23
Bolts HUS-596238601
...
24
Washers HUS-596238901
...
25
REAR GUARD HUS-539104329
...
26
Caps HUS-595281301
...
27
Nuts HUS-596241501
...
28
BEARING W/CUP HUS-539102626
...
29
Zerks HUS-596623501
...
30
COTTER PIN 1/8 X 2 HUS-539124704
...
31
BRKT-LIFT ARM HUS-539102581
...
32
CASTER YOKE ORANGE HUS-539104571
...
33
TIRE.ASSEM.13X5-6.SMOOTH.SILVE HUS-539104572
...
33
TIRE.ASSEM.13X5-6.SMOOTH.SILVE HUS-539104572
...
33
TIRE.ASSEM.13X5-6.SMOOTH.SILVE HUS-539104572
...
33
ZERK 1/8 NPT HUS-539976997
...
33
BEARING RETAINER HUS-539102484
...
33
VALVE STEM TR-412 HUS-539912234
...
33
ROLLER BEARING HUS-539102485
...
34
Bolts HUS-596435601
...
35
GSPW NUTS HUS-596135601
...
36
SPACER, CASTER HUS-539102856
...
37
SPRING HUS-539103256
...
38
BELT, PUMP HUS-510201501
...
39
KEY 5 MM SQ X 25 MM HUS-539101177
...
40
PULLEY HUS-539101176
...
41
SCREW 5/16C X 5/8 SQ HEAD HUS-539102717
...
42
Bolts HUS-596583901
...
43
PULLEYS HUS-596739801
...
44
BUSHING, IDLER FLANGE HUS-539976695
...
45
KIT, IDLER ARM W/PULLEY, PUMP HUS-539130532
...
46
PAD HUS-539102236
...
47
PIVOT BUSHING HUS-539103427
...
48
Washers HUS-595316401
...
49
HCS 1/2C X 3 1/4 HUS-539103433
