Husqvarna ZTH 6125 KOA (2000-12) Ride Mower (Turf Care)

Model: ZTH 6125 KOA (2000-12)

Back To Assemblies

Save Part Not Listed?

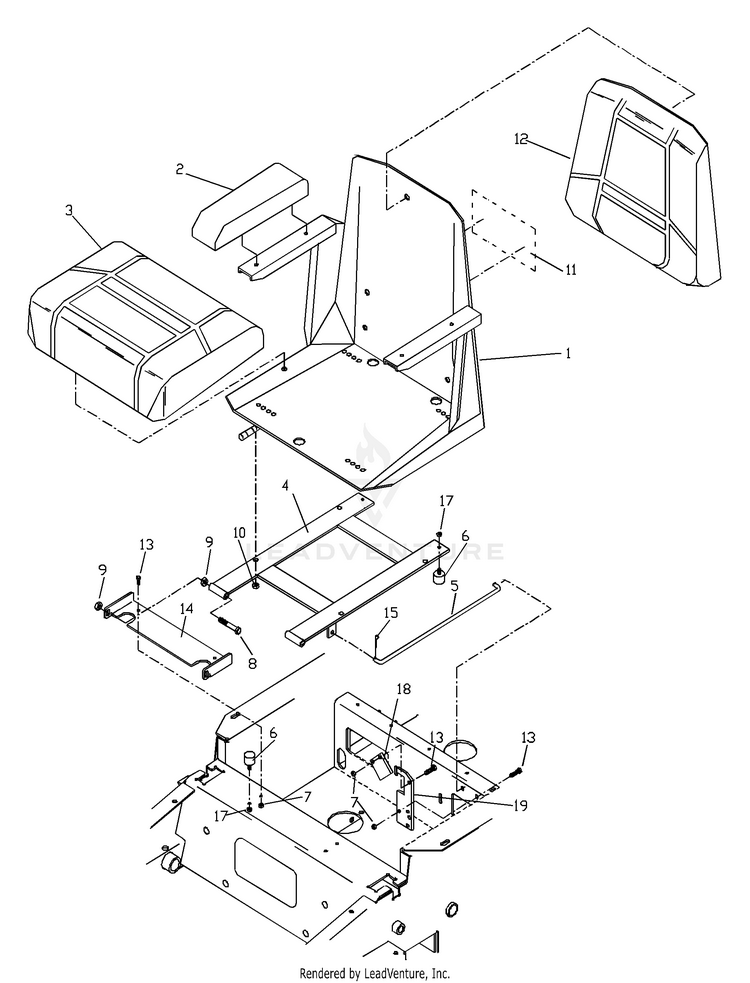

product name

Seat

...
...
1
SEAT.ASM.907.TRACK.W/O.BELT HUS-501580402
...
2
ARM REST CUSHIONS/PAIR HUS-539102844
...
3
SEAT CUSHION W/SWITCH HUS-539102539
...
4
SEAT MOUNT W/DECAL HUS-539105951
...
5
SEAT ROD HUS-539104525
...
6
STUD/PLATE MOUNT HUS-539105039
...
7
NUT 1/4C CENTER LOCK HUS-539990761
...
8
HCS 3/8C X 3 HUS-539101341
...
9
Nuts HUS-595305901
...
10
Nuts HUS-596580701
...
11
DECAL, CROWN H HUS-539104789
...
12
SEAT, BACK CUSHION HUS-539104565
...
13
Screws HUS-596230901
...
14
SEAT BRKT W/DECAL HUS-539105224
...
15
Pins HUS-596029501
...
16
SEAT RAILS (NOT SHOWN) HUS-539105294
...
17
NUT FLG, NYLOCK, 1/4-20 GR G C HUS-582478602
...
18
SEAT LATCH HUS-539102917
...
19
SEAT LATCH MOUNT HUS-539105282
