Husqvarna ZTH 5223 KAA (2001-11) Ride Mower (Turf Care)

Model: ZTH 5223 KAA (2001-11)

Back To Assemblies

Save Part Not Listed?
product name

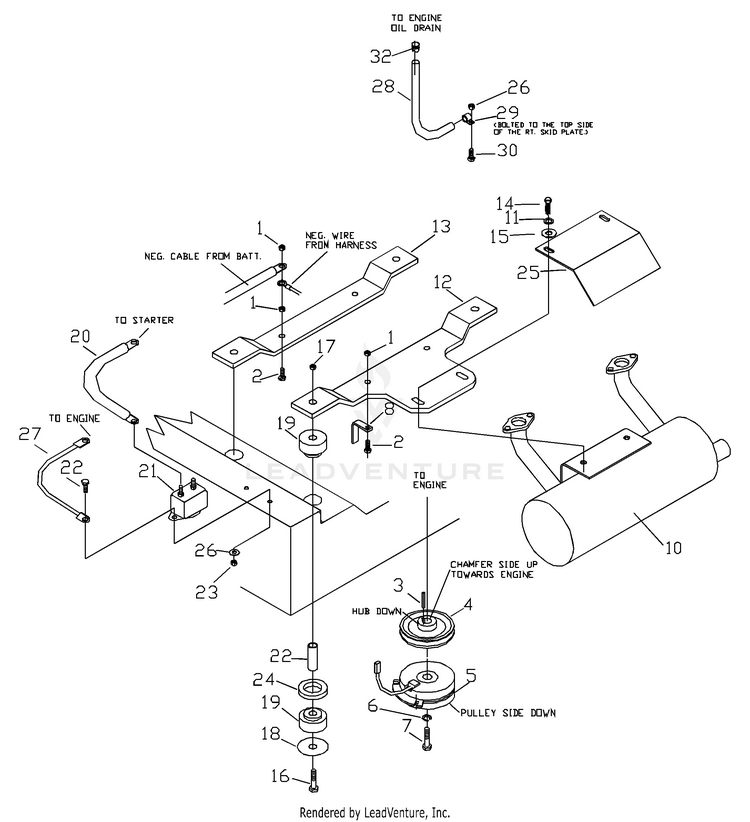

Kawasaki Engine Assembly

...
...
1
Nuts HUS-596580701
...
2
SCREW HUS-874780528
...
3
KEY 1/4" SQ X 1 7/8" HUS-539100152
...
4
PULLEY HUS-539106057
...
5
ELECTRIC CLUTCH W/CABLE HUS-539105406
...
6
Washers HUS-596238901
...
7
BOLT 7/16F X 2 1/2 HUS-539991120
...
8
CLUTCH TIE DOWN HUS-539103251
...
9
KAW PIGTAIL HUS-539104415
...
10
MUFFLER KAWASAKI GEN II HUS-539105897
...
11
WASHER SPRING LOCK WASHER WITH HUS-596238801
...
12
REAR ENGINE MOUNT HUS-539105410
...
13
ENGINE MOUNT HUS-539105025
...
14
SCREW HEXAGON HEAD SCREW 5/16- HUS-596030501
...
15
GSPH HUS-596134901
...
16
HCS 1/2C X 3 1/4 HUS-539103433
...
17
GSPW NUTS HUS-596135601
...
18
ISOLATOR WASHER HUS-539104959
...
19
ISOLATORS HUS-539104958
...
20
CABLE POSITIVE HUS-539102757
...
21
SOLENOID HUS-539101714
...
22
Bolts HUS-596582501
...
23
NUT 1/4C CENTER LOCK HUS-539990761
...
24
ISOLATOR SPACER HUS-539105034
...
25
MUFFLER GUARD HUS-539105968
...
26
WASHER 1/4 INT TOOTH HUS-539990053
...
27
GROUND WIRE (KAW) HUS-539105409
...
28
OIL DRAIN HOSE (KAW) HUS-539105395
...
29
LOOM CLIP HUS-539102685
...
30
Screws HUS-596230901
...
31
CHOKE CONTROL, COMPLETE (NOT SHOWN) HUS-539102733
...
32
CLAMP HUS-539102877
...
33
INSULATOR HUS-539102759
