Husqvarna Z4219 (968999511) (2007-04) Ride Mower (Turf Care)

Model: Z4219 (968999511) (2007-04)

Back To Assemblies

Save Part Not Listed?
product name

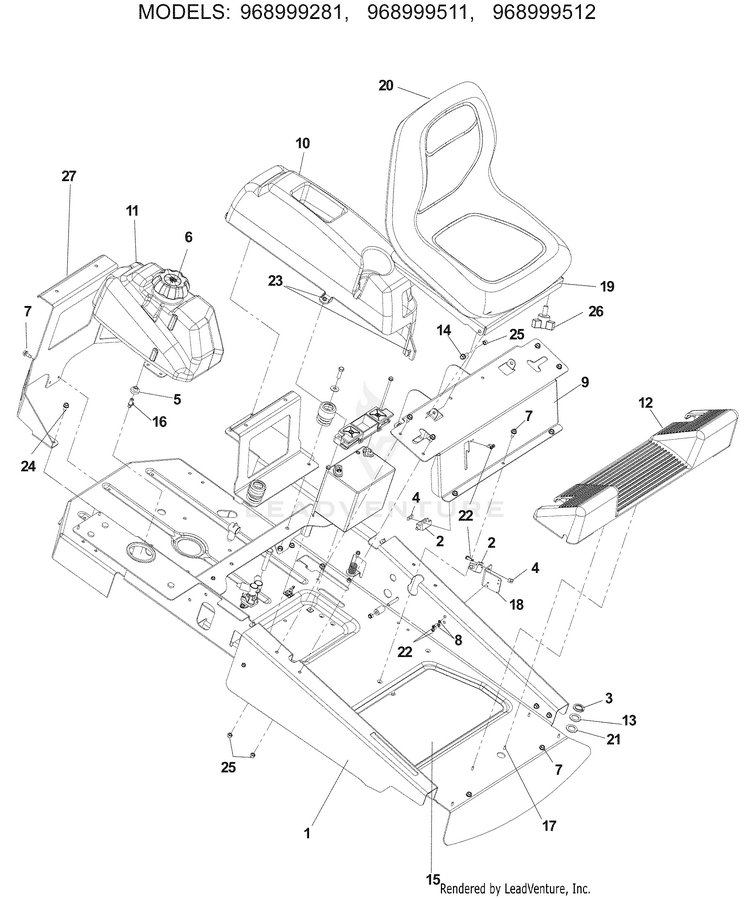

Chassis/Frames

...
...
1
CHASSIS W/DECALS HUS-539110115
...
2
SWITCH, INTERLOCK HUS-539101080
...
3
RETAINING RING, 7/8" HUS-539101151
...
4
TAPPED PLATE HUS-539102678
...
5
RUBBER GROMMET HUS-539105245
...
6
FUEL CAP, GENERIC HUS-539130394
...
7
BOLT 5/16-18 X 3/4 HUS-539107475
...
8
Washers HUS-596987301
...
9
SEAT SUPPORT W/DECALS HUS-539110199
...
10
FENDER, LT HUS-539130374
...
11
FUEL TANK HUS-539110252
...
12
FOOT REST GRAY HUS-539110284
...
13
WASHER HUS-539110294
...
14
Bolts HUS-596240701
...
15
SLIP, MATTING HUS-539110310
...
16
STEM FUEL TANK HUS-532139277
...
17
Screws HUS-596917001
...
18
BRACKET HUS-539110860
...
19
SEAT MOUNT, BLACK HUS-539112694
...
20
SEAT.XH150.LOWBACK.GREY.ZTR HUS-539112699
...
xx
SEAT.HIGHBACK.GREY.ZTR HUS-539112700
...
21
BSHG .875 X 1.375 X .074 ZD HUS-539923787
...
22
Screws HUS-596039001
...
23
SCREW 1/4 X 5/8 HUS-539990362
...
24
SCREW HUS-539990369
...
25
Nuts HUS-596583702
...
26
GSPW Knobs HUS-597783101
...
27
REAR BRKT, TOOL BOX, PAINTED HUS-539110495
...
xx
BATTERY CABLE-POS NOT SHOWN HUS-539107616
...
xx
BATTERY CABLE, NEGATIVE NOT SHOWN HUS-539110068
...
xx
FOAM STRIP, FUEL TANK NOT SHOWN HUS-539110290
...
xx
WIRING HARNESS NOT SHOWN HUS-539110309
...
xx
RELAY NOT SHOWN HUS-539102914
