Husqvarna Z4219 (968999511) (2007-04) Ride Mower (Turf Care)

Model: Z4219 (968999511) (2007-04)

Back To Assemblies

Save Part Not Listed?
product name

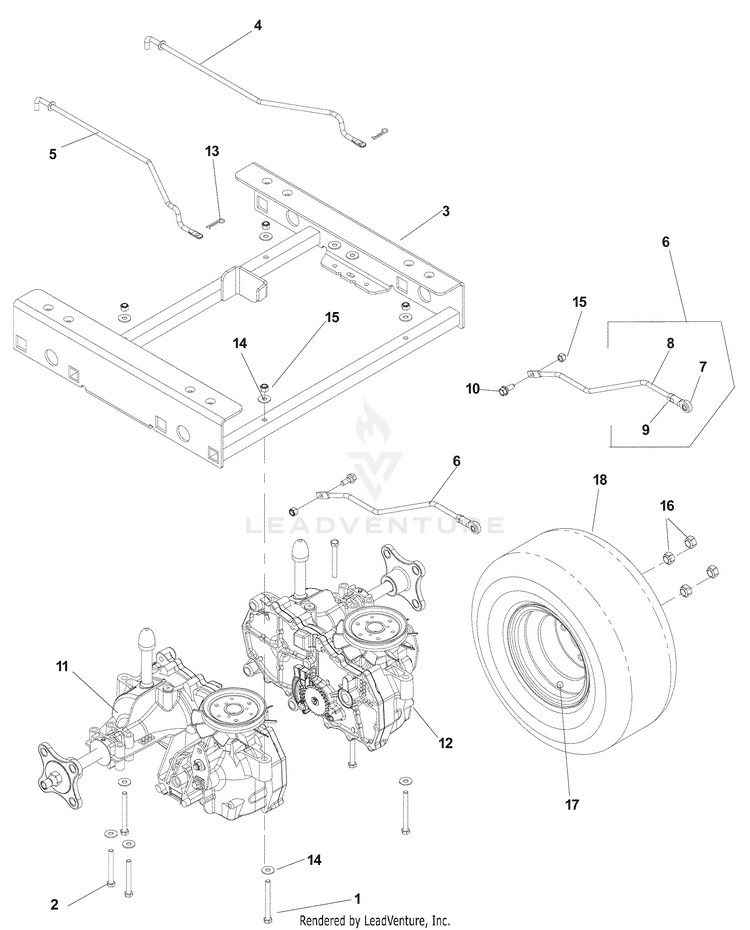

Hydraulic Pump - Motor

...
...
1
HCS 5/16-18 X 3 1/4 HUS-539101520
...
2
HCS 5/16C X 2-3/4 HUS-539101721
...
3
SUB ASSY, EZT FRAME HUS-522771301
...
4
BYPASS LINKAGE, LEFT HUS-539110270
...
5
BYPASS LINKAGE, RIGHT HUS-539110271
...
6
MOTION CONTROL ROD ASM HUS-539110273
...
7
BALL JOINT, RIGHT HANDED HUS-539102590
...
8
MOTION ROD HUS-539110274
...
9
Hardware HUS-596040901
...
10
Bolts HUS-596240701
...
11
HG_EZT RIGHT HUS-539110487
...
12
HG_EZT, LT HUS-539110486
...
13
Pins HUS-596580601
...
14
GSPH HUS-596134901
...
15
Nuts HUS-596583702
...
16
Nuts HUS-587653903
...
17
VALVE STEM TR-412 HUS-539912234
...
18
TIRE/WHEEL ASM 18X9.5-8 HUS-539112215
...
xx
TIRE/WHEEL.ASSEM.18X7.5-8.ZTR HUS-539110253
...
xx
WHEEL.ASSEM.18X8.5-8.KENDA.ZTR HUS-581197301
