Husqvarna Z4218 (968999281) (2007-04) Ride Mower (Turf Care)

Model: Z4218 (968999281) (2007-04)

Back To Assemblies

Save Part Not Listed?
product name

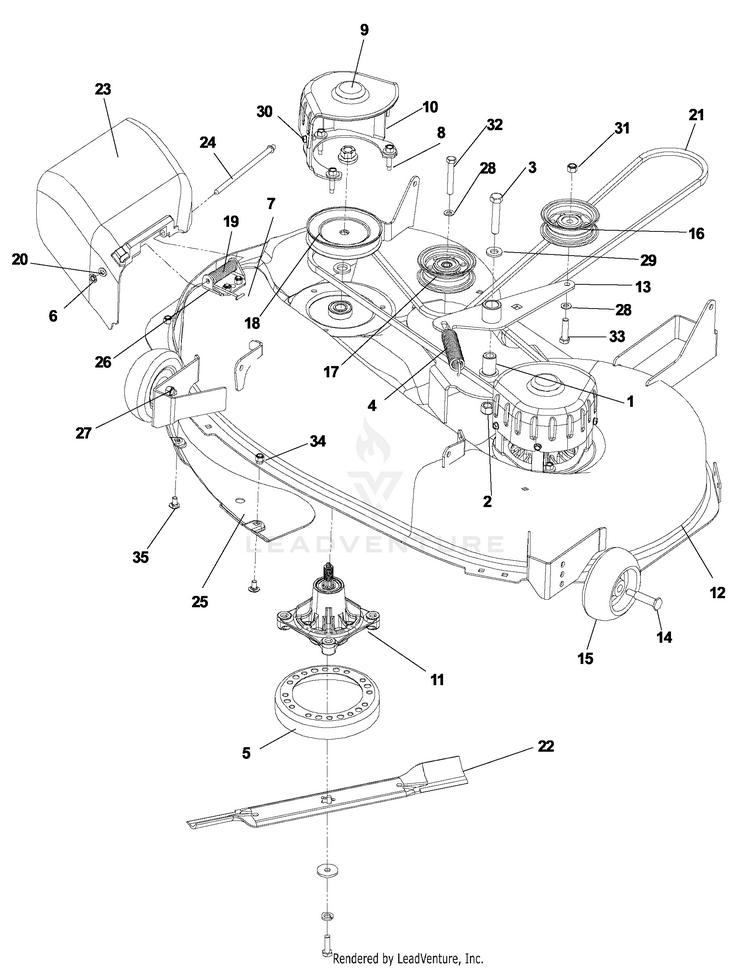

42" Cutting Deck

...
...
1
IDLER SPINDLE HUS-539101231
...
2
GSPW NUTS HUS-596135601
...
3
HCS 1/2C X 2 3/4 HUS-539101332
...
4
SPRING HUS-539101977
...
5
SERVICE KIT MANDREL STRIPPER HUS-531167701
...
6
NUT PUSH M HUS-532110452
...
7
CAP-SLEEVE LT HUS-532105304
...
8
BOLT.HEX.WASHR.HED.313-18X1.19 HUS-584953901
...
9
SPINDLE COVER HUS-539110075
...
10
SPINDLE COVER ANCHOR HUS-539110076
...
11
KIT.MANDREL.GREASEABLE.TALL HUS-587820301
...
12
DECK W/DECALS 42" ORANGE HUS-539110528
...
13
DECK IDLER ARM WELDMENT HUS-539110217
...
14
Bolts HUS-596434402
...
15
WHEEL.GAUGE.STANDARD HUS-532165746
...
16
PULLEY, IDLER, SHORT HUS-539110316
...
17
IDLER PULLEY ASM HUS-539110317
...
18
PULLEY, MANDREL HUS-539110318
...
19
TORSION SPRING HUS-539107609
...
20
WASHER 11/32 X 11/16 X 14 GA T HUS-596204101
...
21
BELT, V MOWER DECK 42" HUS-539110410
...
22
42" MULCH BLADE HUS-594892701
...
23
SHIELD.DEFLECTOR.MOWER.42"BLAC HUS-532403004
...
24
Rods HUS-595297001
...
25
SERVICE KIT BAFFLE.VORTEX BAFF HUS-531167001
...
26
BRKT.DEFLECTOR.38"2005+ HUS-532192557
...
27
GSPW Nuts HUS-596240901
...
28
WASHER PLAIN WASHER 3/8 X 0.08 HUS-596565301
...
29
Washers HUS-595086801
...
30
SCREW 1/4 X 5/8 HUS-539990362
...
31
Nuts HUS-595305901
...
32
Bolts HUS-596434201
...
33
HCS 3/8C X 1 1/2 HUS-539990655
...
34
Nuts HUS-596583702
...
35
BOLT ROUND HEAD SQUARE NECK BO HUS-596039401
