Husqvarna Z4218 (968999281) (2007-04) Ride Mower (Turf Care)

Model: Z4218 (968999281) (2007-04)

Back To Assemblies

Save Part Not Listed?
product name

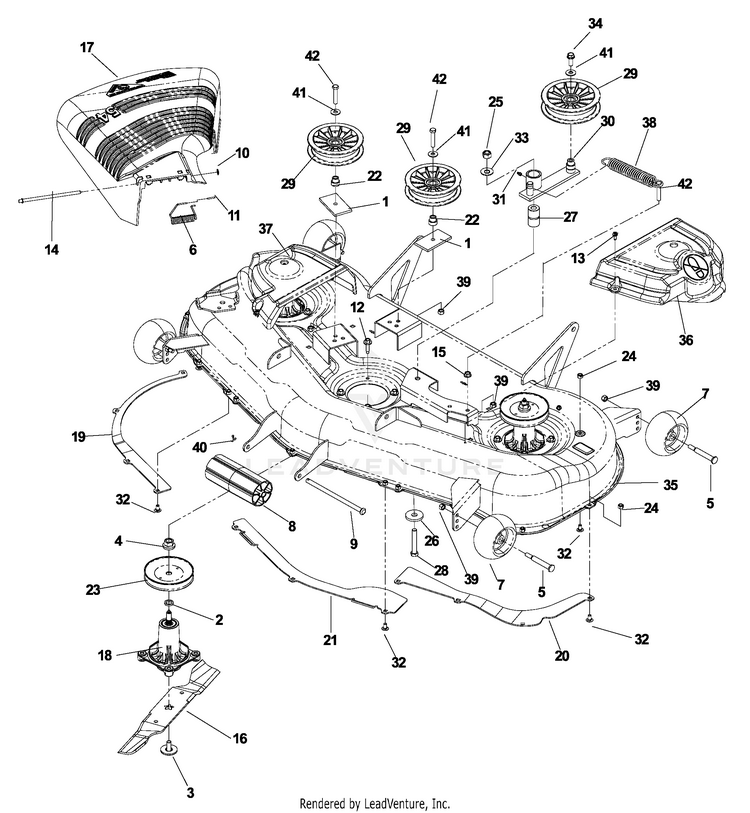

54" Cutting Deck

...
...
1
Washers HUS-596770301
...
2
WASHER.SPACER.MANDREL HUS-532187690
...
3
BOLT.WASHER.ASM.7/16-2 HUS-532193003
...
4
Nuts HUS-596134801
...
5
Bolts HUS-596434404
...
6
TORSION SPRING HUS-539107609
...
7
WHEEL GAGE DONUT HUS-532133957
...
8
NOSE ROLLER 48" HUS-532176066
...
9
Rods HUS-594092501
...
10
NUT PUSH M HUS-532110452
...
11
CAP-SLEEVE LT HUS-532105304
...
12
BOLT.HEX.WASHR.HED.313-18X1.19 HUS-584953901
...
13
SCREW.1/4-20X5/8 HUS-532137729
...
14
Rods HUS-595297001
...
15
Washers HUS-596583501
...
16
54" MULCH BLADE HUS-532187255
...
17
DEFLECTOR.BLACK.54" HUS-532187257
...
18
KIT.MANDREL.GREASEABLE.TALL HUS-587820301
...
19
SERVICE KIT BAFFLE.RIGHT.54" HUS-531168601
...
20
SERVICE KIT BAFFLE.LEFT.54" BA HUS-531168701
...
21
SERVICE KIT BAFFLE BAFFLE CENT HUS-531168801
...
22
Bushings HUS-596790301
...
23
PULLEY MANDREL HUS-532173436
...
24
Nuts HUS-596583702
...
25
GSPW NUTS HUS-596135601
...
26
Washers HUS-596437501
...
27
PIVOT BUSHING HUS-539103427
...
28
HCS 1/2C X 3 1/4 HUS-539103433
...
29
Pulleys HUS-589766102
...
30
IDLER ARM HUS-539112198
...
31
GSPW Zerks HUS-596899901
...
32
BOLT ROUND HEAD SQUARE NECK BO HUS-596039401
...
33
Washers HUS-595316401
...
34
Screws HUS-596583101
...
35
DECK W/DECALS 54" HUS ORANGE HUS-539114046
...
36
BELT SHIELD, LT HUS-539113557
...
37
BELT SHIELD, RT HUS-539113558
...
38
SPRING HUS-539113934
...
39
GSPW Nuts HUS-596240901
...
40
Pins HUS-596029501
...
41
GSPW Washers HUS-596433701
...
42
HCS 3/8C X 2 HUS-539990588
...
xx
BELT, DECK NOT SHOWN HUS-510201101
