Husqvarna Z142 Zero Turn Mower

Model: Z142

Back To Assemblies

Save Part Not Listed?

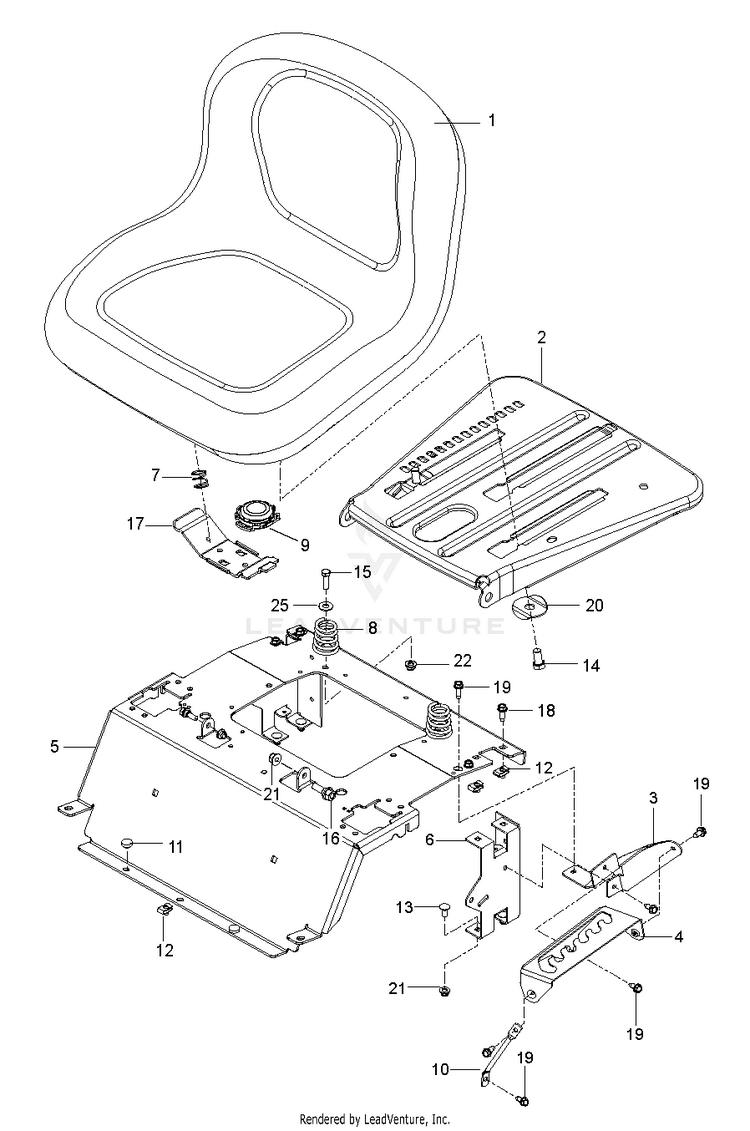

product name

SEAT

...
...
22
GSPW Nuts HUS-521996502
...
2
KIT.PLATE.SEAT HUS-596768801
...
10
SUPPORT.LEG.DECK.LIFT HUS-586428601
...
xx
SEAT KING 18" WOOD BTM, ARM HUS-590873402
...
16
Bolts HUS-596240701
...
6
SUPPORT REAR SEAT BLACK HUS-580308202
...
14
BOLT For 96792480100 HUS-874760612
...
11
GROMMET.BUMPER HUS-585989301
...
17
Handles HUS-595088102
...
7
SPRING.LATCH.SEAT.TEX For 96792480100 HUS-532198200
...
13
GSPW Bolts HUS-595901601
...
19
BOLT.5/16HEX.WHS.HD HUS-817000510
...
5
PLATE SEAT SUPPORT; RZ ORANGE For 96792480100 HUS-589761211
...
21
NUT HEXAGON FLANGE 5/16-18 ST HUS-594944401
...
7
SPRING.LATCH.SEAT.TEX For 96792460100 HUS-532198200
...
8
SPRING.COMPRESS.SEAT.TAPERED HUS-589483501
...
14
Screws For 96792460100 HUS-510422702
...
1
SEAT.TH150.MS498.GRY.HUSQ.TEX HUS-532439822
...
12
U-CLIP 5/16-18 NUT RETAINER HUS-539104763
...
18
SCREW HEXAGON HEAD SCREW 5/16- HUS-596030501
...
4
PLATE.DECK.LIFT.X431 HUS-586221202
...
5
PLATE SEAT SUPPORT; RZ ORANGE For 96792460100 HUS-589761211
...
20
WASHER.WINGED.3/8ID.1.5OD HUS-501051801
...
9
SWITCH.SEAT.DELTA.OPC. HUS-532401545
...
3
PLATE.SUPPORT.DECK.LIFT.X431 HUS-586220802
...
25
GSPW Washers HUS-596433701
...
15
BOLT HUS-874760620
