Husqvarna Z142 Zero Turn Mower

Model: Z142

Back To Assemblies

Save Part Not Listed?
product name

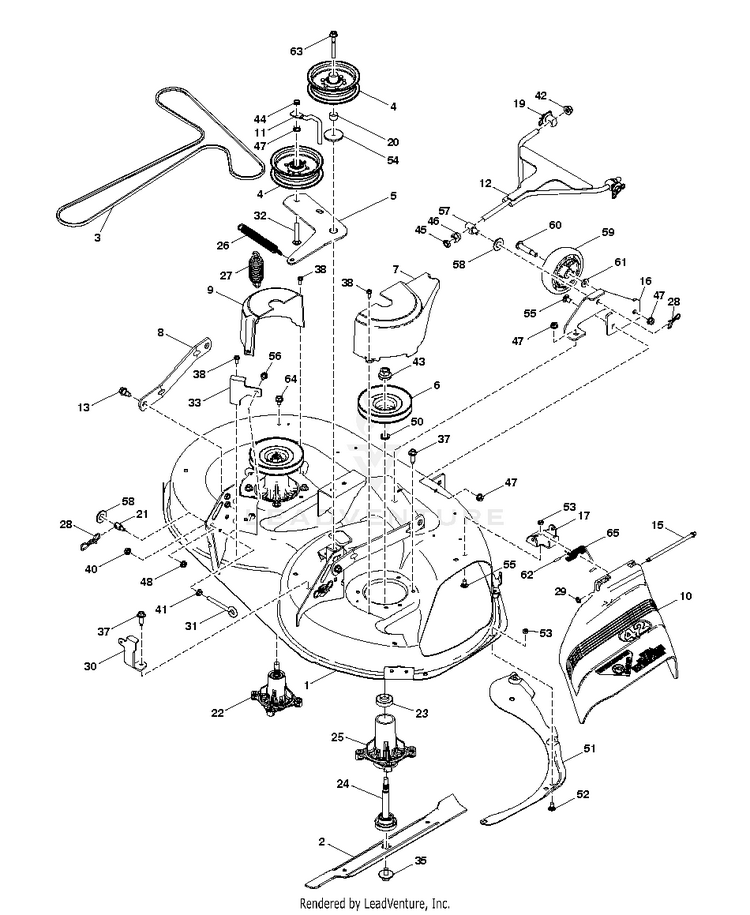

MOWER DECK / CUTTING DECK

...
...
16
BRACKET.FRONT.SUSPENSION.X668 HUS-594114403
...
44
Nuts HUS-596322601
...
10
SHIELD.DEFLECTOR.MOWER.42"BLAC HUS-532403004
...
17
BRKT.DEFLECTOR.38"2005+ HUS-532192557
...
3
BELT 42 STAMPED RZ DECK DRIVE HUS-596014801
...
48
GSPW Nuts HUS-596135701
...
43
Nuts HUS-596134801
...
4
PULLEY.IDLER.2006 HUS-532196106
...
40
GSPW Hardware HUS-596039201
...
53
Hardware HUS-596040501
...
41
NUT HEXAGON FLANGE 5/16-18 ST HUS-594944401
...
61
GSPH For 96792480100 HUS-596134901
...
56
SCREW, 3/8-16X3/4 HUS-817000612
...
61
GSPH For 96792460100 HUS-596134901
...
xx
COUPLING.QUICK CONNECT HUS-532416405
...
33
BRACKET 42 STAMPED RZ LH REAR Fits 96792480100 HUS-597452703
...
27
Springs HUS-596482001
...
13
BOLT.SHOULDER HUS-532196539
...
58
Washers HUS-596320001
...
52
Bolts HUS-596136401
...
26
SPRING.MOWER.DRIVE.ELECTRIC HUS-532197251
...
5
ARM 42 STAMPED RZ CLUTCHING AR HUS-594114602
...
33
BRCKT.REAR.DECK.UPSTOP.LH.X668 Fits 96792460100, 96792480100 HUS-596017003
...
15
Rods HUS-595297001
...
9
COVER 42 STAMPED RZ LH MANDREL GREY HUS-594114001
...
29
NUT PUSH M HUS-532110452
...
54
SPACER.RETAINER.MOWER HUS-532165723
...
31
GSPW Bolts HUS-596240801
...
50
WASHER.SPACER.MANDREL HUS-532187690
...
60
Bolts HUS-596434402
...
63
BOLT HUS-596564005
...
35
BOLT.WASHER.ASM.7/16-2 HUS-532193003
...
64
SCREW 3/8-16X1/2 HUS-817670608
...
8
LINK FIXED MOWER DRAWBAR BLACK HUS-536050602
...
28
PIN.COTTER.5/16.BOW TI HUS-532194208
...
25
HOUSING, MANDREL 48" HUS-532174358
...
38
SCREW.1/4-20X5/8 HUS-532137729
...
20
Spacers HUS-596014701
...
37
BOLT.HEX.WASHR.HED.313-18X1.19 HUS-584953901
...
47
NUT.HEX.FLANGE.3/8-16.LOCKNUT HUS-532409149
...
45
NUT.ASF.HEX.7/16 HUS-873610700
...
6
PULLEY.MANDREL.46" HUS-588586601
...
19
Bushings For 96792480100 HUS-593842101
...
46
NUT.LIFT LNK.7/16-2 HUS-589464902
...
11
KEEPER.BELT.IDLER.54"T HUS-532198468
...
62
CAP-SLEEVE LT HUS-532105304
...
32
Bolts HUS-596337801
...
55
Bolts HUS-596136001
...
19
NEEDS DESCRIPTION For 96792460100 HUS-532185263
...
22
MANDREL.W/SPCR.BRG.SHRT.NONRVL HUS-587125201
...
21
STUD.W/"D"ANTI-ROTATION HUS-593824001
...
65
SPRING.TORSION.DEFLECT HUS-532197026
...
30
BRACKET 42 STAMPED RZ RH REAR Fits 96792480100 HUS-597452803
...
12
LINK.RZ.FRONT.WELDMENT.E-DIP HUS-588610902
...
59
WHEEL.GAUGE.RALLY.NARROW HUS-589527401
...
30
BRCKT.REAR.DECK.UPSTOP.RH.X668 Fits 96792460100, 96792480100 HUS-596016903
...
24
MANDREL.W/SPCR.BRG.SHRT.NONRVL HUS-587125201
...
7
COVER 42 STAMPED RZ RH MANDREL HUS-594114101
...
57
SWIVEL TRUNION CLEAR ZINC HUS-581514302
...
2
42" HI-LIFT BLADE HUS-532138971
...
51
SERVICE KIT BAFFLE.VORTEX BAFF HUS-531167001
...
1
Decks HUS-598602801
...
42
Nuts HUS-595901901
...
23
BEARING.MANDREL.TOP.EXTENDED HUS-585323901
