product name

Husqvarna Z142 Zero Turn Mower

Model: Z142

Back To Assemblies

Save Part Not Listed?
product name

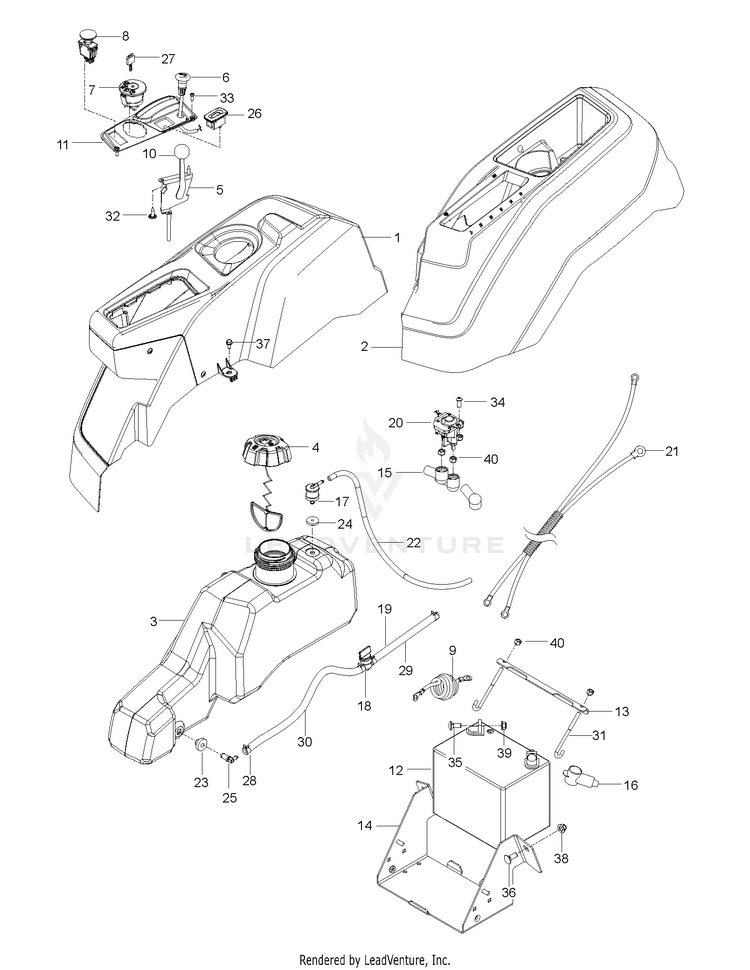

IGNITION SYSTEM

...
...
12
BATTERY.DRY.30.AMP HUS-532123899
...
25
STEM FUEL TANK HUS-532139277
...
28
HOSE CLAMP HUS-532123487
...
4
CAP ASSY FUEL 3" GRAY Fits 2.75" filler neck HUS-585124801
...
17
VALVE.FUEL.CHECK HUS-576618101
...
8
SWITCH.PTO.8TERMINAL.STD.BLK HUS-582107601
...
38
GSPW Nuts HUS-521996502
...
21
HARNESS.BTTRY.CABLE.RZ.REFRESH HUS-587198601
...
27
KEY.CHAIN.BLISTER.PACK.GEN.INT HUS-532411935
...
29
HOSE.1/4".LOW.PERM.FUEL.LN.3" HUS-587044803
...
xx
HARNESS.MAIN.RZ.WITHOUT.BRAKE NOT SHOWN HUS-586337301
...
34
Screws HUS-596789701
...
11
Panel Controls HUS-585522702
...
37
Screws HUS-596437001
...
10
KNOB.ROUND.BALL.BLACK HUS-539133049
...
36
Bolts HUS-595316801
...
7
IGNITION SWITCH HUS-532175566
...
40
NUT FLG, NYLOCK, 1/4-20 GR G C HUS-582478602
...
5
CABLE.THROTTLE.20" HUS-585974901
...
22
HOSE 3/16" VAPOR LINE 29" LENG HUS-587044529
...
20
Solenoids HUS-582042802
...
2
CONSOLE ASM HUS-586621202
...
3
FUEL TANK, RZ, 2.25" NECK, 202 Fits 2.75" filler neck HUS-599306304
...
6
CHOKE.PUSH-IN.STYLE.57" HUS-586881502
...
32
SCREW.PAN.HEAD.#10 HUS-532141841
...
26
PLUG.TEX.DASH.SVC.MINDER.GREY HUS-532439976
...
9
CABLE BATTERY POS RZ HUS-586108201
...
24
GROMMET.CHECK.FUEL HUS-584648201
...
23
BUSHING OUTLET T HUS-532003645
...
14
BOX.PNT.BATTERY.RZ.EDIP HUS-582609602
...
19
FUEL.HOSE.SHUT.OFF.ASM.10".3" HUS-586123904
...
39
NUT HEXAGON FLANGE 5/16-18 ST HUS-594944401
...
15
COVER.TERMINAL.RED HUS-532154336
...
4
FUEL CAP Fits 2.00" filler neck HUS-529989701
...
33
SCREW 6-19X.437 HUS-545227101
...
35
GSPW Bolts HUS-595901601
...
30
HOSE.1/4".LOW.PERM.FUEL.LN.10" HUS-587044810
...
16
INSULATOR HUS-539102759
...
18
FUEL VALVE HUS-539916325
...
1
CONSOLE.ASSY.RZ.HUSQ.RH HUS-598602602
...
xx
TIE WRAP, 8-3/8", W/CLIP NOT SHOWN HUS-505280001
...
31
HOOK.J.BATTERY HUS-588839401
...
13
BRACKET, BATTERY MOUNT HUS-510030001
