Husqvarna Z142 Zero Turn Mower

Model: Z142

Back To Assemblies

Save Part Not Listed?
product name

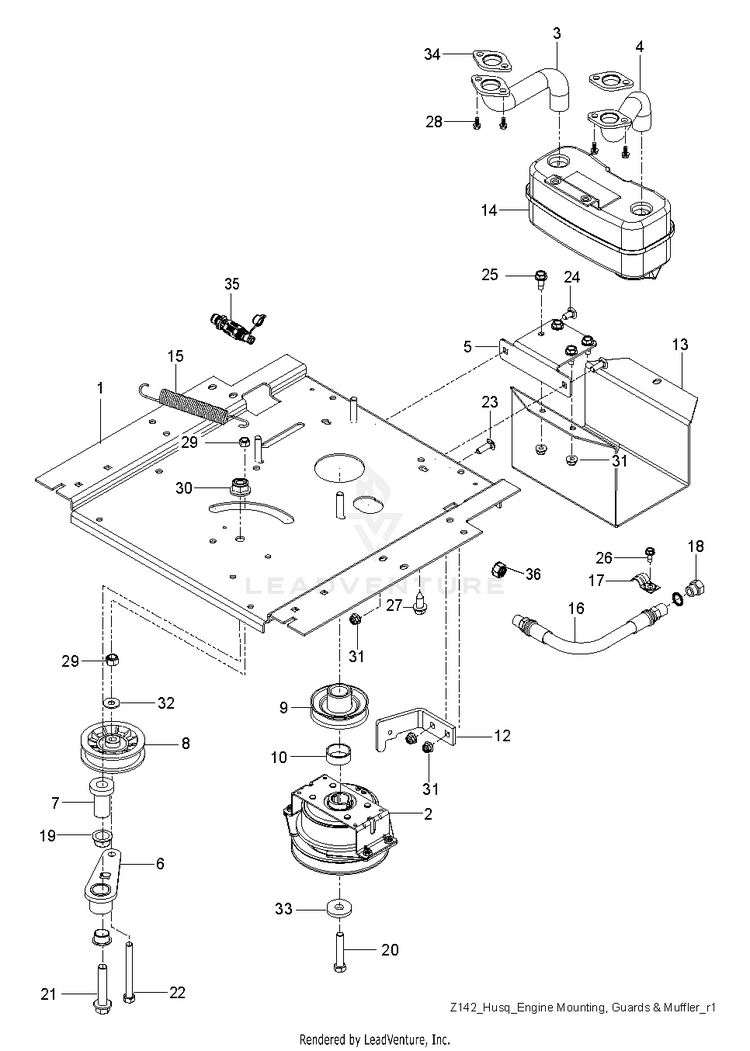

ENGINE MOUNTING, GUARDS & MUFFLER

...
...
26
Screws HUS-596637301
...
32
GSPH HUS-596134901
...
28
Screws HUS-596134202
...
22
Screws HUS-596433901
...
36
NUT HEXAGON WITH FLANGE, SERRA For 96792460100 HUS-593356401
...
21
Bolts HUS-582539502
...
33
WASHER HUS-532126197
...
19
BEARING.FLANGED.PLASTIC.3/4ID HUS-501603701
...
2
CLUTCH.105.FT-LBS HUS-585521101
...
27
SCREW 3/8-16X1 HUS-817120616
...
30
NUT 1/2-13 HEX FLANGE NYLOK CL HUS-521991102
...
29
GSPW Nuts HUS-596240901
...
7
SPINDLE.IDLER HUS-582538902
...
8
PULLEY IDLER, BACKSIDE 3 INCH HUS-531350601
...
17
CLAMP HUS-539101363
...
24
GSPW Bolts HUS-595901601
...
15
SPRING BELT TENSIONER BLACK HUS-547878302
...
14
MUFFLER ASM TWIN HUS-539131604
...
31
NUT HEXAGON FLANGE 5/16-18 ST HUS-594944401
...
5
BRACKET MUFFLER MS431BLK HUS-581886702
...
12
STOP, CLUTCH, BLACK HUS-510246002
...
20
CLUTCH BOLT7/16-20X3.5 GR524HR For 96792480100 HUS-581332804
...
18
PLUG OIL DRAIN HUS-585807101
...
16
HOSE.ASSEMBLY.OIL.DRAIN HUS-584825501
...
13
GUARD.MUFFLER.WO.TOW.HITCHX431 HUS-587451202
...
4
PIPE.EXHAUST.LH.CV18/20 HUS-583954501
...
6
ARM.IDLER HUS-583593901
...
3
PIPE.EXHAUST.RH.CV18/20 HUS-583954801
...
25
SCREW HEXAGON HEAD SCREW 5/16- HUS-596030501
...
34
GASKET.EXHAUST.KOHL.CV18-CV26 HUS-532186054
...
xx
Engine, Kohler KT6600 17 HP. For engine replacement parts, see a Kohler dealer. HUS-000000000
...
23
Bolts HUS-595901501
...
9
PULLEY.ENGINE HUS-587537401
...
35
VALUE.OIL.DRAIN For 96792460100 HUS-532428287
...
10
Spacers HUS-596401101
...
1
PLATE ENGINE; RZ, 23IN BLACK HUS-593898602
...
20
Bolts For 96792460100 HUS-581332806
