Husqvarna Z142 Zero Turn Mower

Model: Z142

Back To Assemblies

Save Part Not Listed?
product name

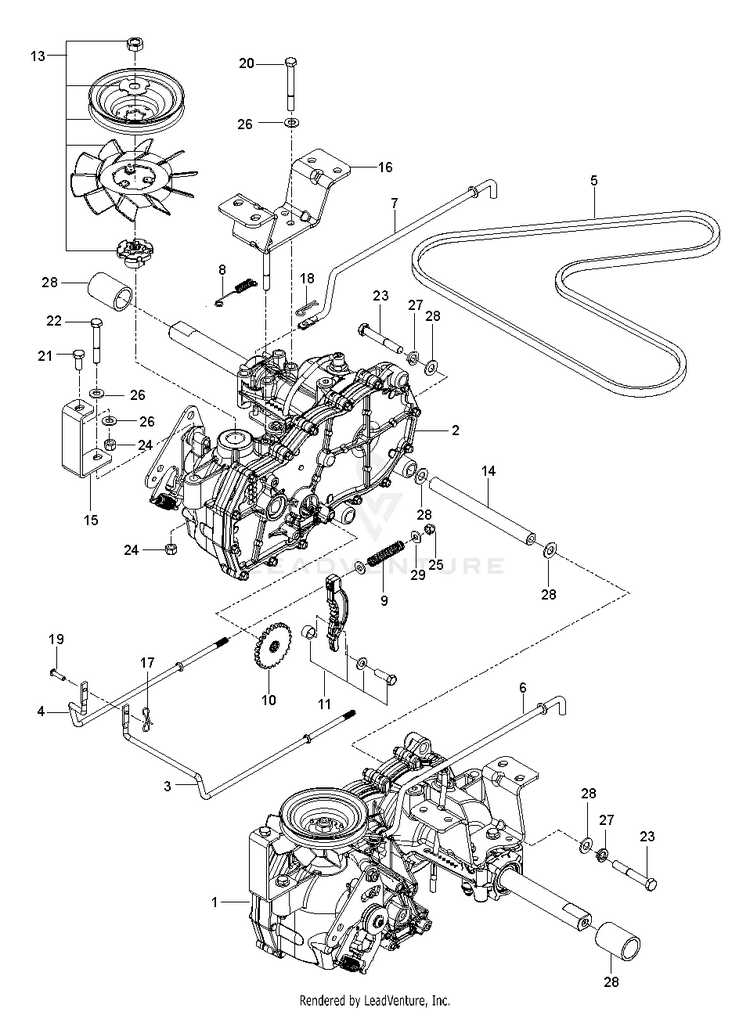

HYDRAULIC PUMP - MOTOR

...
...
9
Springs HUS-596299801
...
19
PIN.CLEVIS.3/16X.475 HUS-587115301
...
27
Washers HUS-596238701
...
3
Links HUS-596930401
...
8
SPRING.ROD.BYPASS.EZT HUS-586665101
...
18
Pins HUS-596580601
...
1
TRANSMISSION EZT; DD; LONG; LE HUS-596247401
...
14
Spacers HUS-593852803
...
7
Rods HUS-585474502
...
11
HG_KIT BRAKE ARM (EZT) HUS-539120079
...
17
PIN COTTER;LOCKING;BOWTIE;1IN HUS-587225301
...
24
Hardware HUS-596040501
...
20
Bolts HUS-596218601
...
2
TRANSMISSION EZT; DD; LONG; RI HUS-596247402
...
26
WASHER 11/32 X 11/16 X 14 GA T HUS-596204101
...
28
WASHER PLAIN WASHER 3/8 X 0.08 HUS-596565301
...
16
BRACKET.EZT.MOUNT.REAR.PNTX431 HUS-580806602
...
22
Bolts HUS-596434801
...
13
KIT FAN/PULLEY 72137 HUS-501403602
...
25
NUT FLG, NYLOCK, 1/4-20 GR G C HUS-582478602
...
29
Washers HUS-596582301
...
21
SCREW HEXAGON HEAD SCREW 5/16- HUS-596030501
...
10
HG_DISC COG BRAKE 51635 HUS-539120080
...
15
SUPPORT.FRONT.TRANS.PNTX431 HUS-580806502
...
5
BELT, HYDRO PUMP HUS-539110411
...
4
Links HUS-596930701
...
23
Bolts HUS-596434201
...
6
Rods HUS-585474402
