Husqvarna Z 4818 BIA (2004-09) Ride Mower (Turf Care)

Model: Z 4818 BIA (2004-09)

Back To Assemblies

Save Part Not Listed?
product name

Electrical Components

...
...
539101080
SWITCH, INTERLOCK HUS-539101080
...
539101714
SOLENOID HUS-539101714
...
539101768
SWITCH.PTO.8TERMINAL.STD.BLK HUS-582107601
...
539101771
FUSE, 7.5 AMP 32 VOLT ATO HUS-539101771
...
539102086
FUSE, 20 AMP 32 VOLT ATO HUS-539102086
...
539102463
BATTERY, 12 V 300 AMP DRY HUS-579411601
...
539102540
HOUR METER HUS-576179401
...
539102759
INSULATOR HUS-539102759
...
539102914
RELAY HUS-539102914
...
539105637
CLUTCH HARNESS HUS-539105637
...
539107516
KOHLER PIGTAIL-CV490S HUS-539107516
...
539107523
SEAT SWITCH HUS-539107523
...
539107541
IGNITION SWITCH HUS-532175566
...
539107544
KEY MLD GEN DELTA HUS-532140401
...
539107615
BATTERY CABLE, NEGATIVE HUS-539110068
...
539107616
BATTERY CABLE-POS HUS-539107616
...
539109636
MAIN WIRING HARNESS HUS-539109636

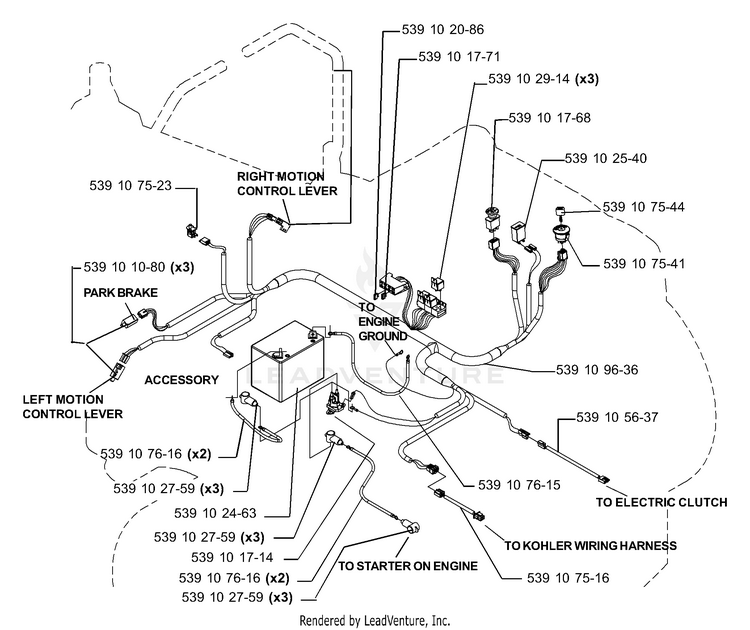

Schematic Image Zoomed
